UNI-T UT251A High Sensitivity Leakage Current Clamp Meters
Price 4,841.49 EG
In stock
About this item

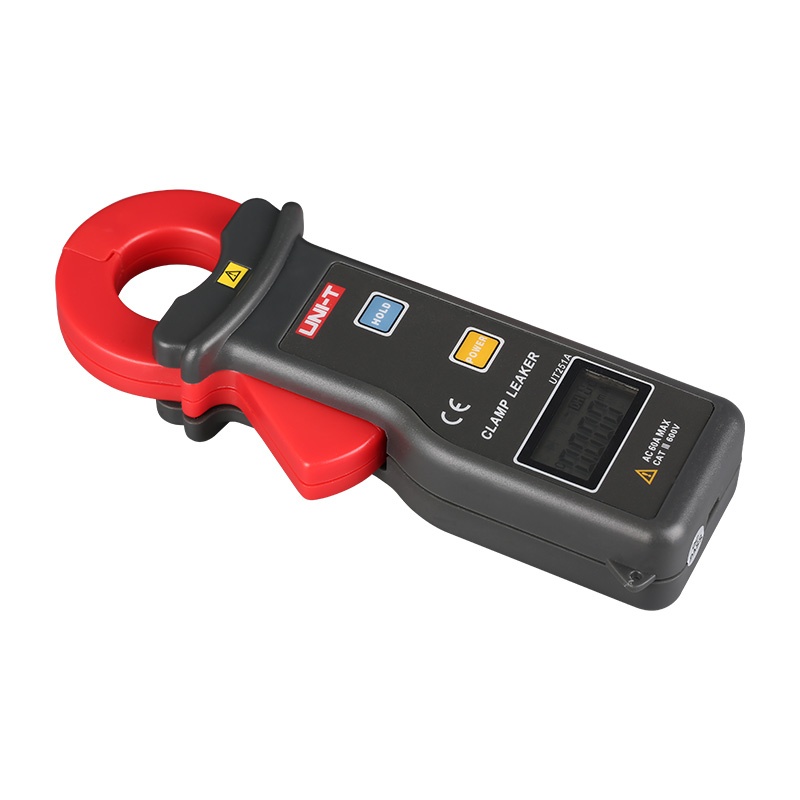

UNI-T UT251A is a compact, high-sensitivity clamp meter for detecting microamp-level leakage currents, ideal for electrical safety and maintenance tasks.
Total price 4,841.49 EG
Product Features
- 4‑digit LCD display.
- Overload protection with “OL” indication.
- Auto‑range selection.
- Auto‑power‑off after 5 minutes of inactivity.
- RS‑232 interface for data logging.
- Low‑battery indication (alerts at ≤ 7.2 V).
- Peak‑hold function to capture transient spikes.
- Over‑range display (“OL”).
- Data‑hold to freeze readings on screen.
- Test modes: Clamp CT mode and integral (leakage integration) mode.
Product Applications
- Power Equipment Maintenance.
- Electric Equipment Testing.
- Cable Tracing and Fault Detection.
- Industrial and Residential Safety Checks.
- Environmental Electrical Monitoring.
- Electric Power Distribution.
Specifications
| Type | Value |
|---|---|
| Leakage Current Ranges | 0.001 mA–60 A 60 A–199.9 A 200 A–300 A 300 A–600 A |
| Resolution | 1 µA (0.001 mA–60 A) 0.1 mA (60 A–199.9 A) 1 mA (200 A–600 A |
| Accuracy | ±(1.5 %+5) (≤ 199.9 A) ±(2 %+5) (200 A–300 A) ±(3 %+5) (300 A–600 A) |
| Voltage (Freq.) | 0 V–600 V (50/60 Hz) |
| Display | 4‑digit LCD “OL” overload indication |
| Auto‑Power‑Off | After 5 min inactivity |
