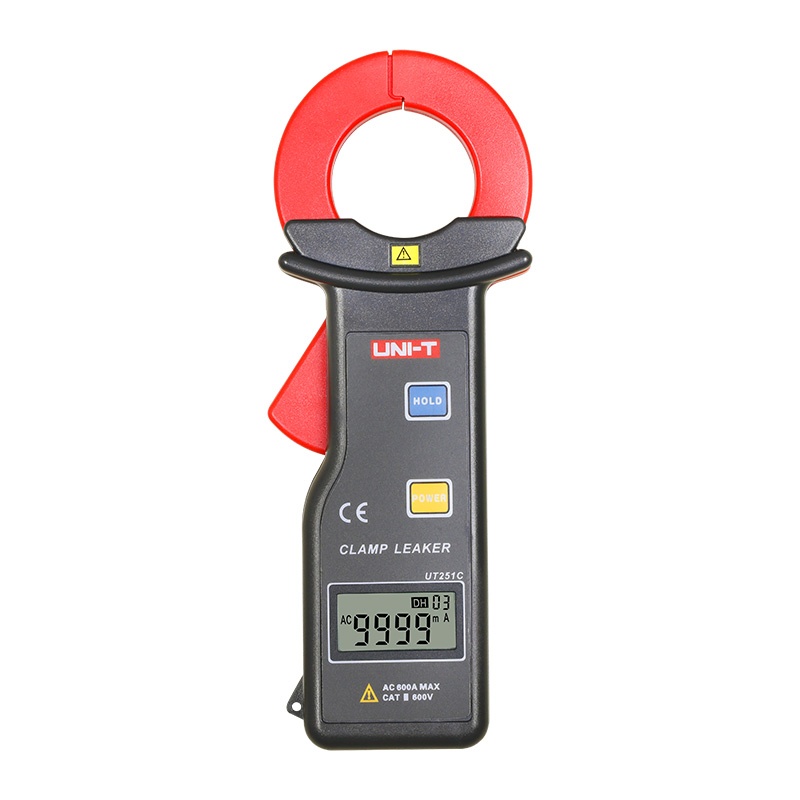

UNI-T UT251C High Sensitivity Leakage Current Clamp Meters
Price 5,011.89 EG
In stock
About this item
UNI-T UT251C is a high-sensitivity clamp meter for detecting microamp-level leakage currents with data logging, RS-232, and reliable field performance.
Total price 5,011.89 EG
Product Features
- 4‑digit LCD display
- Overload protection with “OL” indication
- Auto‑range selection
- Auto‑power‑off after 5 minutes of inactivity
- RS‑232 interface for direct data logging
- Low‑battery indication (battery OK down to 7.2 V)
- Peak‑hold function to capture transient spikes
- Over‑range display (“OL”)
- Data‑hold to freeze readings on‑screen
- Test modes: clamp‑CT mode and integrated leakage‑accumulation mode
- Built‑in data storage (up to 99 readings)
Product Applications
- Electrical Equipment Inspection.
- Power Equipment Maintenance.
- Electric Safety Testing.
- Cable and Conductor Monitoring.
- Leakage Current Analysis in Power Grids.
- Preventive Maintenance Programs.
Specifications
| Type | Value |
|---|---|
| Leakage Current Ranges | 0.001 mA–60 A ∙ 60 A–199.9 A ∙ 200 A–300 A ∙ 300 A–600 A |
| Resolution | 1 mA |
| Accuracy by Range | ±(1.5 % + 5) (0.001 mA–60 A) ±(2 % + 5) (60 A–199.9 A) ±(3 % + 5) (200 A–300 A) ±(4 % + 5) (300 A–600 A) |
| Voltage (Frequency | 0 V–600 V (50 Hz/60 Hz) |
| Safety Category Rating | CAT III 600 V |
| Clamp Jaw Opening | 35 × 40 mm |
| Data Storage Capacity | 99 readings |
| Display | 4‑digit LCD with “OL” overload indication |
| Auto‑Power‑Off | After 5 minutes of inactivity |
| Interface | RS‑232 for direct data logging |
| Power Supply | 1 × 9V battery (6F22) |
