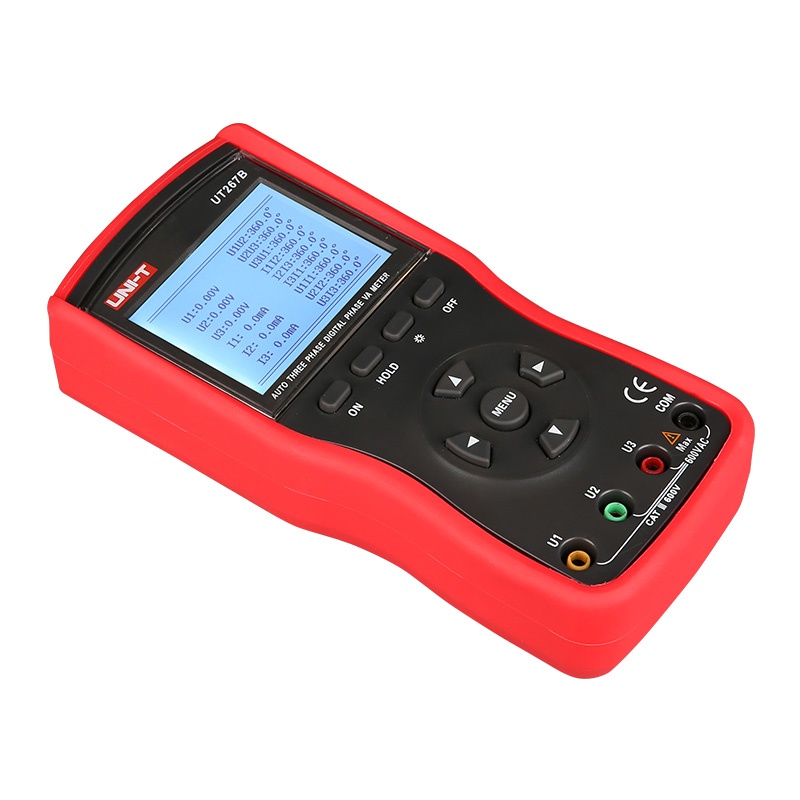

UNI-T UT267B Intelligent 3 Phase Voltammeter
Price 27,778.75 EG
In stock
About this item
UNI-T UT267B is a smart 3-phase voltammeter for accurate power, phase, and current analysis with real-time display, data storage, and PC connectivity.
Total price 27,778.75 EG
Product Features
- Automatic range selection (auto range).
- Simultaneous 3-phase measurement.
- Vector diagram display on LCD.
- 240×160 dot LCD display with backlight.
- Data hold function.
- Auto power off (after ~15 minutes of inactivity).
- Low battery indication.
- Sampling rate: 0.5 times per second.
- RS232 interface for PC connectivity and data transmission.
- Data storage capacity for up to 500 sets.
- Compact and lightweight design with anti-vibration insulation jacket.
Product Applications
- Three-phase power measurement.
- Phase angle and sequence analysis.
- Transformer wiring verification.
- Inductive and capacitive circuit identification.
- Secondary circuit and bus differential protection testing.
- CT (Current Transformer) phase difference testing.
- Kilowatt-hour meter wiring check.
- Power distribution inspection.
- Relay protection and differential inspection.
- Startup testing and power transformation check.
- Electrical training and skill competitions.
Specifications
| Type | Value |
|---|---|
| Voltage Measurement | AC 0.00 V ~ 600 V Resolution: 0.01 V Accuracy: ±(1.5% + 3 digits) |
| Current Measurement | AC 0.0 mA ~ 20.0 A Resolution: 0.1 mA Accuracy: ±(1.5% + 3 digits) |
| Phase Angle | 0.0° ~ 360.0° Resolution: 0.1° Accuracy: ±1° |
| Frequency | 45.00 Hz ~ 65.00 Hz Resolution: 0.01 Hz Accuracy: ±(2% + 3 digits) |
| Active Power | 0.0 W ~ 12 kW Resolution: 0.1 W Accuracy: ±(3% + 3 digits) |
| Reactive Power | 0.0 VAR ~ 12 kVAR Resolution: 0.1 VAR Accuracy: ±(3% + 3 digits) |
| Apparent Power | 0.0 VA ~ 12 kVA Resolution: 0.1 VA Accuracy: ±(3% + 3 digits) |
| Power Factor | Range: -1 ~ +1 Resolution: 0.001 Accuracy: ±0.03 |
| Safety Ratings | IEC61010-1 CAT II 600V, CAT III 300V, IEC61010-031, IEC61326 |
