UNI-T UT253A Large Jaw Leakage Current Clamp Meter
Price 15,620.00 EG
In stock
About this item

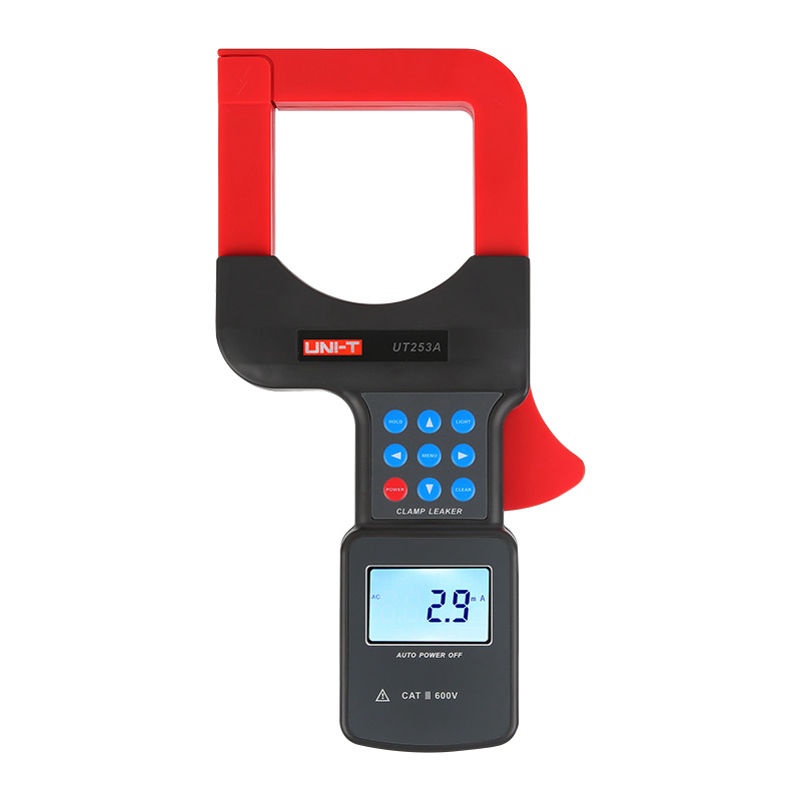

The UNI-T UT253A is a high-precision clamp meter with large jaws for measuring leakage current and voltage in large cables and grounding systems.
Total price 15,620.00 EG
Product Features
- Auto‑range measurement for hassle‑free operation
- RS‑232 interface for data communication
- LCD backlight for visibility in low‑light environments
- Data hold function to freeze readings on screen
- Over‑range display to alert when measurements exceed range
- Auto power‑off to conserve battery life
- Low battery indication to warn of waning power
Product Applications
- Measuring leakage current in high-capacity industrial cables.
- Monitoring three-phase voltage systems.
- Testing electrical grounding systems.
- Routine maintenance and safety inspections.
- Troubleshooting in large-scale electrical systems.
Specifications
| Type | Value |
|---|---|
| Leakage Current Range | 0 mA – 300 A / 300 A – 1200 A |
| Accuracy | ±(1.5% + 3) for 0–300 A±(2% + 3) for 300–1200 A |
| Resolution | 0.01 mA |
| Clamp Jaw Size | 80 mm × 80 mm |
| Max Cable Size | Up to 96 mm diameteror 160 mm × 4 mm flat-steel |
| Voltage Measurement | Three-phase measurement supported |
| Safety Category Rating | CAT III 600 V |
| Display | 128 × 64 dots LCD with backlight |
| Data Logging | Supported |
| Test Mode | Clamp CT integration |
| Interface | USB port, RS-232 support |
