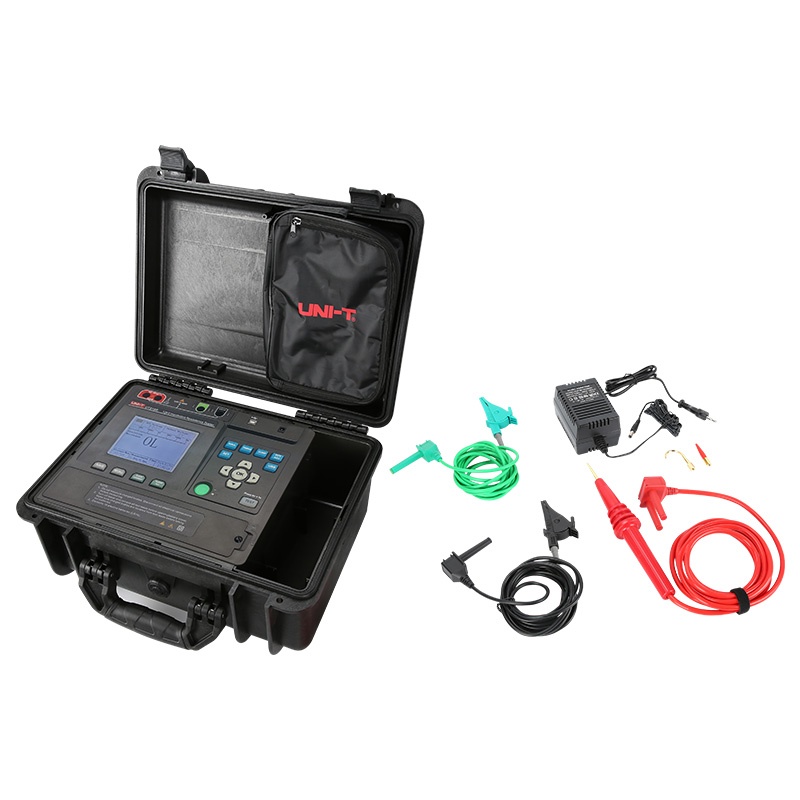

UNI-T UT516B Insulation Resistance Tester
Price 49,700.00 EG
In stock
About this item
The UNI-T UT516B is a high-voltage insulation resistance tester designed for accurate testing, data storage, and diagnostics in industrial environments.
Total price 49,700.00 EG
Product Features
- AC/DC Voltage Measurement Capability: Allows verification of both alternating and direct voltage levels during insulation testing.
- USB Data Transfer Interface: Enables seamless offloading of stored test results to a PC or compatible device for further analysis and record-keeping.
- Low-Battery Indication: Built-in warning alerts the user when battery levels are insufficient to guarantee accurate readings, preventing misleading measurements.
- On-Board Data Storage: Capable of storing up to 999 individual test records internally, facilitating trend analysis and periodic maintenance tracking without needing paper logs.
- Polarization Index (PI) Measurement: Automatically computes and displays the polarization index, aiding in the assessment of insulation aging and moisture content over time.
- Dielectric Absorption Ratio (DAR) Functionality: Calculates DAR values to help distinguish between surface leakage and bulk insulation deterioration.
- Over-Range Alarm: Provides audible/visual notification if the measured resistance exceeds the instrument’s measurement range, ensuring the user is immediately aware of out-of-range conditions.
- Maximum (MAX) Display Hold: Captures and holds the peak reading during a test, allowing the user to review the highest insulation resistance value without needing to watch the display continuously.
- LCD Backlight: Illuminates the display for easy reading in low-light or dimly lit environments, improving usability on field sites.
- Comparative Measurement Mode: Lets users compare successive readings against a reference value, simplifying the detection of insulation degradation trends.
- Adjustable Measurement Time Selection: Offers configurable test durations (e.g., 1 s, 10 s, 60 s) so users can tailor the measurement period according to different insulation diagnostic standards or workflows.
Product Applications
- Electrical Equipment Maintenance.
- Power Generation and Distribution.
- Industrial Equipment Testing.
- Routine Preventive Maintenance.
- High-Voltage Lab Testing.
- Commissioning and Quality Control.
- Railways and Transportation Systems.
- Telecommunications Infrastructure.
Specifications
| Type | Value |
|---|---|
| Test Voltages | 500 V, 1 000 V, 2 500 V, 5 000 V, 10 000 V, 12 000 V |
| Output Voltage Accuracy | 500 V–5 000 V: 0% to +10%; 10 000 V–12 000 V: –5% to +10% |
| Load Current | 500 V–5 000 V: 1 mA ±(0–20%); 10 000 V–12 000 V: 0.15–1.2 mA ±(0–20%) |
| Insulation Resistance Ranges | 500 V: 0.5 MΩ–500 GΩ 1 000 V: 1 MΩ–1 000 GΩ 2 500 V: 2.5 MΩ–2.5 TΩ 5 000 V: 5 MΩ–5.0 TΩ 10 000 V: 10 MΩ–10 TΩ 12 000 V: 12 MΩ–10 TΩ |
| Accuracy (per range) | Up to 99.9 GΩ: ±(5–15%) Above 100 GΩ: ±(10–20%) Highest ranges: for reference only |
| DC Voltage Measurement | 30 V – 1 000 V, ±(3% + 5 digits) |
| AC Voltage Measurement | 30 V – 750 V (50–60 Hz), ±(3% + 5 digits) |
| DAR Range | 0.00 – 999 |
| PI Range | 0.00 – 999 |
| Data Storage | 999 sets of test results |
| USB Interface: | Yes, for PC connection and data transfer |
| LCD Backlight | Yes, adjustable (0% – 100%) |
| Low Battery Indicator | Yes |
| Safety Compliance | IEC 61010-1, CAT IV 600 V |
