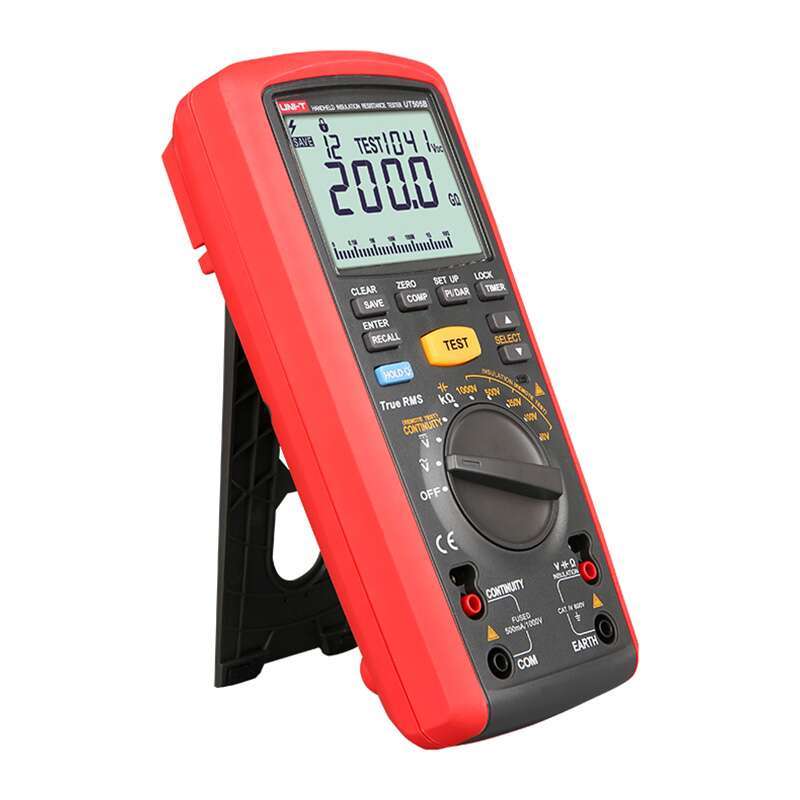

UNI-T UT505B Handheld Insulation Resistance Tester
Price 10,138.09 EG
In stock
About this item
UT505 series handheld true RMS insulation resistance testers combine features of a digital multimeter and insulation resistance tester.
Total price 10,138.09 EG
Product Features
- Certifications: CE, UKCA, ETL
- Auto power off
- LCD backlight
- High voltage output alarm
- 99-group data storage
- Data hold
- Meets IEC 61557: 61557-1:2007; 61557-2:2007; 61557-4:2007
Product Applications
- DC voltage measurement
- AC voltage measurement
- Insulation resistance measurement
- Motor wire and case insulation measurement
Specifications
| Type | Value |
|---|---|
| Leakage current (A) | 10~2000μA ±(10%+3) |
| Low resistance (Ω) | 0.01Ω~100Ω (about 5V/>200mA/20mA optional) ±(1.5%+3) |
| General resistance (Ω) | 0.01kΩ~10MΩ ±(3%+3) |
| DC voltage (V) | 0V~600V ±(2%+3) |
| AC voltage (V) | 0V~600V ±(1.5%+5) |
| Frequency (Hz) | 45~1kHz ±(0.1%+3) |
| Capacitance (F) | 100pF~500μF ±(5%+5) |
