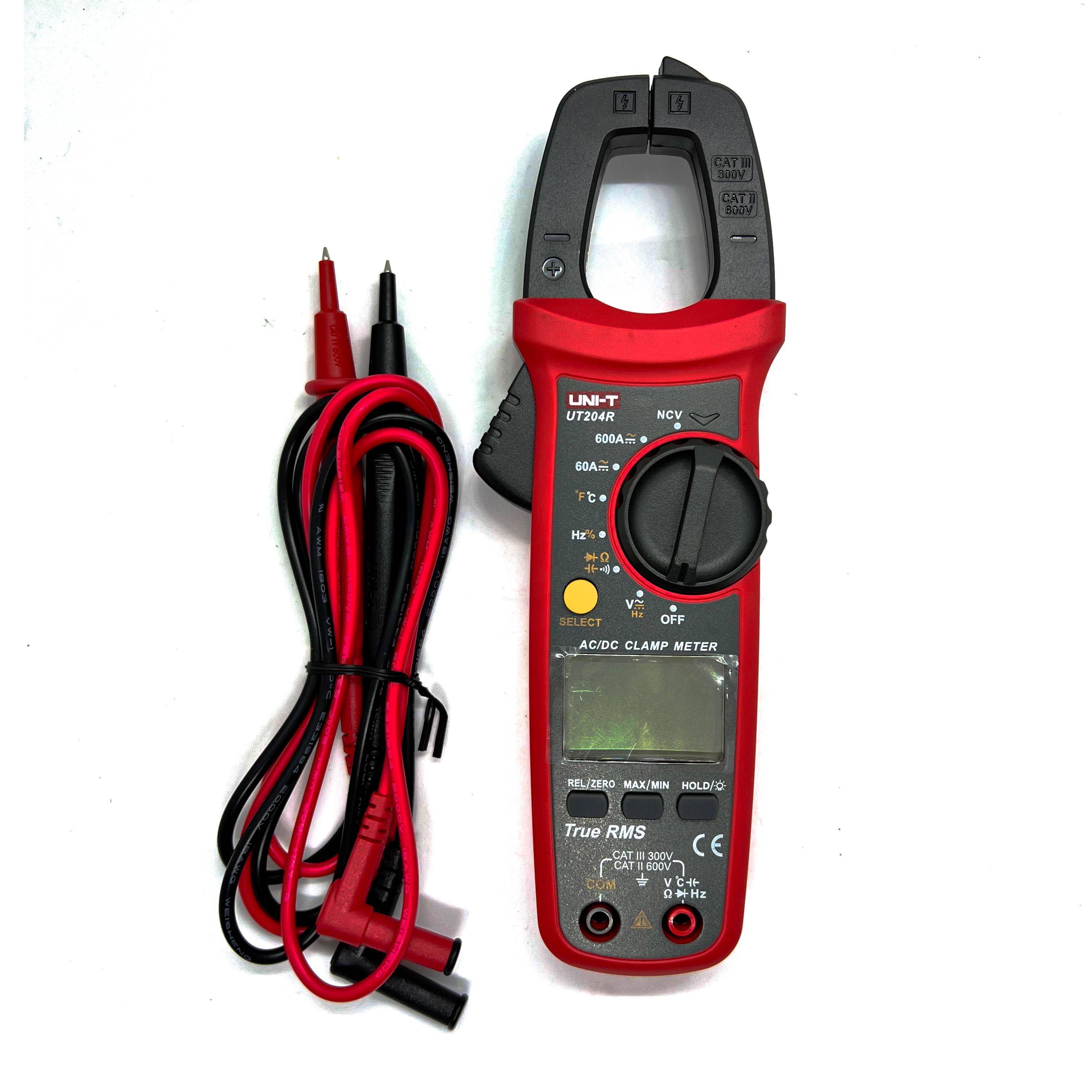

UT204R
Price 2,078.17 EG
In stock
About this item
UT204R Thank you for purchasing the new clamp meter. In order to use this product safely and correctly, please read this manual thoroughly, especially the Safety Instruction part. After reading this manual, it is recommended to keep the manual at an easily accessible place, preferably close to the device, for future reference.
Total price 2,078.17 EG
Product Features
- True RMS measurement
- Audio visual NCV electric field detection
- High voltage frequency range: 10Hz~60kHz; low voltage frequency
- range: 60Hz~10MHz
- UT203R AC/DC current range: 40A, 400A, frequency response:
- 45Hz~400Hz
- UT204R AC/DC current range: 60A, 600A, frequency response:
- 45Hz~400Hz, live/neutral wire detection
- ACA/DCA mode memory function for current measurement
- Large capacitance (UT203R: 40mF, UT204R: 60mF) and temperature
- measurement (UT204R)
- Large LCD and fast refresh rate (3 times/s), capacitance measurement
- response time:
- ≤1mF: less than 3s; ≤10mF: about 6s; ≤60mF: about 8s
- Full-function false detecting protection for up to 600V (3.6kVA)
- energy surge; overvoltage and overcurrent alarm
- The power consumption without backlight is about 1.8 mA. The
- circuit has an automatic power saving function. The consumption
- in sleep state is <11uA, which effectively extends the battery life to
- 400 hours
