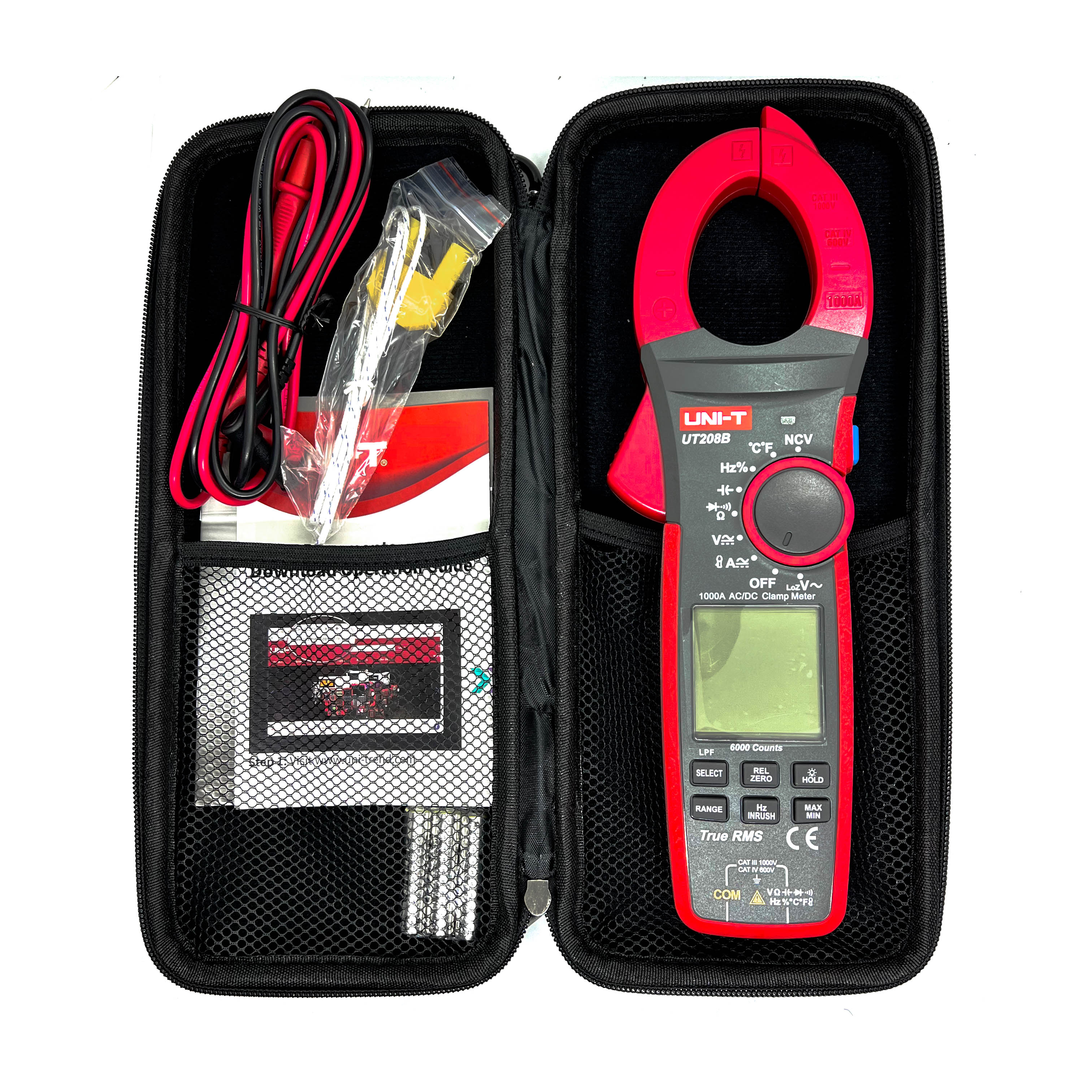

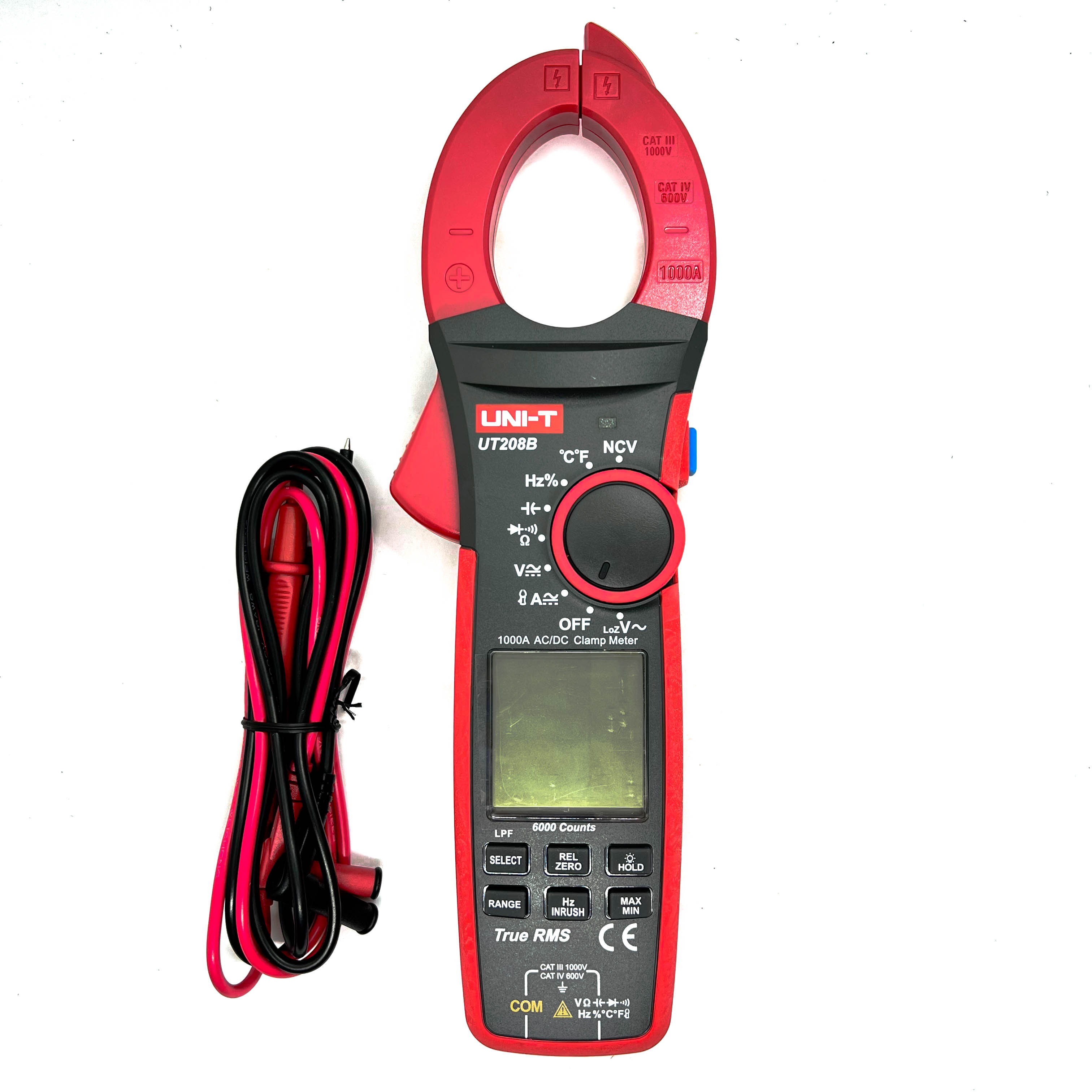

UNI-T UT208B (AC/DC) 1000A True RMS Digital Clamp Meter
Price 3,969.61 EG
In stock
About this item
UT200 series are 6000-count digital clamp meters with auto range, large LCD, true RMS, autoscale memory, and NCV functions. They conform to CAT III 1000V/CAT IV 600V safety rating andcertified by CE/ETL. The UT206B, UT207B, and UT208B come with LoZ mode for eliminating ‘ghost ’voltage, LPF ACV function for measuring INV and VFD voltage, and inrush current mode for capturing transient current. The UT206B and UT208B also feature high-precision temperature measurements with 0.1 °C resolution and can be equipped with a flexible current probe to extend the AC current measurement range to 3000A.
Total price 3,969.61 EG
Product Features
- Certifications: CE, UKCA, cETLus
- Flashlight button: Short press this button to turn on/off the flashlight
- NCV Multi-Segment Display and audio/visual alarm
- True RMS/Auto backlight
- NCV/Function retention
Specifications
| Type | Value |
|---|---|
| AC current (A) | 1000A ±(2%+5) |
| DC current (A) | 1000A ±(2%+5) |
| AC current frequency response | 40Hz~400Hz |
| Inrush current (A) | 1000A ±(10%+10) |
| AC voltage (V) | 1000V ±(1.2%+3) |
| DC voltage (V) | 1000V ±(0.5%+5) |
| Low pass filter (LPF ACV) | 1000V ±(2%+5) |
| AC voltage frequency response | 40Hz~400Hz |
| Analog bar | 31 |
| Display count | 6000 |
| Jaw opening | 42mm |
