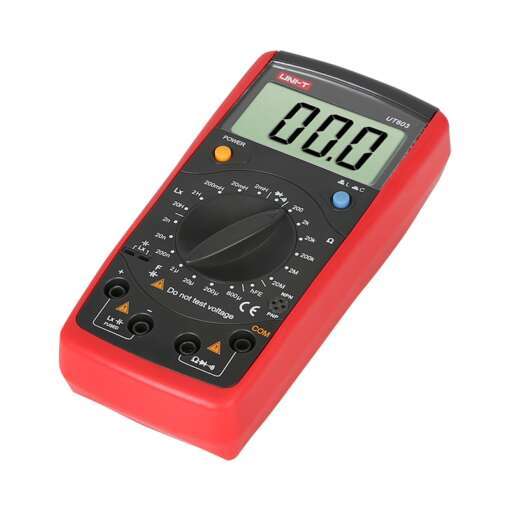

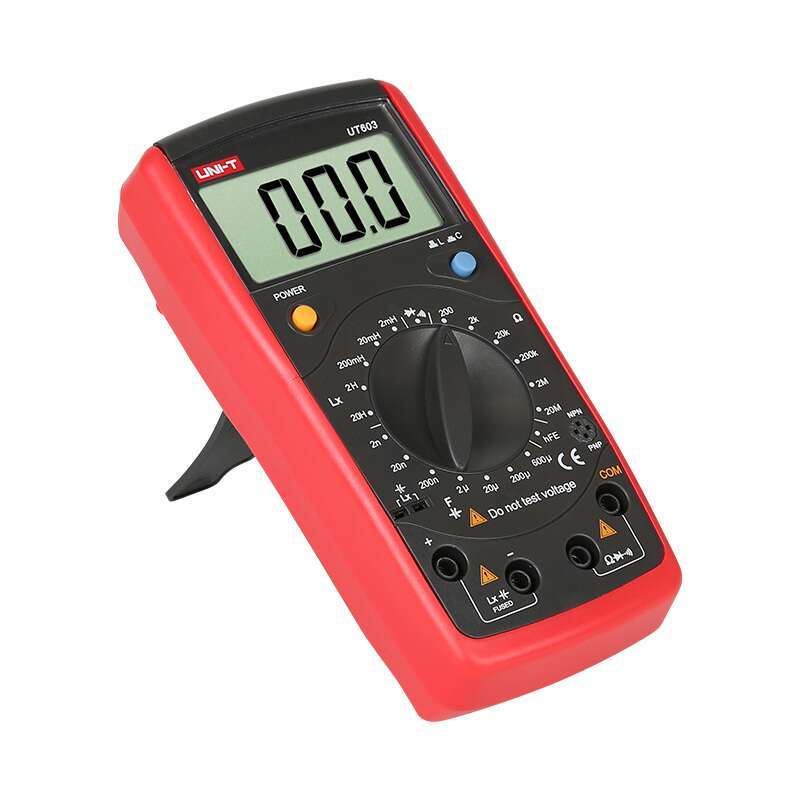

UT603 Digital Inductance Capacitance Resistance Meter
Price 1,759.38 EG
In stock
About this item
UT600 series digital inductance capacitance meters are used to test resistors, capacitors and inductors. They can also be used to measure transistor parameters.
Total price 1,759.38 EG
Product Features
- Manual range
- Continuity buzzer
- Diode/transistor
- Low battery indication
Specifications
| Type | Value |
|---|---|
| Resistance (Ω) | 200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ ±(0.8%+1) |
| Capacitance (F) | 2nF/20nF/200nF/2uF/20uF/200uF/600uF ±(1%+5) |
| Inductance (H) | 2mH/20mH/200mH/2H/20H ±(2%+8) |
| Power | 9V battery (6F22) |
| Display count | 2000 |
