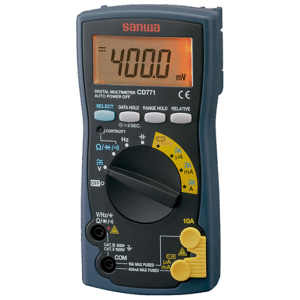

CD771
Price 4,750.00 EG
In stock
About this item
CD771 4000 counts Easy to read large LCD with backlight Large breaking capacity fuse 30kA 1.5V battery check function Thermo plastic elstomer, high resistance against drop shock Safety cap on current terminal Auto power off(30min.)(cancelable)
Total price 4,750.00 EG
Specifications
| Type | Value |
|---|---|
| Safety | IEC61010CAT.Ⅲ600V/CAT.Ⅱ1000V |
| Size/Mass | H166×W82×D44mm/360g |
| Battery life | Approx.400h (manganese battery) at DCV range |
| Battery | R6Px2 |
| Fuse | 0.5A/1000V 30kA Φ6.35×32mm 10A/1000V 30kA Φ10×38mm |
| Bandwidth | 40～400Hz（Sine wave) |
| Sampling rate | 3 times/sec. |
| Display | numeral display 4000 |
| Battery Check | Approximate value（30Ω load）1.5V battery only |
| Diode test | Open voltage:approx.1.5V |
| Continuity | Buzzer sounds and LED lights up at between 0Ω and 85Ω（±45Ω）. Open voltage:Approx.0.4V |
| Frequency | ±(0.3%+3) |
