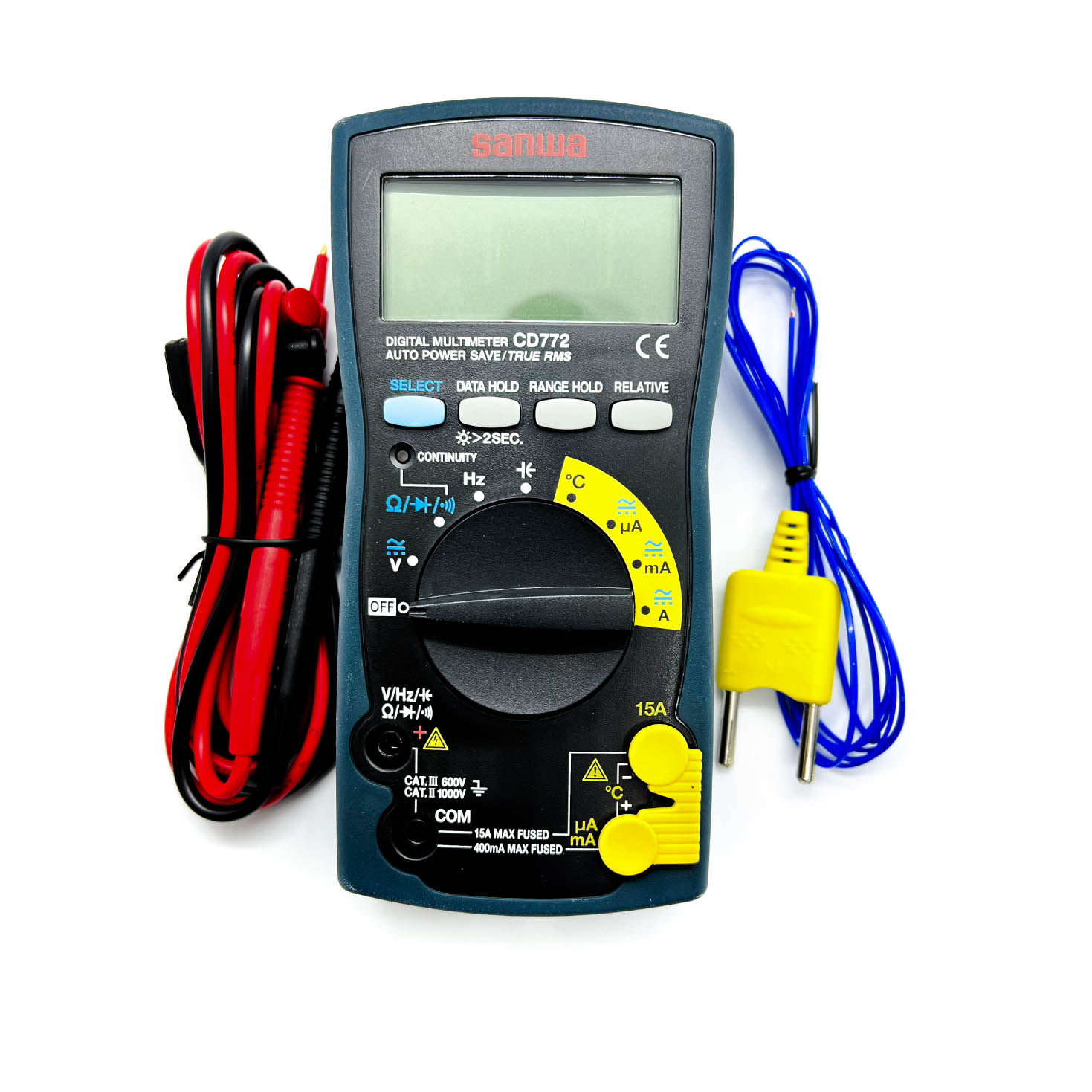

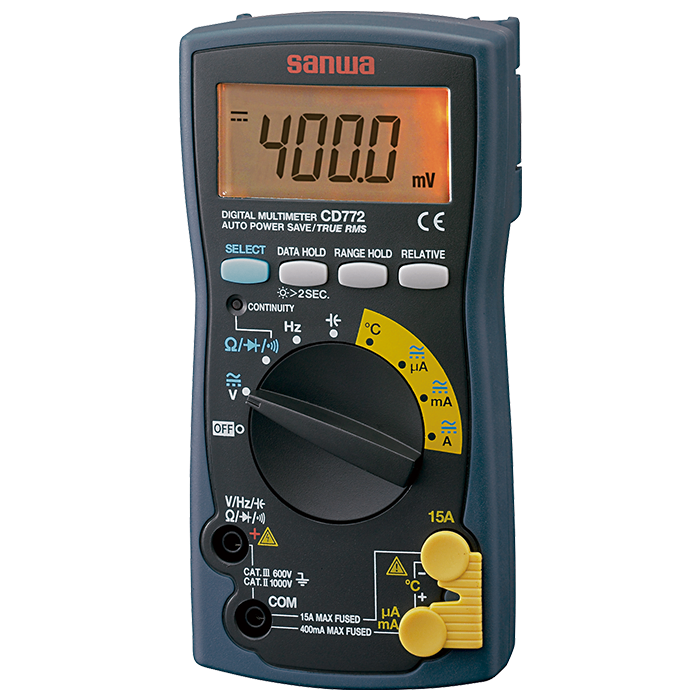

CD772
Price 6,800.00 EG
In stock
About this item
CD772 Description Reviews (0) 4000 counts Easy to read large LCD with backlight Large breaking capacity fuse 30kA K type thermocouple temperature measurement -20℃ ～ 300℃ Thermo plastic elstomer, high resistance against drop shock Safety cap on current terminal Auto power off (30min.)(cancelable) AC True RMS
Total price 6,800.00 EG
Specifications
| Type | Value |
|---|---|
| DCV | ±(0.5%+2) |
| ACV | ±(1.2%+8) |
| DCA | ±(1.4%+3) |
| ACA | ±(1.8%+6) |
| Resistance | ±(1.2%+5) |
| Capacitance | ±(5%+10) |
| Temperature | ±(3%+30) |
| Continuity | Buzzer sounds and LED lights up at between 0Ω and 85Ω（±45Ω）.Open voltage:Approx.0.4V |
| Diode test | Open voltage: Approx.1.5V |
| Display | numeral display 4000 |
| Sampling rate | 3 times/sec. |
| Bandwidth | 45～500Hz（4V range）、45～1kHz（40V range and above) |
| Fuse | 0.5A/1000V 30kA Φ6.35×32mm 16A/1000V 30kA Φ10×38mm |
| Battery | R6Px2 |
| Size/Mass | H166×W82×D44mm/360g |
| Safety | IEC61010CAT.Ⅲ600V/CAT.Ⅱ1000V |
