PC500A
Price 11,700.00 EG
In stock
About this item

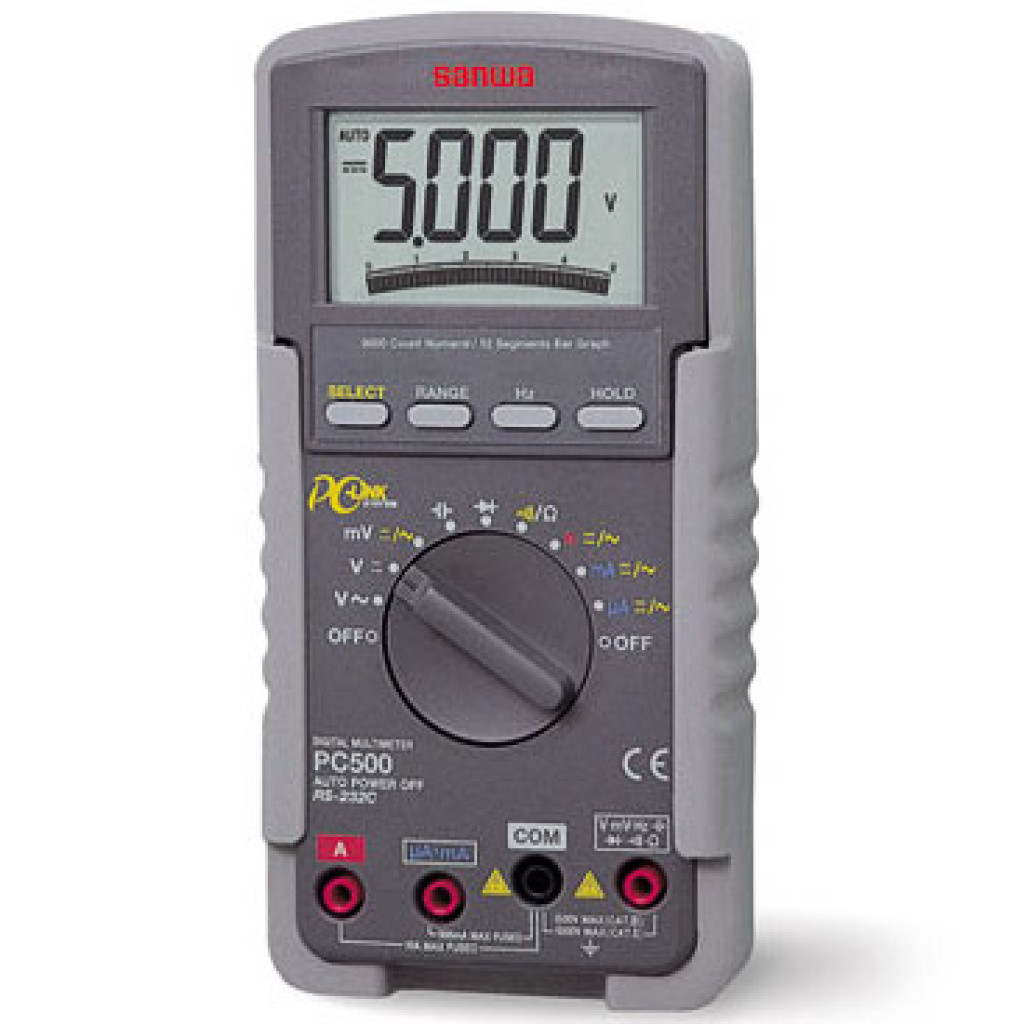

PC500A The Sanwa PC500A is a compact, portable digital multimeter engineered for accurate measurement of low‑capacity electrical circuits. Housed in fire‑retardant, impact‑resistant materials, it provides clear readings on a 5000‑count LCD augmented by a 52‑segment bar‑graph display for real‑time trend monitoring. Its fast response 5 updates per second on digits and 60 per second on the bar graph enables technicians to track rapid signal changes effortlessly. Continuity checks are enhanced by an audible buzzer paired with a bright LED indicator, streamlining fault location in wiring and component testing.
Total price 11,700.00 EG
Product Features
- Conforms to IEC 61010 safety standard with fire‑retardant case.
- 5000‑count LCD plus 52‑segment high‑speed bar‑graph display.
- Fast response: 5 updates/s (digits), 60 updates/s (bar graph).
- LED‑and‑buzzer continuity check for swift fault finding.
- Five‑level frequency sensitivity (10 Hz–125 kHz).
- Capacitance measurement from 50 nF to 9999 µF.
- Auto power‑off after ~17 minutes of inactivity.
- RS‑232C interface for data logging.
Product Applications
- Measurement of weak‑current circuits.
- Testing communication equipment.
- Home appliance voltage diagnostics.
- Lamp circuit and battery checks.
Specifications
| Type | Value |
|---|---|
| Dimensions / Weight | 179 × 87 × 55 mm; 320 g (without holster) |
| Safety | IEC 61010 CAT II 1000 V; CAT III 600 V; 6.5 kV surge |
| Operating Temp./Humidity | 0 °C–35 °C, 0–80 % RH; 35 °C–50 °C, 0–70 % RH |
| Auto Power‑Off | 17 minutes inactivity |
| Power | 9 V battery (NEDA 1604A / IEC 6F22) |
| Capacitance Range | 50.00 nF–9999 µF |
| Frequency Range | 10 Hz–125 kHz (auto) |
| Continuity Threshold | 20 Ω–120 Ω (buzzer + LED) |
| Sampling Rate | Digits: 5 times/s; Bar graph: 60 times/s |
| Display | 3 5/6 digits, 5000‑count LCD; 52‑segment bar graph |
