SE300
Price 11,000.00 EG
In stock
About this item

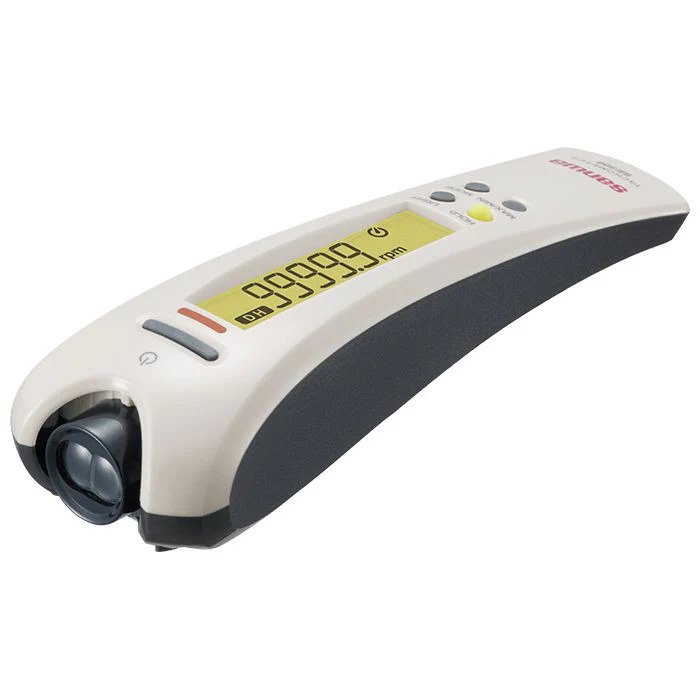

SE300 The Sanwa SE300 is a lightweight, handheld digital tachometer engineered for rapid, non‑contact measurement of rotating machinery. Utilizing a visible‑light photoelectric reflection system, it detects rotational speed by aiming its lens at an affixed reflective sticker on the target, enabling accurate readings from 50 mm up to 500 mm away. Its ergonomic pistol‑grip design ensures stable one‑hand operation, while a bright backlit LCD presents five‑digit readings with clear unit indicators, minimizing user error in dim environments.
Total price 11,000.00 EG
Product Features
- • Ergonomic pistol‑grip design for stable, one‑handed operation.
- • Six versatile measurement modes: rpm, rps, ms, count, m/min, m/s.
- • Wide non‑contact detection range (50–500 mm).
- • Contact measurement capability with optional ENC‑3 attachment.
- • MAX/MIN display and data‑hold functions.
- • Bright backlit LCD for low‑light conditions.
- • Auto power‑off after ~2 min (cancellable).
- • Tripod‑mountable via standard 1/4‑20 UNC thread.
Product Applications
- Non‑contact rotation speed measurement of motors and fans.
- Contact‑type tachometry with ENC‑3 attachment.
Specifications
| Type | Value |
|---|---|
| Measurement Method | Visible‑light photoelectric reflection; contact |
| Detection Distance | 50 – 500 mm |
| Display | 5‑digit backlit LCD |
| Update Interval | 1 s (rpm, rps, cycle, m/min, m/s); 0.1 s (count) |
| Measurement Modes & Ranges | Non‑contact: rpm 30.0–99 999; rps 0.50–1 600.0; ms 0.600–1 999.0; count 0–99 999Contact: rpm 30.0–19 999; rps 0.50–333.00; ms 3.000–1 999.0; count 0–99 999; m/min 3.0–1 999.0; m/s 0.05–33.00 |
| Accuracy | ±(0.03 % rdg + 1 dgt) (non‑contact) |
| Power | 2×AA (LR6); 28 h (alkaline, backlight off) |
| Auto Power‑Off | ≈2 min (cancelable) |
| Operating Conditions | 5 °C–40 °C, ≤80 % RH; indoor, ≤2000 m altitude |
| Dimensions (H × W × D) | 210 × 60 × 50 mm |
| Weight (with batteries) | 218 g |
