DCM60R
Price 3,750.00 EG
In stock
About this item
DCM60R The Sanwa DCM60R is a compact, true‑RMS AC clamp meter engineered for low‑voltage electrical diagnostics in CAT III 300 V/CAT II 600 V environments. Its Δ‑Σ sensing method and true‑RMS circuitry deliver precise current measurements across 199.9 A and 600 A ranges, while its autoranging AC voltage function spans 199.9 V to 600 V with 1999‑count resolution. A large, easy‑to‑read LCD supports data‑hold, over‑range “OL” indication, and a continuity buzzer for sub‑100 Ω checks. Sampling twice per second, the DCM60R provides stable readings and signals battery‑low at 2.2 V. Designed for extended field use, it draws just 5 mW and runs for about 250 hours on two AAA batteries. The slim, ergonomic body incorporates a 25 mm jaw opening to suit most conductors, and a protective case stores leads and the meter conveniently. Safety features include double/reinforced insulation, barrier guards, and compliance with IEC 61010‑1, ‑2‑030, ‑2‑032, ‑2‑033, and ‑10‑31 standards. Supplied with test leads (TL‑21a), a carrying case (C‑DCM60L), and instruction manual, the DCM60R offers portable, reliable current and voltage diagnostics for maintenance technicians and electricians in industrial and commercial settings.
Total price 3,750.00 EG
Product Features
- True‑RMS Δ‑Σ AC sensing for accurate current measurement
- Autorange AC current (199.9/600 A) and voltage (199.9/600 V) modes
- 1999‑count LCD with data‑hold and over‑range “OL” indication
- Continuity buzzer sounds below 100 Ω
- Low‑battery warning at approx. 2.2 V
- Long battery life (250 hours on two AAA cells)
Product Applications
- AC current measurement in electrical lines
- Testing appliances and power‑supply facilities in low‑voltage (CAT III) environments
Specifications
| Type | Value |
|---|---|
| AC Current Range | 199.9 A / 600 A (Δ‑Σ, True RMS) |
| AC Voltage Range | 199.9 V / 600 V (Autorange) |
| Resistance Range | 199.9 Ω (buzzer at ≤ 100 Ω) |
| Display | 1999‑count LCD, 2 times/sec |
| Continuity | Buzzer below 100 Ω |
| Sampling Rate | 2 times/sec |
| Jaw Opening | 25 mm |
| Power Consumption / Life | 5.0 mW / ~250 hours on R03/AAA × 2 |
| Operating Temperature / Humidity | 0 ℃–40 ℃, ≤ 80 % RH (no condensation) |
| Storage Temperature / Humidity | −10 ℃–60 ℃, ≤ 70 % RH (no condensation) |
| Safety Standards | IEC 61010‑1, 61010‑2‑030 CAT III 300 V/II 600 V, IEC 61010‑2‑032/033/31 |
| Dimensions (H×W×D) | 187 × 50 × 29 mm |
| Mass | 210 g (including batteries) |

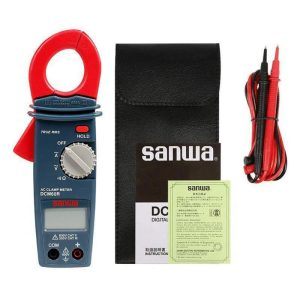

| Accessories | Test lead (TL‑21a), Carrying case (C‑DCM60L), Manual |
