Kyoritsu 2127r
Price 5,150.00 EG
In stock
About this item

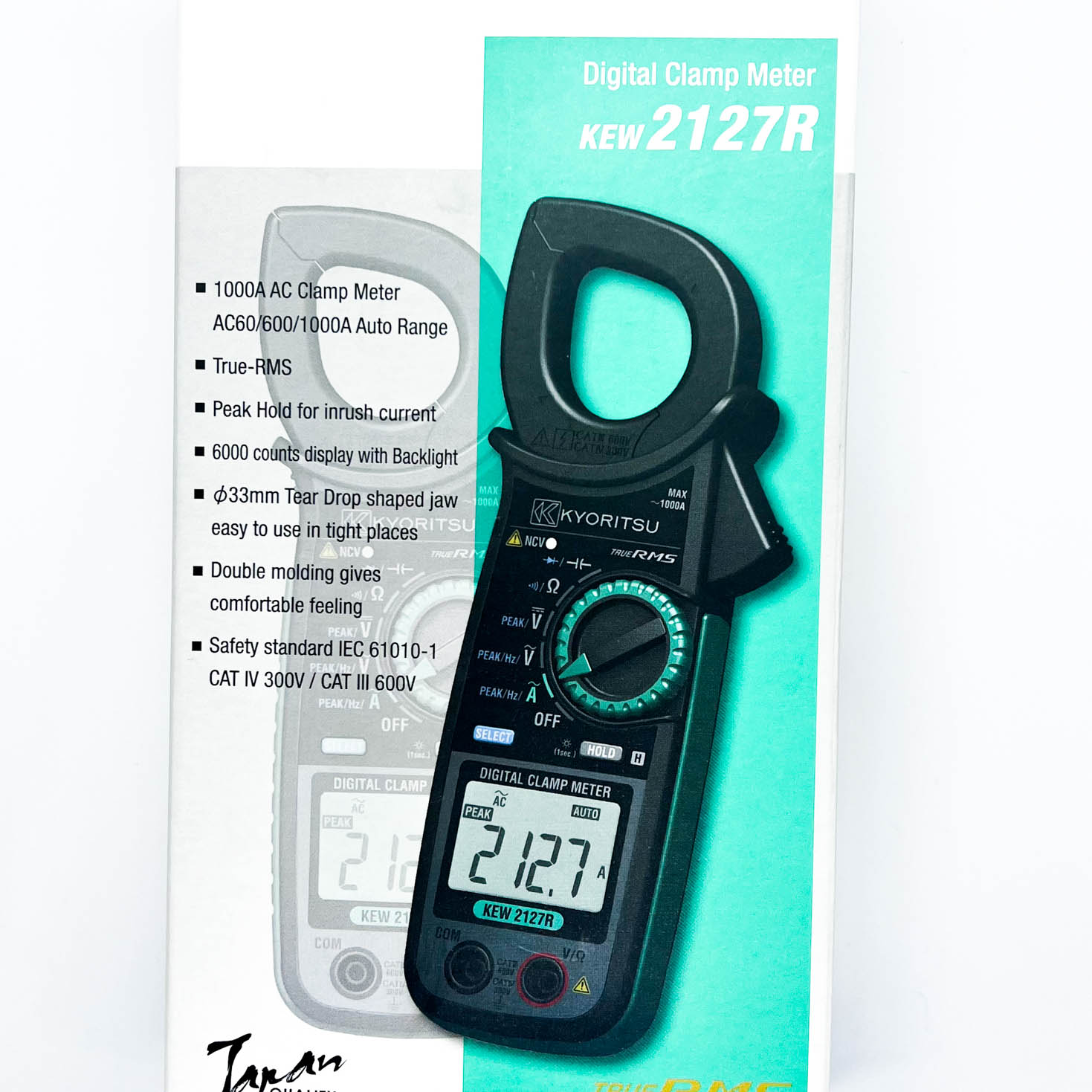

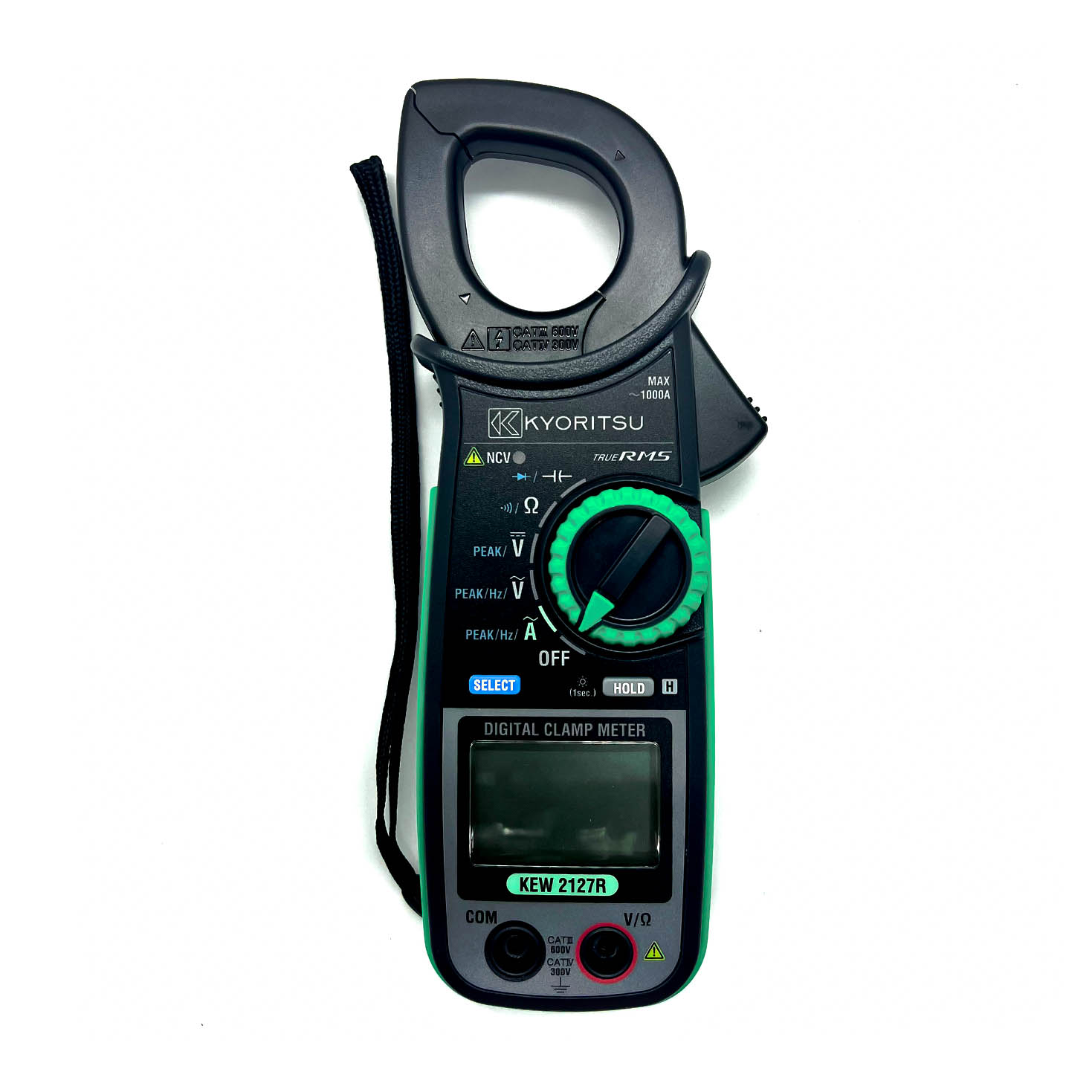

Kyoritsu 2127r
Total price 5,150.00 EG
Product Features
- Fully Safety jaw
- Ergonomic over-molded body gives convenient one-hand operation
- Large easy-to-read display with 0.01A resolution
- Accurate reading with True RMS 60/600/1000A auto-ranging
- Peak Hold for inrush current
- Large display with backlight
- Capacitance and Diode test
- Long battery life
- Safety standard IEC 61010-1 CAT Ⅳ 300V / CAT Ⅲ 600V
Specifications
| Type | Value |
|---|---|
| AC A | 60.00/600.0/1000A (Auto-ranging) ±1.5%rdg±4dgt [45 to 65Hz] ±2.0%rdg±5dgt [40Hz to 1kHz] |
| AC V | 60.00/600.0V (Auto-ranging) ±1.0%rdg±2dgt [45 to 65Hz] (600V) ±1.5%rdg±4dgt [40Hz to 1kHz] (60/600V) |
| DC V | 60.00/600.0V (Auto-ranging) ±1.0%rdg±3dgt (60V) ±1.2%rdg±3dgt (600V) |
| Ω | 600.0Ω/6.000/60.00/600.0kΩ/6.000/40.00MΩ(Auto-ranging) ±1.0%rdg±5dgt (600Ω) ±2.0%rdg±3dgt (6/60/600kΩ) ±3.0%rdg±3dgt (6MΩ) ±5.0%rdg±3dgt (40MΩ) |
| Continuity buzzer | 600Ω (Buzzer sounds below 90Ω) |
| Capacitance test | 1.000/10.00/100.0μF ±3.0%rdg±15dgt(1μF) ±3.0%rdg±10dgt(10/100μF) |
| Diode test | 2.000V ±4%rdg±5dgt Open-circuit voltage:<3.5V |
| Hz | 999.9Hz/9.999kHz (Auto-ranging) ±0.1%rdg±3dgt (Input sensitivity Current:more than 4A Voltage:more than 2V) |
| Conductor size | φ33mm max. |
| Applicable standards | IEC 61010-1 CAT Ⅳ 300V / CAT Ⅲ 600V Pollution degree 2 IEC 61010-031, IEC 61010-2-032, IEC 61010-2-033, IEC 61326-2-2(EMC), IEC 60529 IP40, EN 50581(RoHS) |
| Power source | R03/LR03(AAA)(1.5V)x2 |
| Continuous measuring time | approx. 170 hours (when R03 is used) (NCV_LED, Backlight:off) (Auto power save : Approx.10 minutes) |
| Dimension | 204(L) × 81(W) × 36(D)mm |
| Weight | Approx. 230g (including batteries) |
| Accessories | 7066A (Test leads) 9079 (Carrying case) R03(AAA)×2 Instruction manual |
