Kyoritsu 2046r
Price 8,700.00 EG
In stock
About this item

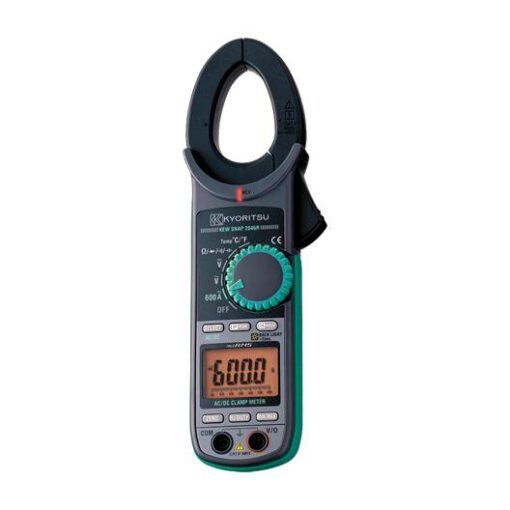

Kyoritsu 2046r The KYORITSU 2046R is a professional-grade digital clamp meter designed for accurate measurement of both AC and DC currents up to 600A. Its True RMS capability ensures precise readings even in non-sinusoidal waveforms, making it ideal for applications involving variable frequency drives and other electronic equipment. The meter is compact and ergonomically designed, featuring a 33mm jaw opening suitable for a wide range of conductor sizes. Equipped with a bar graph display and a backlit LCD, the 2046R provides clear visibility of measurements in various lighting conditions. It offers a minimum resolution of 0.1A and includes functions such as peak hold, MIN/MAX recording, and relative measurement mode. The clamp meter also features a non-contact voltage (NCV) detection function, alerting users to the presence of live AC voltage with a red LED indicator.
Total price 8,700.00 EG
Product Features
- 600V input protection
- Sleep function saves battery life
- NCV function detects the presence of voltage in an electrical circuit or equipment without touching them
- Temperature measurement with optional k-type temperature probe
- Continuity & diode check
- Capacity measurement
- Peak hold function for peak value measurements on inrush currents (only at AC A range)
- Data hold
- Comfortable double moulded main body
- LCD backlight
- 6039 count and bar graph display
- REL function to indicate measurement variation (current, voltage, resistance)
- Min/Max function
Product Applications
- Power Distribution Systems.
- Industrial Electrical Maintenance.
- Troubleshooting Electrical Circuits.
- Motor Diagnostics.
- HVAC Systems.
- Solar Power Systems.
- Electrical Panel Inspections.
- Battery Testing.
- Automotive Electrical Systems.
- Commercial and Residential Wiring.
Specifications
| Type | Value |
|---|---|
| AC A | ±2.0%rdg ±5dgt at 50/60Hz ±3.5%rdg ±5dgt at 40 to 500Hz |
| AC V | ±1.5%rdg ±4dgt at 50/60 Hz ±3.5%rdg ±5dgt at 40 to 400 Hz |
| DC A | ±1.5%rdg ±5dgt |
| DC V | ±1.0%rdg ±3dgt |
| General Specifications | Withstand Voltage 6880V AC for 5 seconds Applicable Standard IEC61010-1 CAT.IV600V, IEC61010-1-031, IEC61010-2-032, IEC61326 Power Source 2 x “AAA” 1.5V Batteries Dimensions 243 x 77 x 36mm Weight 300g |
