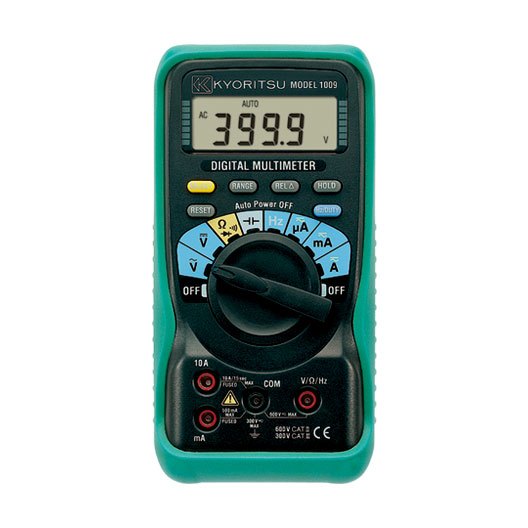

Kyoritsu 1009
Price 2,100.00 EG
In stock
About this item
Kyoritsu 1009
Total price 2,100.00 EG
Product Features
- Display : 3999 counts
- Auto-ranging and manual ranging selector provided (with range hold feature)
- Resistance range provides audible continuity test
- Automatically turns power off in about 30 minutes to conserve battery life
- Direct current measurement up to 10A AC and DC
Specifications
| Type | Value |
|---|---|
| DC V | 400mV/4/40/400/600V (Input Impedance 10MΩ) ±0.6%rdg±4dgt (400mV/4/40/400V) ±1.0%rdg±4dgt (600V) |
| AC V | 400mV/4/40/400/600V (Input Impedance 10MΩ) ±1.6%rdg±4dgt (20 to 400mV) ±1.3%rdg±4dgt (4/40V) ±1.6%rdg±4dgt (400/600V) |
| DC A | 400/4000µA/40/400mA/4/10A ±2.0%rdg±4dgt (400/4000µA) ±1.0%rdg±4dgt (40/400mA) ±1.6%rdg±4dgt (4/10A) |
| AC A | 400/4000µA/40/400mA/4/10A ±2.6%rdg±4dgt (400/4000µA) ±2.0%rdg±4dgt (40/400mA/4/10A) |
| Ω | 400Ω/4/40/400kΩ/4/40MΩ ±1.0%rdg±4dgt (400Ω/4/40/400kΩ/4MΩ) ±2.0%rdg±4dgt (40MΩ) |
| Continuity buzzer | 0 to 400Ω (Buzzer sounds below 100Ω) |
| Diode test | 1.5V open circuit voltage: Approx. 0.4mA Test Current |
| Weight | Approx. 280g |
| Accessories | 7066A (Test leads) 8919 (Ceramic fuse[10A/600V]) × 1 (included) 8923 (Fuse [0.5A/600V])× 1 R6× 2 Instruction Manual |
| Optional accessories | 7234 (Crocodile clip test lead) 9095 (Carrying case) |
