Kyoritsu 2031
Price 4,100.00 EG
In stock
About this item

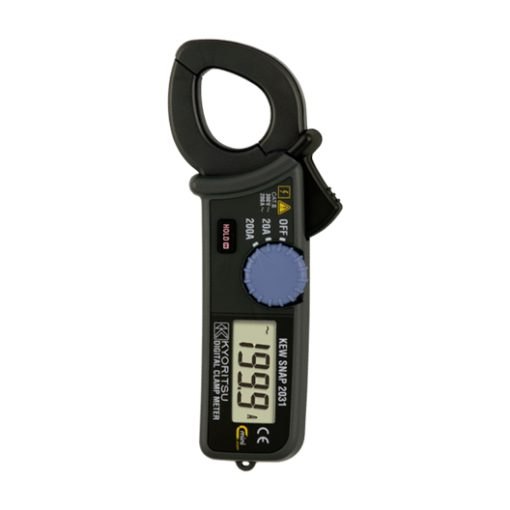

Kyoritsu 2031 The Kyoritsu KEW SNAP 2031 is a pocket-sized AC clamp meter engineered for rapid, non-invasive current measurements. Its tear-drop–shaped jaws open via a convenient trigger, allowing technicians to encircle single conductors up to 24 mm in diameter even in crowded panels without disconnecting wiring. Powered by two LR-44 button cells, the instrument delivers clear readings on a 3½-digit LCD and automatically powers off after ten minutes of inactivity to preserve battery life. With a dual-integration measurement system, it maintains accuracy across its two ranges (20 A and 200 A AC) and signals overrange or low-battery conditions via on-screen indicators. The simple rotary switch selects the desired range, while a dedicated Data Hold button freezes the display for recording in dim or hard-to-reach locations. Housed in a double-insulated, barrier-protected casing, the KEW SNAP 2031 meets CAT III 300 V safety standards, ensuring reliable operation in industrial, commercial, or residential environments. Its lightweight design (approx. 100 g) and included carrying case make it an ideal companion for field electricians and maintenance personnel who need fast, dependable AC current checks without the bulk of larger meter clamps.
Total price 4,100.00 EG
Product Features
- Pocket-size, tear-drop-jaw design for access in tight cable areas.
- Dual‐integration AC measurement in 20 A and 200 A ranges.
- 3½-digit LCD with overrange (“1”) and low-battery (“BATT”) indicators.
- Data Hold button for freezing readings in awkward positions.
- Auto Power Off after ~10 minutes to conserve battery.
- Barrier-protected, double-insulated housing meeting CAT III 300 V safety.
Product Applications
- AC Current Measurement in Live Circuits.
- Freezing Readings in Hard-to-Reach Locations (Data Hold).
- Quick Checks in Confined or Crowded Cable Installations.
Specifications
| Type | Value |
|---|---|
| Measurement Ranges | 0–19.99 A / 0–199.9 A AC |
| Accuracy | ±2.0 % rdg ± 5 dgt (50 Hz–1 kHz, 20 A & 200 A ranges); ±3.0 % rdg ± 10 dgt (40 Hz–1 kHz, 200 A range) |
| Display | 3½-digit F-effect LCD; max “1,999” count |
| Response Time | 1 s |
| Auto Power Off | After 10 min |
| Data Hold | Available on all ranges |
| Conductor Diameter | Max. Ø 24 mm |
| Safety Standards | IEC 61010-1 CAT III 300 V; IEC 61010-2-032; EN 61326-1 EMC; RoHS compliant |
| Operating Temp./Humidity | 0 °C–40 °C, ≤ 90 % RH (non-condensing) |
| Storage Temp./Humidity | –10 °C–50 °C, ≤ 75 % RH (non-condensing) |
| Power | 2× LR-44 (or SR-44) batteries; battery life 100 h; current consumption ~1 mA |
| Dimensions & Weight | 147 × 59 × 26 mm; 100 g (incl. batteries) |
