Kyoritsu 2413r
Price 18,720.00 EG
In stock
About this item

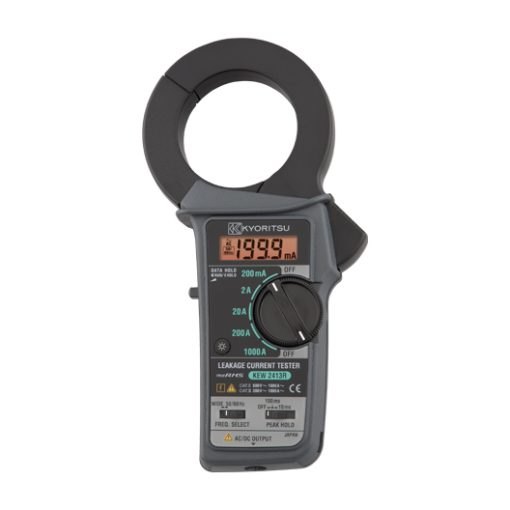

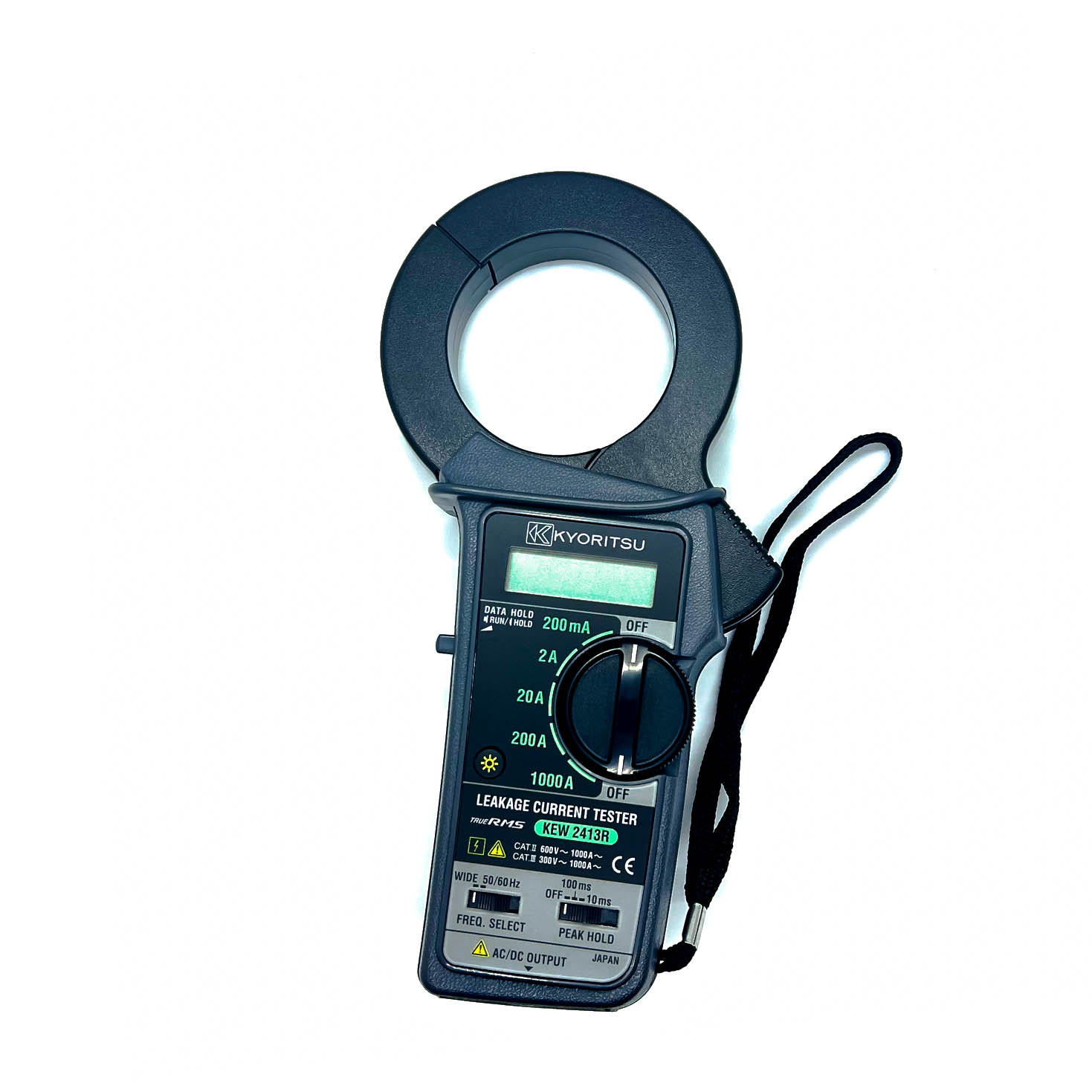

Kyoritsu 2413r The Kyoritsu 2413R is a versatile digital clamp meter engineered to measure both very low leakage currents and high currents up to 1 000 A AC without disconnecting conductors. Its shielded, 68 mm‑diameter transformer jaws minimize interference from external magnetic fields, ensuring accurate readings across all ranges (0.1 mA–1000 A) with a crest factor ≤ 3.0. A user‑selectable frequency filter (50/60 Hz or WIDE up to 1 kHz) enables isolation of fundamental‑frequency currents or inclusion of higher‑frequency components from inverters. The 3½‑digit LCD (max. 1999 counts) displays RMS values, while the peak‑hold function (10 ms/100 ms response) captures surge currents by indicating 1/√2 of the peak value. A DATA HOLD button freezes the display for easy viewing in hard‑to‑reach spots, and an LCD backlight aids measurements in dim environments. Two‑way analog outputs (AC/DC) provide proportional voltage signals for oscilloscopes or chart recorders. Powered by a single 9 V (6F22) battery, it delivers continuous operation with a low‑battery warning, and auto‑power‑off protects battery life. Built to IEC 61010‑1 CAT III 300 V standards with pollution degree 2, and featuring 1 500 A overload protection, 3 470 V dielectric withstand, and a rugged case, the 2413R combines portability (250 × 130 × 50 mm; 600 g) with professional‑grade performance for field technicians, maintenance teams, and electrical diagnosticians.
Total price 18,720.00 EG
Product Features
- Measures AC currents from 0.1 mA to 1000 A RMS with CF ≤ 3.0.
- Selectable frequency response: 50/60 Hz filter or WIDE (40 Hz–1 kHz).
- Peak‑hold function with 10 ms or 100 ms response time.
- Two‑way analog output (AC/DC) for oscilloscope or recorder monitoring.
- Data‑hold and backlight for improved readability.
- Safety rated IEC 61010‑1 CAT III 300 V, pollution degree 2; 1500 A overload protection.
Product Applications
- Leakage Current Detection in Power Systems.
- High‑Current Measurement for Load Testing.
- Surge and Inrush Current Analysis.
- Frequency‑Selective Current Monitoring.
- Waveform Capture via Analog Output.
Specifications
| Type | Value |
|---|---|
| Dimensions & Weight | 250 × 130 × 50 mm; 600 g (incl. battery) |
| Conductor Size | Up to 68 mm diameter |
| Overload & Withstand | 1500 A AC for 1 min; 3470 V AC/5 s between circuits and case |
| Safety & Compliance | IEC 61010‑1 / ‑2‑032 CAT III 300 V, IEC 61326‑1 EMC, RoHS |
| Storage Conditions | –20 – 60 °C, ≤ 80 % RH (no condensation) |
| Operating Conditions | 0 – 40 °C, ≤ 85 % RH (no condensation); indoor up to 2000 m |
| Auto Power‑Off | After unused period (to conserve battery) |
| Power | One 9 V (6F22) battery; low‑battery “ ” warning |
| Response & Sampling | 3 s response; 3 samples/sec |
| Analog Output | AC/DC voltage proportional to current; impedance ≈ 1 kΩ |
| Peak Hold | Selectable 10 ms / 100 ms response; displays 1/√2 of peak |
| Display | 3½‑digit LCD (max. 1999 counts); overrange “1” indicator |
| Frequency Response | WIDE (40 Hz–1 kHz); 50/60 Hz (–24 dB/oct filter) |
| Accuracy (50/60 Hz) | ±1.8 % rdg ± 5 dgt (200 mA); ±2.0 % rdg ± 5 dgt (2 A); ±5.0 % rdg (20 A); ±3.0 % rdg ± 5 dgt (200 A); ±5.5 % rdg (1000 A) |
| AC Current Ranges | 0–199.9 mA / 0–1.999 A / 0–19.99 A / 0–199.9 A / 0–1000 A |
