Kyoritsu 3007a
Price 16,500.00 EG
In stock
About this item

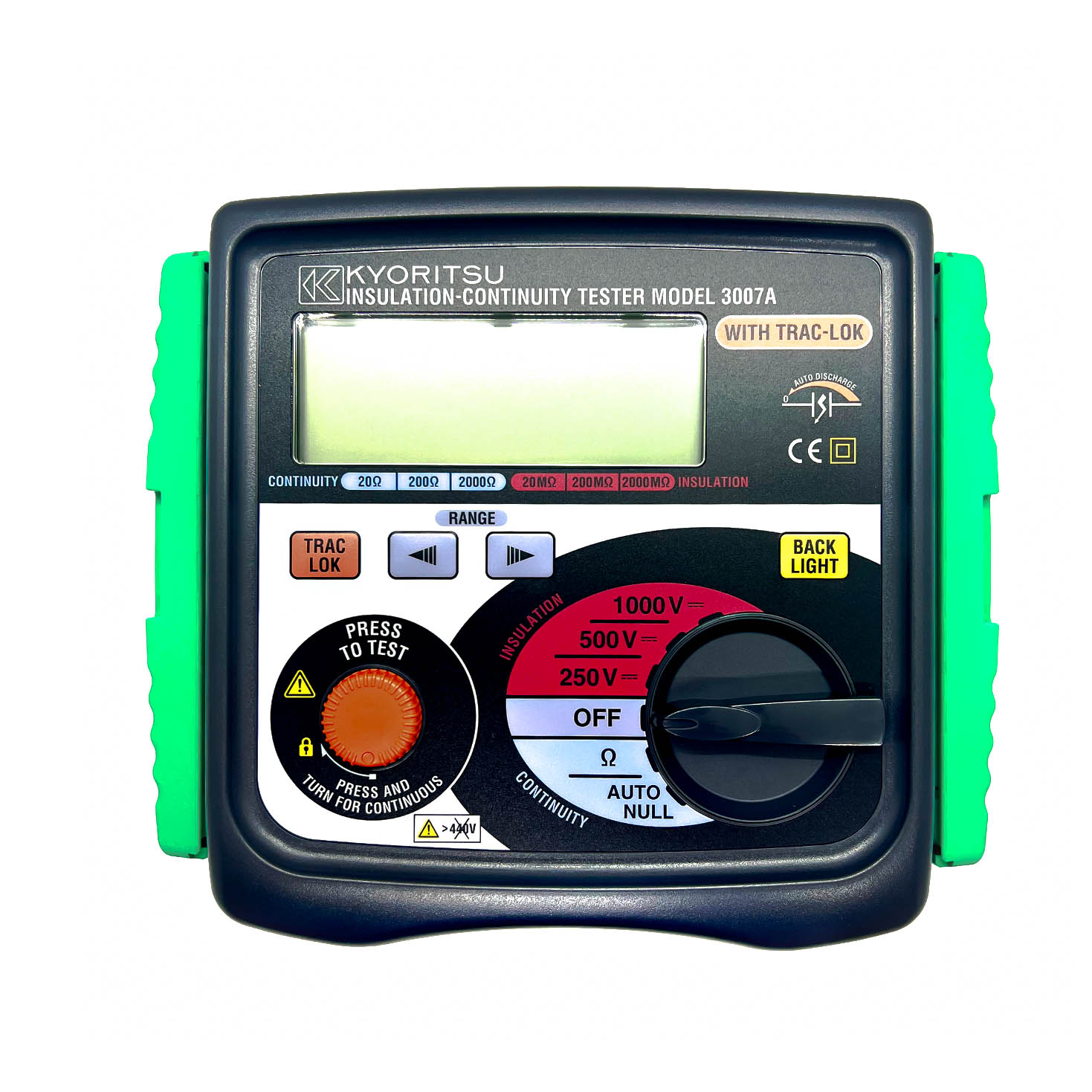

Kyoritsu 3007a
Total price 16,500.00 EG
Product Features
- Bar graph to display insulation resistance
- Displays the value of external AC voltage with flashing symbol
- Auto null function to automatically subtract the test lead resistance before displaying the real continuity resistance value
- Trac-Lok mode to conserve battery life on insulation and continuity tests
- Live circuit warning buzzer
- Releasing the test button automatically discharges the charges stored in the circuit under test
- Backlight function to view the test results in dimly lit areas
- 200mA measuring current on continuity testing
Specifications
| Type | Value |
|---|---|
| Test voltage | 250/500/1000V |
| Measuring ranges (Mid-scale value) | 20/200/2000MΩ |
| Output voltage on open circuit | Rated test voltage +20%, -0% |
| Nominal current | 1mA DC min. |
| Output short circuit current | 1.5 mA DC approx. |
| Accuracy | ±1.5%rdg±5dgt (20/200MΩ) ±10%rdg±3dgt (2000MΩ) |
