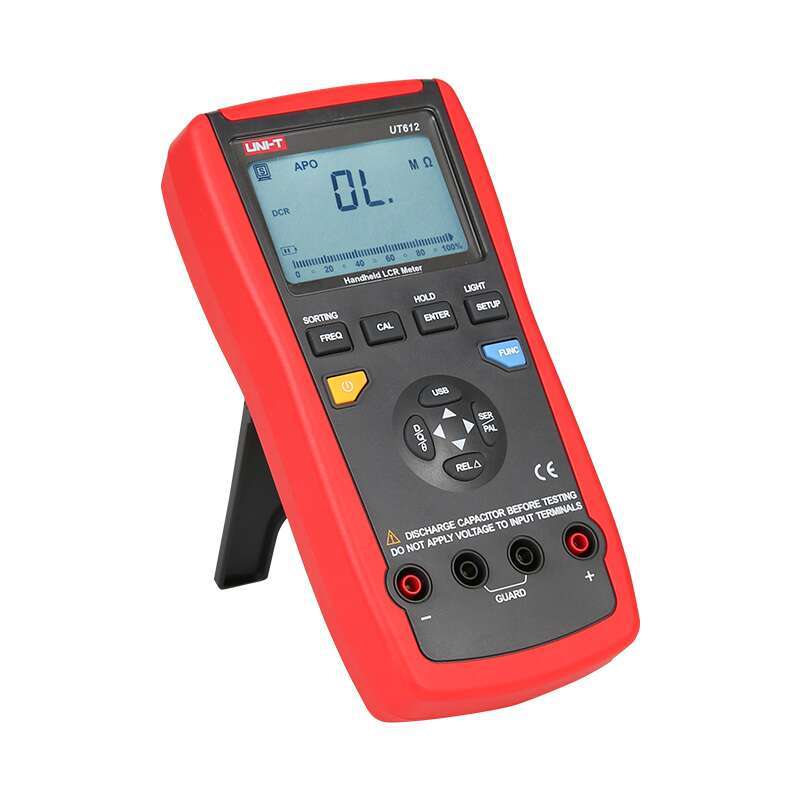

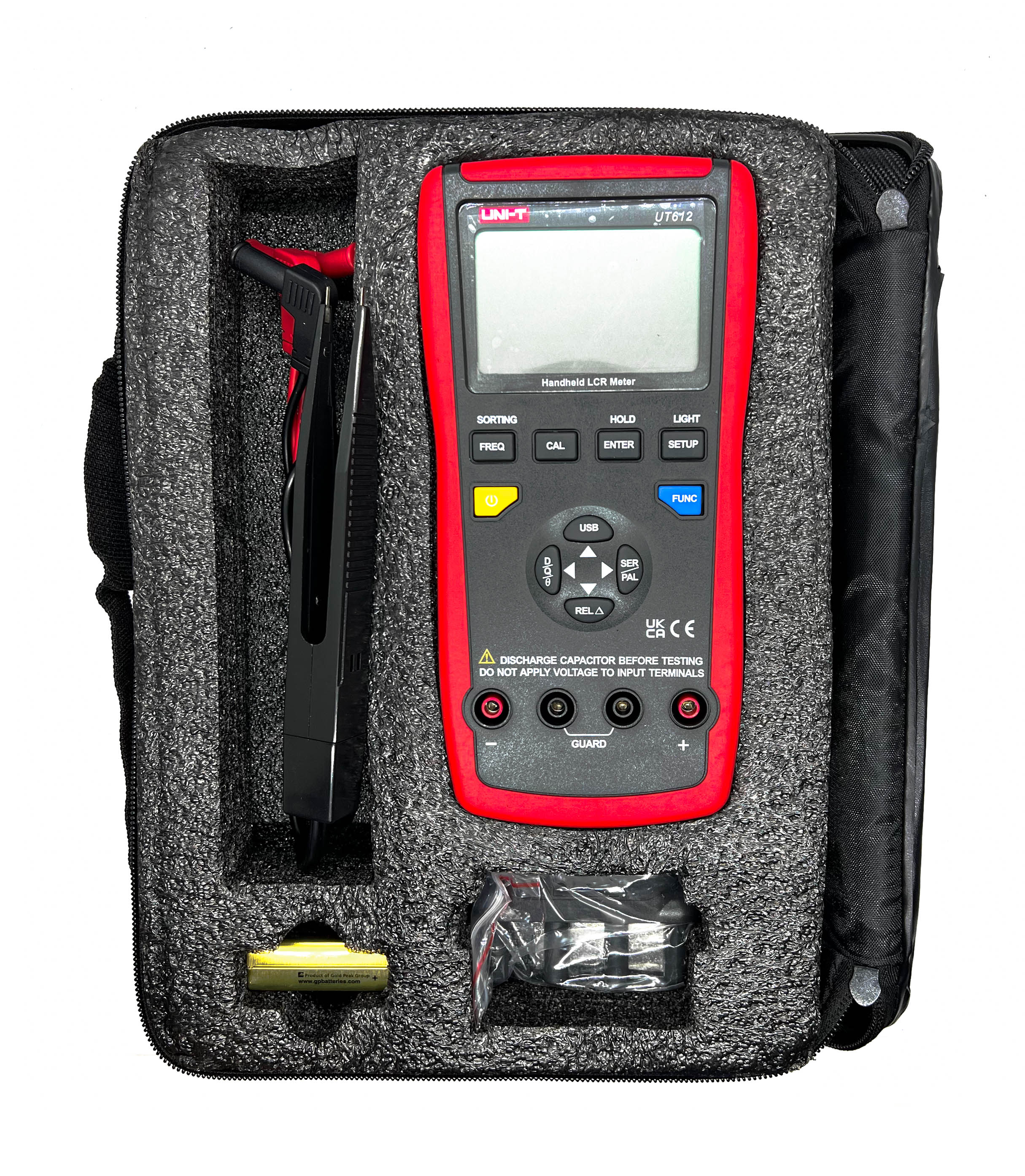

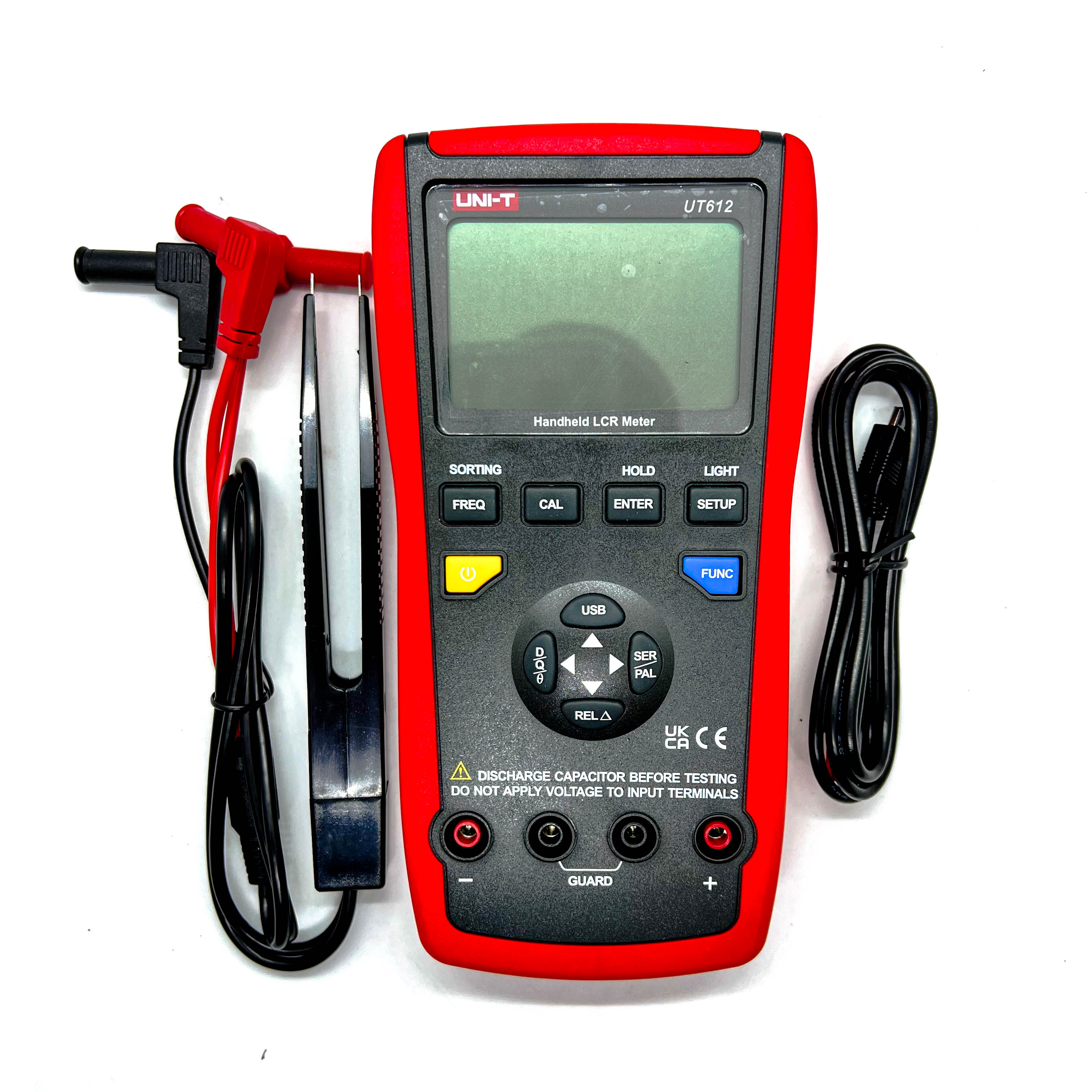

UNI-T UT612 LCR Meter
Price 5,863.18 EG
In stock
About this item
UT612 LCR meter is used to measure inductance, capacitance and resistance. Advanced features include series/parallel measurement modes, quality factor/loss/phase angle measurements, equivalent/DC resistance measurements and 5 selectable frequencies in AC mode. UT612 can be used in production lines, component inspection and electronic maintenance.
Total price 5,863.18 EG
Product Features
- Certifications: CE, UKCA
- Auto power off
- Data hold
- Relative mode
- USB interface
- LCD backlight
- Deviation ratio measurement
- Comparison function
- Calibration function
- Output impedance: 120Ω
- Auto LCR check and measurement
- Low battery indication: ≤6.8V
Product Applications
- Capacitance measurement
- Inductance measurement
Specifications
| Type | Value |
|---|---|
| Inductance (H) | 20uH~2000H |
| Capacitance (F) | 200pF~20mF |
| Resistance (Ω) | 20Ω~200MΩ |
| Test frequency (Hz) | 100Hz/120Hz/1kHz/10kHz/100kHz |
| Operating voltage | 0.6Vrms |
| Test parameters | L/C/R/DCR/Q/D/θ/ESR |
