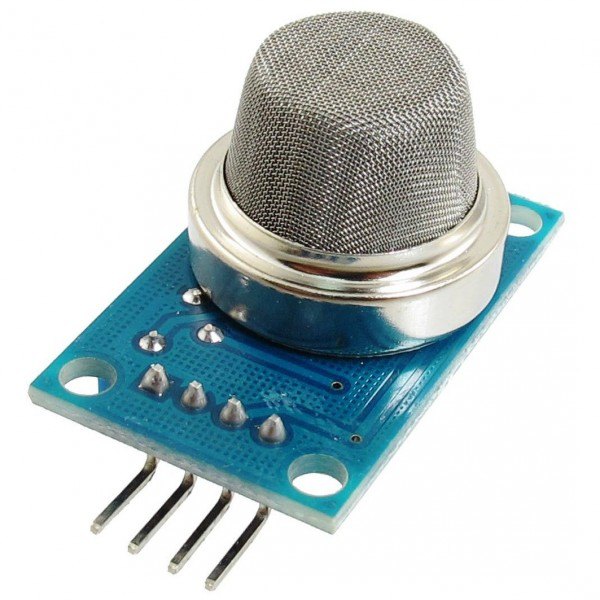

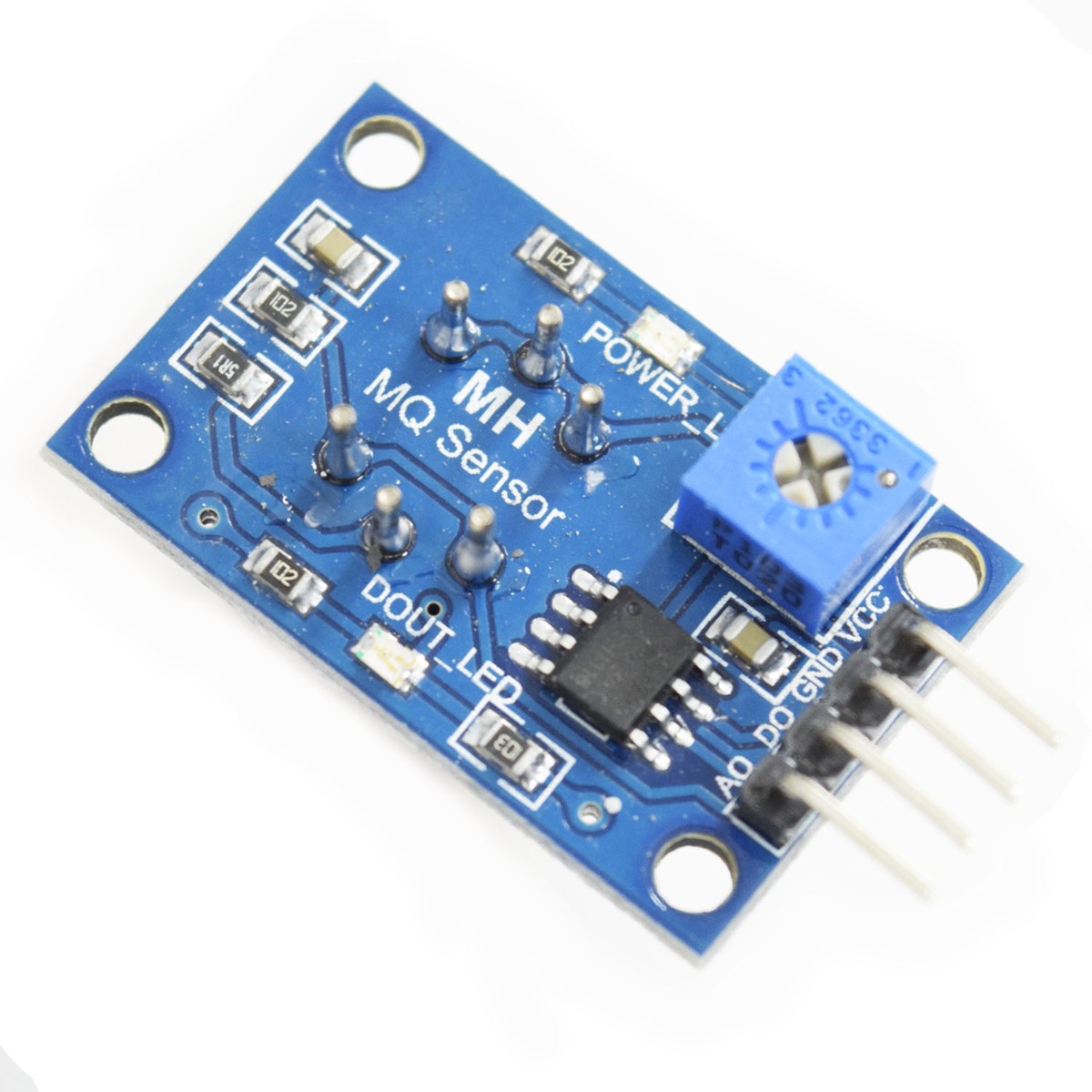

MQ-5 module LPG Gas City Gas sensor Module Gas sensor
Price 80.00 EG
In stock
About this item
MQ-5 module The MQ-5 sensor detects the concentration of CO (carbon monoxide) and flammable gases, the result can be obtained measuring the voltage on the analog output. The system is powered with the voltage of 5 V. The current consumption is about 150 mA. It has digital and analog output, making it compatible with most of the commissioning modules including Raspberry Pi and Arduino.
Total price 80.00 EG
Product Features
- Indication of the signal output.
- Dual signal output (analog output, and TTL level output)
- TTL output signal is low. (When low output signal light, and can be connected directly to the microcontroller)
- (0 ~ 5V) analog output voltage, the higher the concentration, the higher the voltage.
- Liquefied petroleum gas, natural gas, city gas, better sensitivity.
- Has a long life and reliable stability
- Fast response and recovery characteristics
Product Applications
- Gas Leakage Detection.
- Portable Gas Detectors.
- Air Quality Monitoring.
Specifications
| Type | Value |
|---|---|
| Power supply | 5 V |
| Current consumption | 150 mA |
| Outputs | analog and digital |
| Measuring range | 0 – 10,000 ppm |
| Operating temperature | -10 to 50 °C |
| Pins | goldpin connectors, 2.54 mm pitch |
| Dimensions | 35 x 22 mm |
| It has mounting holes with diameter | 3.2 mm |
| Main chip | LM393, ZYMQ-5 gas sensor |
