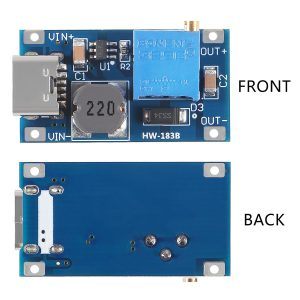

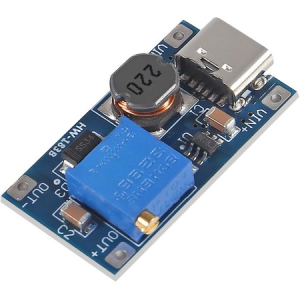

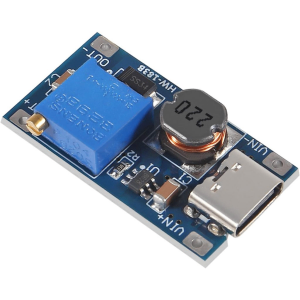

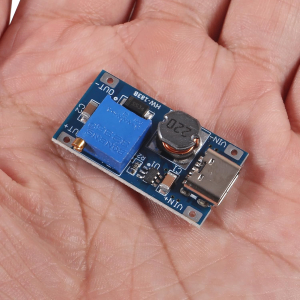

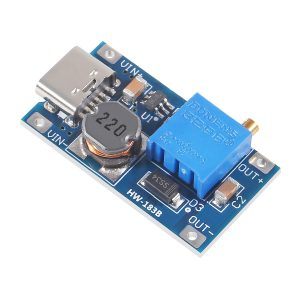

MT3608 DC-DC Step Up Power Boost Module 2A with Type-C USB
Price 35.00 EG
In stock
About this item
The MT3608 DC-DC Step Up Power Boost Module 2A with Type-C USB is a compact and efficient boost converter designed to step up input voltages from 2V to 24V to a stable output range of 5V to 28V. Equipped with a USB Type-C input, this module offers modern connectivity for various applications. Its high conversion efficiency, reaching up to 93%, ensures minimal energy loss, making it ideal for powering devices requiring higher voltage levels from a lower voltage source.
Total price 35.00 EG
Product Features
- Adjustable output voltage from 5V to 28V.
- Input voltage range: 2V to 24V.
- Maximum output current: 2A.
- High conversion efficiency up to 93%.
- USB Type-C input for modern connectivity.
- Compact and lightweight design.
- Overcurrent and overtemperature protection.
- Suitable for various applications including battery-powered devices and DIY projects.
Product Applications
- Powering devices requiring higher voltage from a lower voltage source.
- Battery-powered electronics projects.
- Portable power supplies.
- DIY electronics and prototyping.
- Educational purposes for learning about voltage conversion.
Specifications
| Type | Value |
|---|---|
| Input Voltage | 2V–24V DC |
| Output Voltage | 5V–28V DC |
| Maximum Output Current | 2A |
| Efficiency | Up to 93% |
| Input Connector | USB Type-C |
| Dimensions | 30mm x 20mm |
