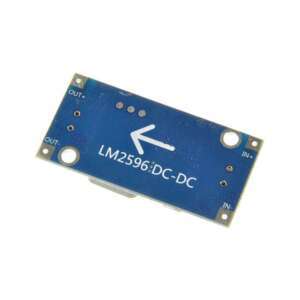

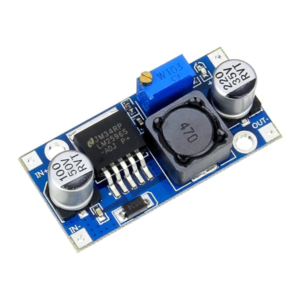

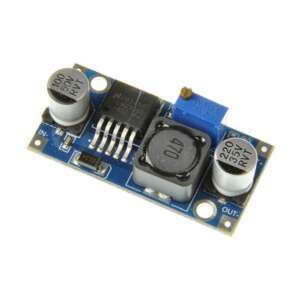

LM2596S DC-DC Converter 3A Step Down Module
Price 50.00 EG
In stock
About this item
DC-DC Buck Converter Step Down Module LM2596S Power Supply is a step-down(buck) switching regulator, capable of driving a 3-A load with excellent line and load regulation. These devices are available in fixed output voltages of 3.3 V, 5 V, 12 V, and an adjustable output version. The LM2596 series operates at a switching frequency of 150kHz, thus allowing smaller sized filter components than what would be required with lower frequency switching regulators.
Total price 50.00 EG
Product Features
- Input voltage:3-40V
- Output voltage:1.5-35V(Adjustable)
- Output current: Rated current is 2A, maximum 3A(Additional heatsink is required)
- Module Properties: non-isolated constant voltage module
- Rectification: non-synchronous rectification
- Short circuit protection: current limiting, since the recovery
Specifications
| Type | Value |
|---|---|
| Input voltage | 3-40V |
| Output voltage | 1.5-35V(Adjustable) |
| Output current | Rated current is 2A, maximum 3A(Additional heatsink is required) |
| Switching Frequency | 150KHz |
| Operating temperature | Industrial grade (-40 to +85 ) |
| Conversion efficiency | 92%(highest) |
| Load Regulation | ± 0.5% |
| Voltage Regulation | ± 0.5% |
| Dynamic Response speed | 5% 200uS |
| Dimension | 43.5 x 21 x 14mm(L x W x H) |
