L9110 Dual Channel Motor Driver Module
Price 35.00 EG
In stock
About this item

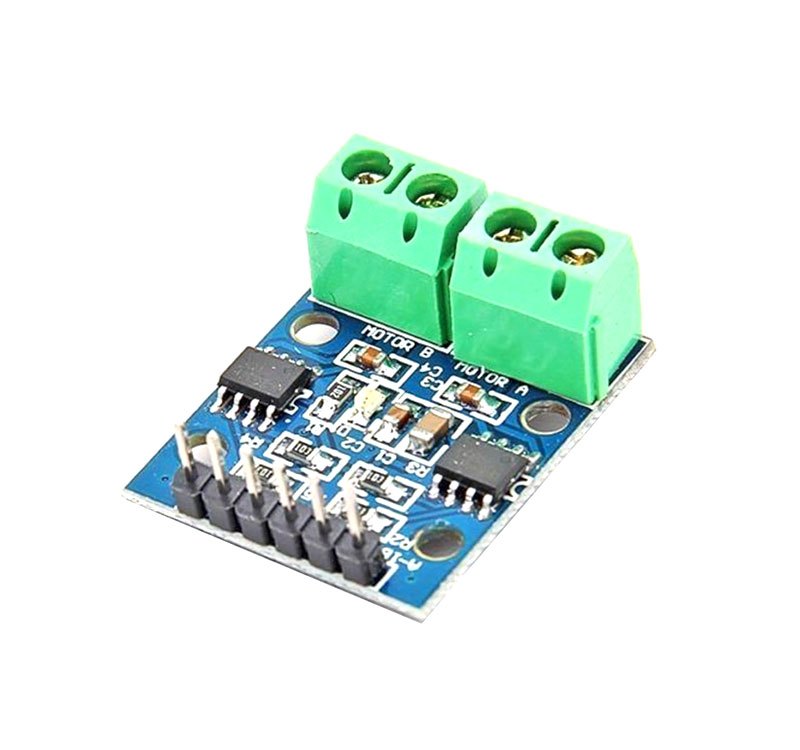

Motor Dual-Channel H-Bridge Driver Module L9110 12V 800mA – The Motor Dual-Channel H-Bridge Driver Module L9110 12V 800mA is a small board that can be used to drive small dc motors for robots. It holds two independent motor driver chips which can each drive up to 800mA of continuous current to the DC motor. This Motor Dual-Channel H-Bridge Driver Module L9110 12V 800mA is highly recommended for your Arduino Projects. This board can be operated from 2.5V to 12 of motor voltage. Small robots can be driven by the L9110S dual-channel H-bridge motor driver module, which is a small board. The L9110 Motor Driver IC is the foundation of this module. Two separate motor driver chips that can each drive up to 800mA of continuous current are present in this module. This module can be used with both 3.3 V and 5 V microcontrollers since the boards may be operated between 2.5 V and 12 V. The connection between this module and a microcontroller is made via a series of female header pins. Two sets of screw terminals are used to connect the motors.
Total price 35.00 EG
Product Features
- Working with a weak static current
- DC power supply voltage 2.5V – 12V
- Each channel can emit 800mA continuously.
- Motor channels: 2
- low decrease in saturation pressure
- Suitable with both TTL and CMOS output levels, direct CPU connection is possible.
- Apply the perceptual load using the built-in clamping diode as an output.
- The IC integrates control and drive..
- Working range: 0 to 80 degrees Celsius
- Size: 29mm x 23mm x 12mm
Product Applications

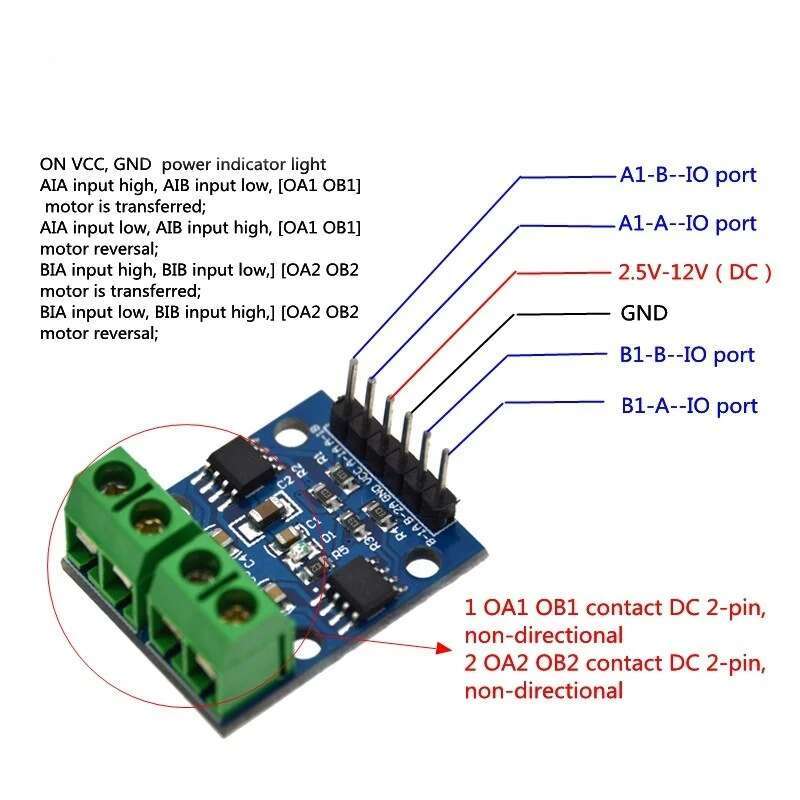

- 1 VCC external voltage 2.5V-12V
- 2 GND External GND
- 3 A1-A external microcontroller IO port
- 4 A1-B external microcontroller IO port
- 5 B1-A external microcontroller IO port
- 6 B1-B external microcontroller IO port
