High power motor drive module BTS7960 43A current limiting control semiconductor refrigeration drive
Price 500.00 EG
In stock
About this item

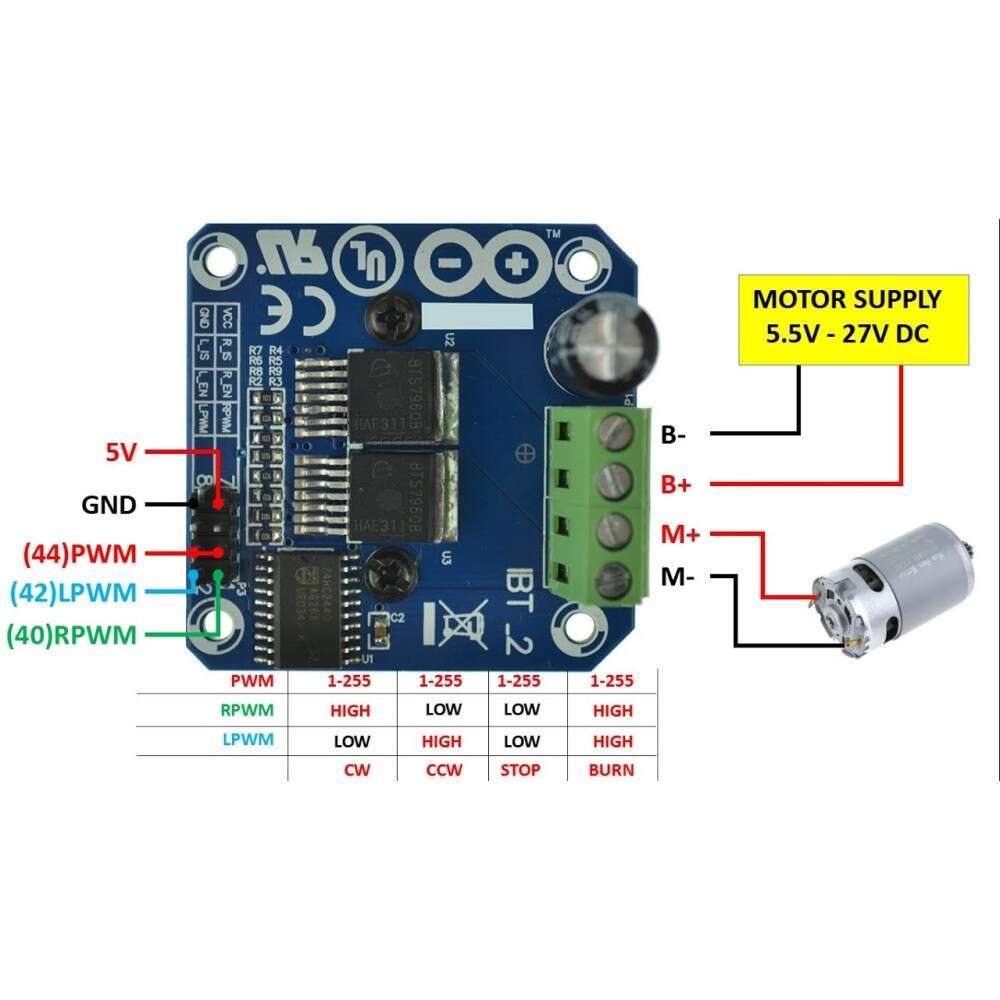

The H-Bridge High-Power DC Motor Driver 43A is a fully integrated H-bridge module engineered for driving high-current DC motors. Utilizing dual BTS7960 half-bridge drivers, it supports continuous currents up to 43A and operates within a voltage range of 6V to 27V. The module features logic-level inputs, current sensing, and comprehensive protection mechanisms, including overtemperature, overvoltage, undervoltage, overcurrent, and short-circuit safeguards. Its design ensures reliable performance in demanding applications, making it suitable for robotics, automation, and electric vehicle systems.
Total price 500.00 EG
Product Features
- Dual BTS7960 half-bridge drivers for high-current applications.
- Supports continuous current up to 43A.
- Wide operating voltage range: 6V–27V.
- Logic-level control inputs compatible with 3.3V and 5V systems.
- Integrated current sensing for diagnostics.
- Overtemperature, overvoltage, undervoltage, overcurrent, and short-circuit protection.
- PWM control capability up to 25kHz.
- Adjustable slew rate for optimized electromagnetic compatibility.
- Compact design with provisions for heat dissipation enhancements.

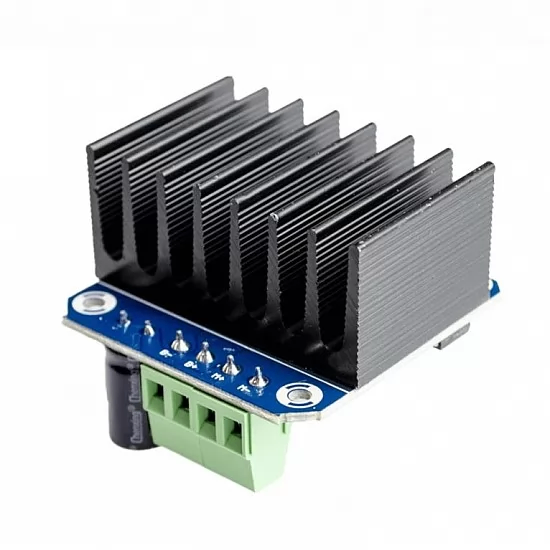

- Built in heat sink.
Product Applications
- High-power DC motor control in robotics and automation.
- Electric vehicle drive systems.
- Industrial conveyor and actuator control.
- DIY projects requiring robust motor control solutions.
