Ublox NEO-6M GPS Module HW-539A11
Price 565.00 EG
In stock
About this item

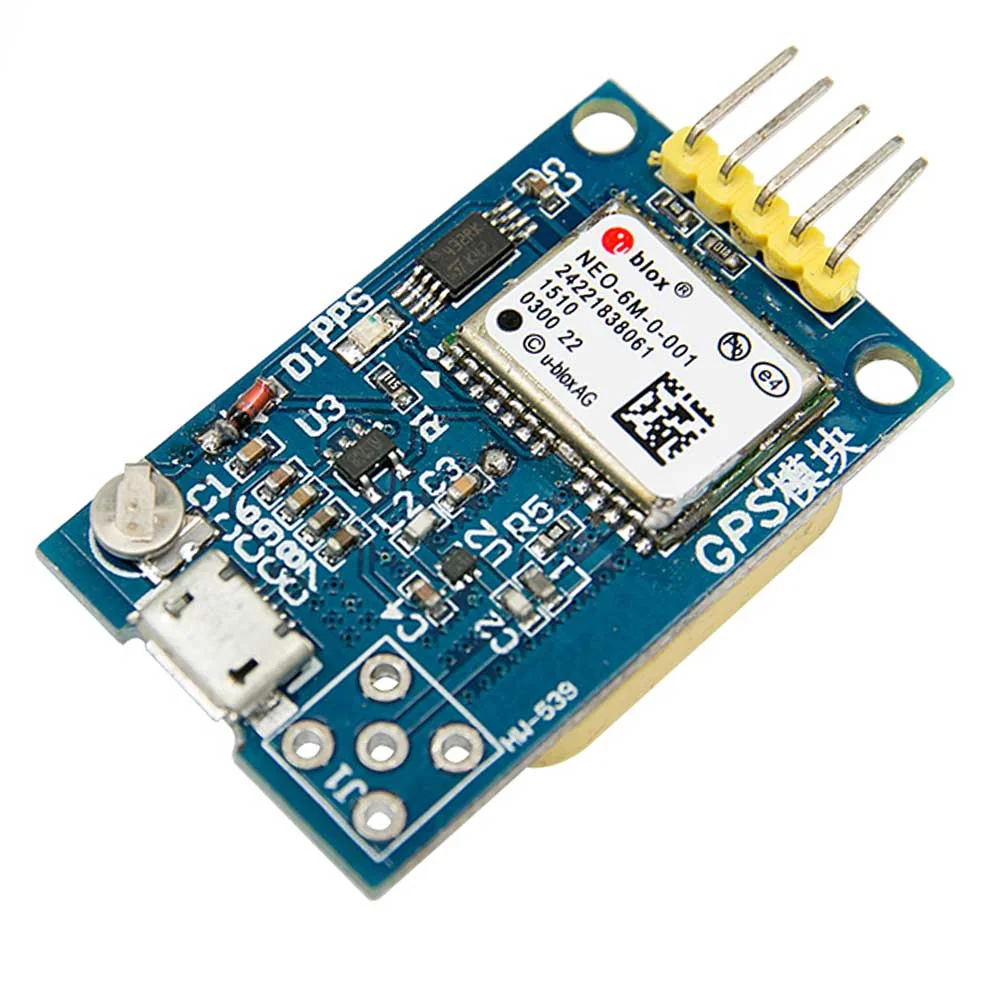

The Ublox HW-539 NEO-6M GPS Module engine on this board is a quite good one, with high precision binary output. It has also high sensitivity for indoor applications.
Total price 565.00 EG
Product Features
- Micro-USB Port Allows direct connection to PC.
- Status LEDs Power/fix indicators for easy signal lock feedback.

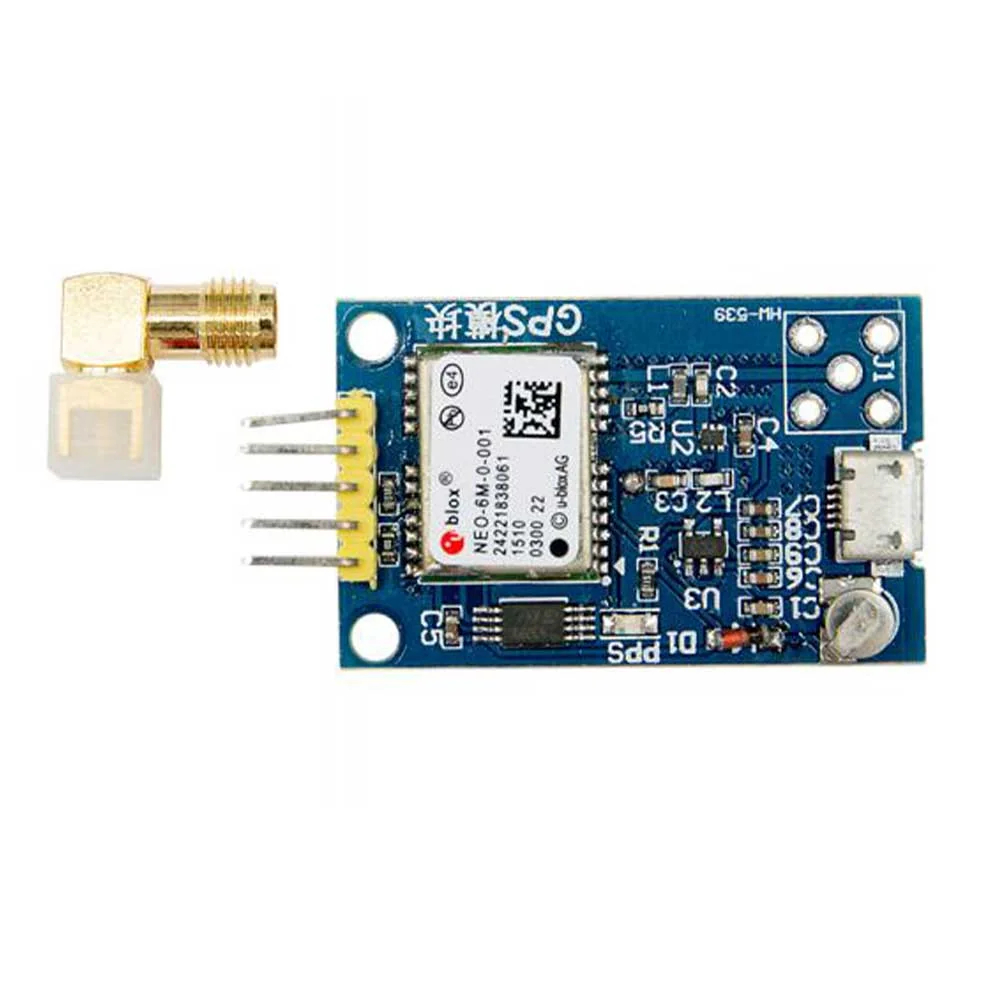

- External Antenna Interface SMA connector
- Able to use GPS as a really accurate clock, this board provides a PPS (pulse per second) signal. This is a highly accurate clock pulse coming off a pin on the GPS that NTP can use. If you have such a GPS the resource below is a must read.
- Compact and excellent performance
- Onboard ceramic passive antenna, able to search for the satellite in open area, and an external antenna is optional
- SMA port, convenient for connecting with the external active antenna, stronger satellite search ability
- A reserved TTL port, convenient for connecting to USB-TTL or external single chip microcomputer
- Back-up rechargeable battery
- UART TTL socket
- EEprom to save configuration settings
- Support hot start
Product Applications
- Supply voltage: 3.3V – 5VDC
- Operating current: 45mA
- Baud rates: 9600 (configurable from 4800 to 115200)
- Navigation update rate: 5Hz maximum (1HZ default)
- Capture time: Cool start: 27s (fastest)；Hot start: 1s
- Operating temperature range: -40 to +85°C
- Separated 18 X 18mm GPS antenna
- Dimension: 22 X 30 X 13mm
- Weight: 19g
