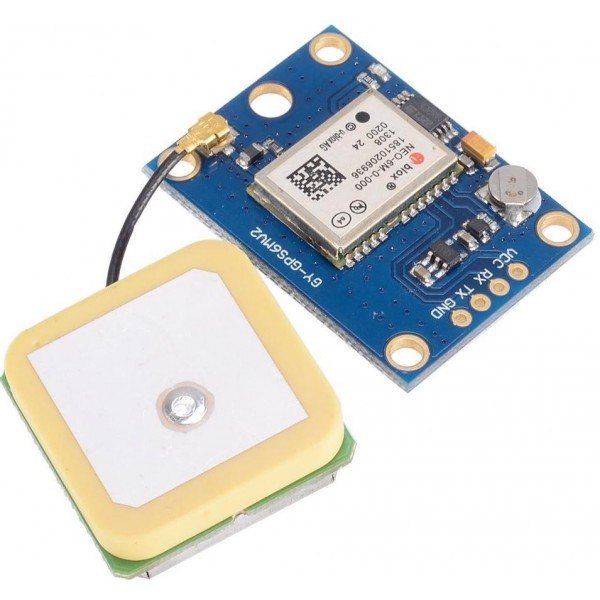

GY-NEO6MV2 flight control GPS module APM2.5 flight control NEO-6M
Price 420.00 EG
In stock
About this item
Ublox NEO-7M GPS Module: Cost-effective, high-sensitivity GNSS module with fast acquisition, low power consumption, and support for GPS, GLONASS, QZSS, and SBAS. Compact and versatile.
Total price 420.00 EG
Product Features
- Based on u-Blox NEO-6M GPS module with onboard backup battery and built-in EEPROM.
- Comes with an external U.FL ceramic antenna for better reception.
- It is compatible with various flight controller boards designed to work with a GPS module, APM2.0, and APM2.5 just to name a few.
- This module has a built-in voltage regulator and it is sometimes referred to as GY-GPS6MV2.
- Navigate down to –162 dBm and –148 dBm cold start.
- EEPROM to save configuration settings.
- Faster acquisition with AssistNow Autonomous.
- Configurable power management.
- Hybrid GPS/SBAS engine (WAAS, EGNOS, MSAS).
- Standalone GPS receiver.
- Anti-jamming technology.
- Compatible with u-Blox GPS Solution for Android.
- A-GPS: AssistNow Online and AssistNow Offline services OMA SUPL compliant.
- Under 1 second time-to-first-fix for hot and aided starts.
- Time-To-First-fix: For Cold Start 32s, For Warm Start 23s, For Hot Start <1s.
- UART Interface at the output pins (Can use SPI, I2C, and USB by soldering pins to the chip core).
Product Applications
- GPS Navigation Systems.
- Aircraft Positioning.
