GPS module NEO-6M satellite positioning 51 SCM STM32 routine
Price 410.00 EG
In stock
About this item

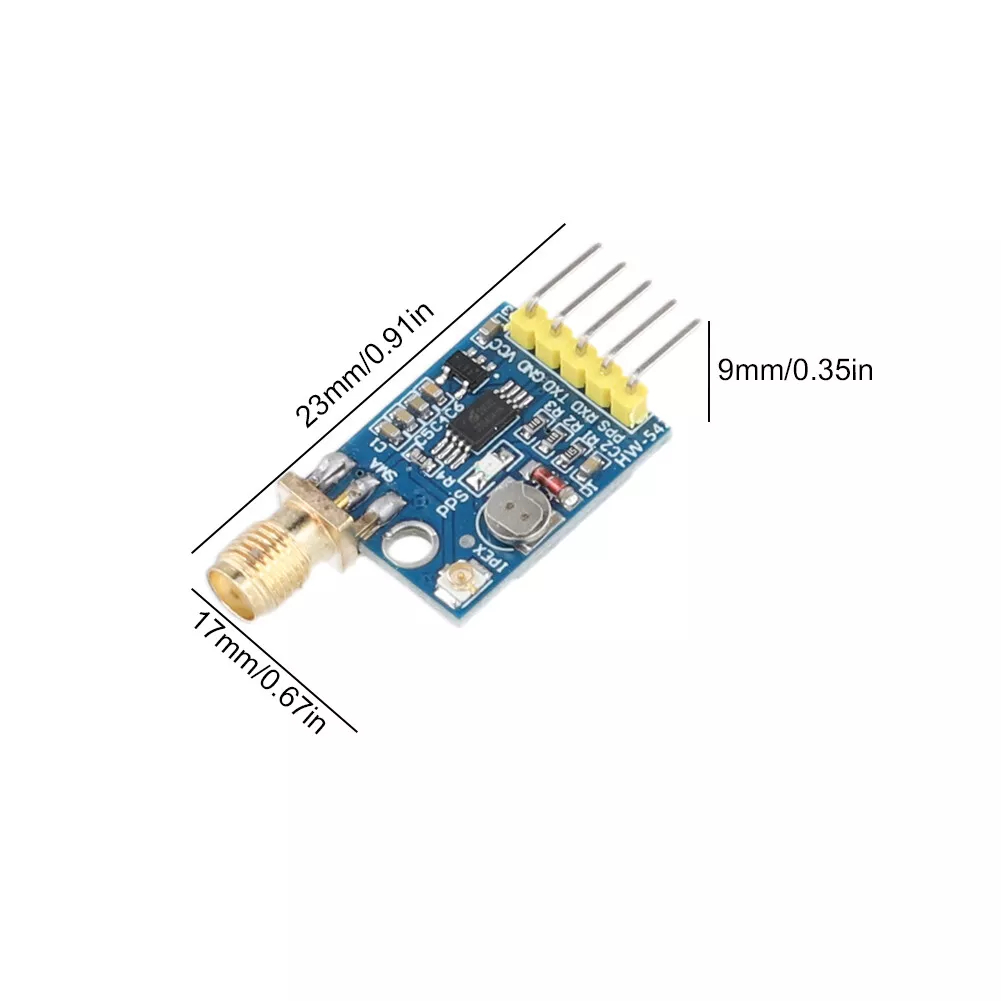

The HW-542 is a compact breakout board centered on the Ublox NEO-6M GPS engine. It integrates a 50-channel u‑blox 6 positioning engine in miniature form.
Total price 410.00 EG
Product Features
- Position Update Rate Up to 5Hz for real-time tracking.
- Baud Rate Configurable from 4800 to 115200 (default 9600).
- Configuration Storage EEPROM to save settings.
- Backup Battery Rechargeable for faster startups.
- Startup Times Cold start 27 seconds, hot start 1 second.
- Tracking Sensitivity -161 dBm for reliable performance.
- Operating Temperature -40°C to 85°C, suitable for harsh environments.
- Satellite Support Supports SBAS (WAAS, EGNOS, MSAS, GAGAN) for enhanced accuracy.
- Antenna External via SMA connector for strong signal reception.
- Power Compatibility Supports 3.3V and 5V power supplies.
- Timing Output Pulse Per Second (PPS) for precise time synchronization.
Product Applications
- Navigation Devices.
- Drones & UAVs.
