GPS module NEO-7M satellite positioning 51 SCM STM32 routine
Price 450.00 EG
In stock
About this item

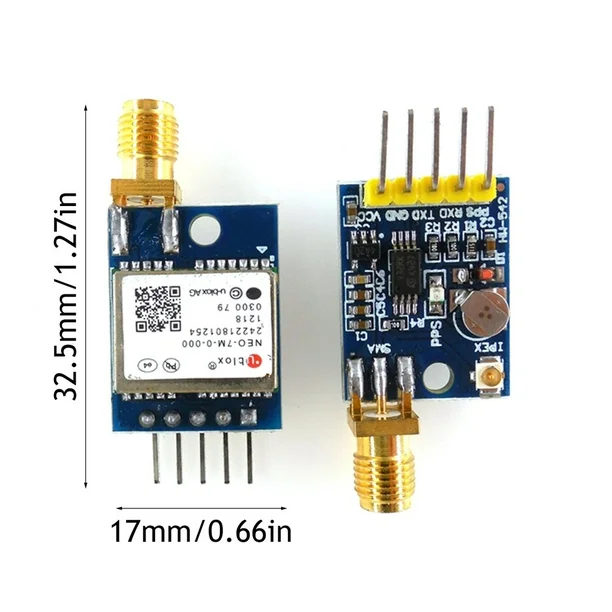

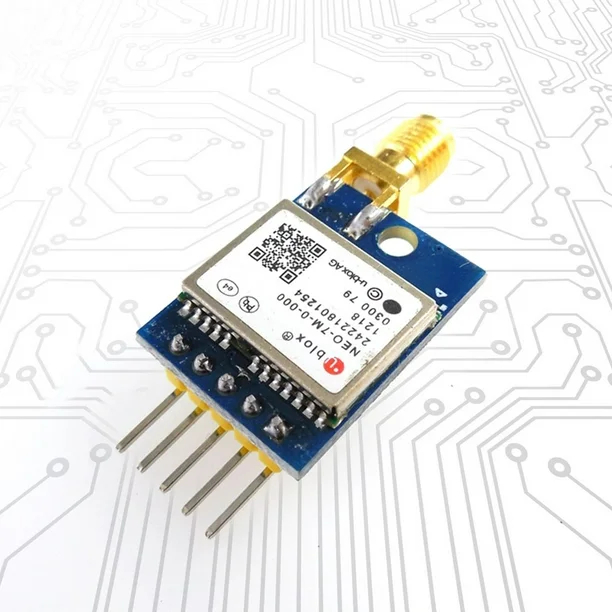

HW-542B is a GPS receiver board built around the Ublox NEO-7M chipset. It provides highly accurate, low-power GPS positioning using the u‑blox 7 series GNSS engine.
Total price 450.00 EG
Product Features
- GNSS Support Supports GPS, GLONASS, QZSS, and SBAS (WAAS, EGNOS, MSAS) for enhanced positioning accuracy.
- Position Update Rate Up to 10 Hz for real-time tracking.
- Time to First Fix Cold start: 30 seconds; Hot start: 1 second.
- Position Accuracy 2.5 meters (autonomous), 2.0 meters (with SBAS).
- Sensitivity Tracking and navigation: -161 dBm; Cold start: -147 dBm.
- Interfaces UART.
- Power Supply Compatible with 3.3V to 5V systems, likely via an onboard voltage regulator.
- Backup Battery Rechargeable battery for faster startups and maintaining settings.
- EEPROM Stores configuration settings for persistent operation.
- Antenna SMA connector for optimal signal strength.
- Operating Temperature -40°C to 85°C, suitable for diverse environments.
- Timing Output Pulse Per Second (PPS) signal for precise time synchronization.
Product Applications
- Navigation Devices.
- Drones/UAVs and robotics.
