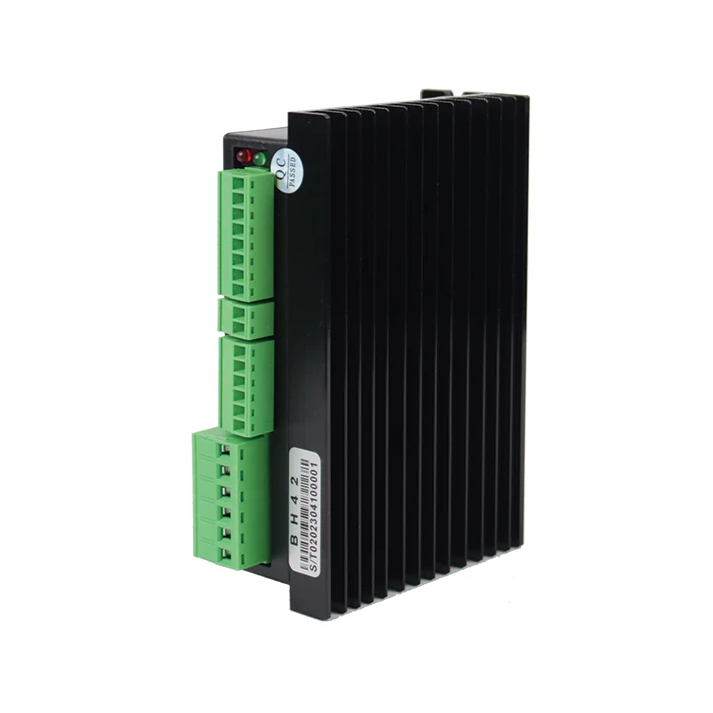

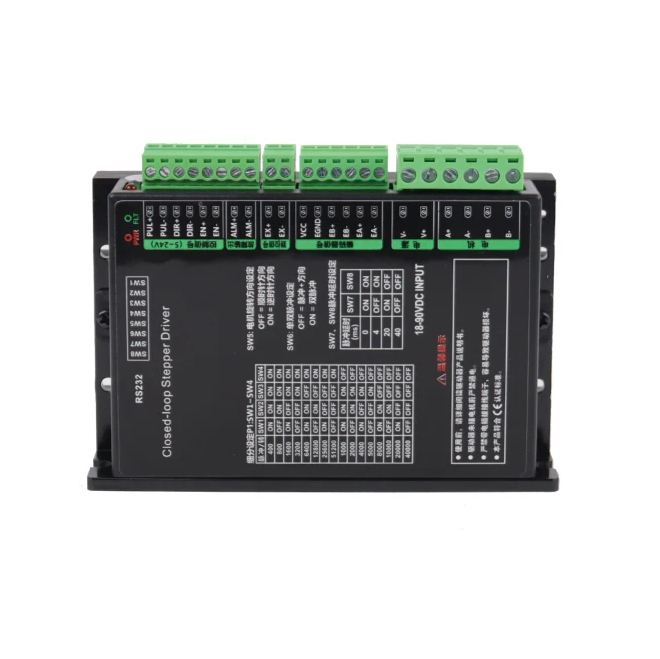

Closed Loop 57 Stepper Motor Driver 18-90VDC 3-6A
Price 3,900.00 EG
In stock
About this item
Advanced 57 closed-loop driver for NEMA 23/34 motors, compatible with 18–90 VDC input, offering up to 8 A peak current and eliminating lost steps for precision control.
Total price 3,900.00 EG
Product Features
- Closed-loop servo-grade control eliminates step loss and torque reservation
- Configurable peak current 3 – 6 A via DIP or software.
- Microstepping from 400 to 51,200 steps/rev via DIP or RS‑232.
- Wide 18–90 VDC input range for flexible power setups.
- Supports 5–24 V logic input, compatible with stepper controllers and PLCs.
- Auto PID tuning and self-test reduce setup time and guarantee optimal performance.
- Fault detection via encoder and protective LED indicators.
- Triple-layer protections: over‑voltage, over‑current, and position-follow error.
Product Applications
- High-precision closed-loop CNC machines, laser cutters, and plasma routers.
- Encoder-based 3D printers, pick-and-place robotics, and industrial automation.
- Systems requiring full-torque at low speeds, zero-step loss, and industrial-grade reliability.
