Harmonic Drive Gearbox X17-34-30A Ratio 1:30 with NEMA 17 Stepper Motor
Price 10,850.00 EG
In stock
About this item

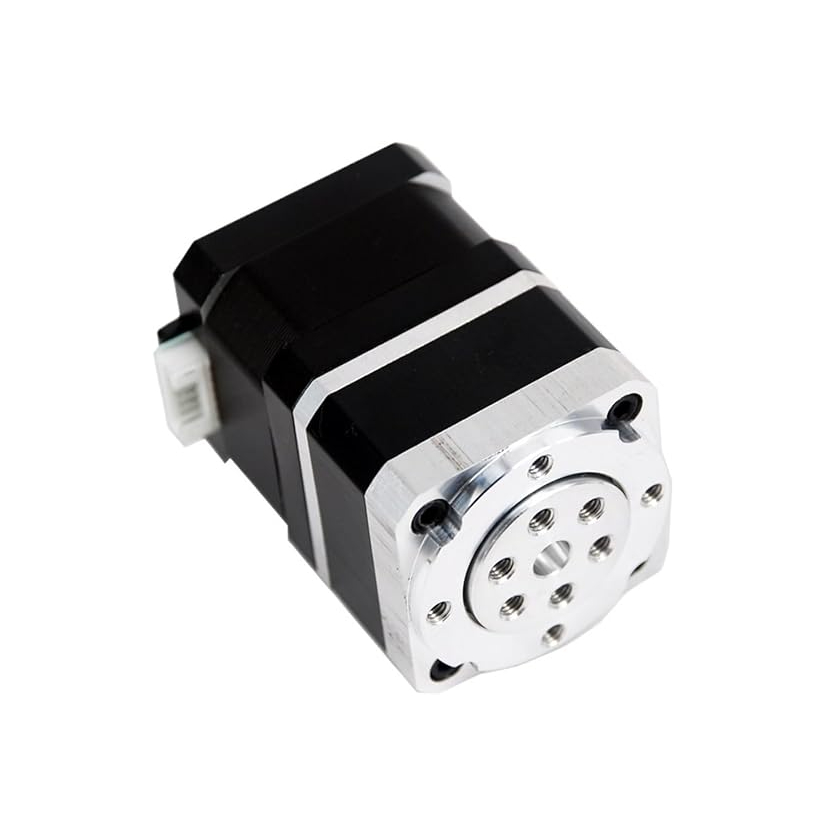

The X17-34-30A combines a standard NEMA 17 hybrid stepper motor with a 30:1 harmonic‑drive gearbox into a remarkably compact 60 mm‑long assembly. Retaining the familiar 42 × 42 mm flange and 34 mm stack, it delivers 2.2 N·m of continuous torque at just 1.4 A per phase. Unlike typical planetary gearmotors, its flex‑spline design achieves less than 2 arc‑min of backlash, providing ultra‑smooth, near‑perfect positional accuracy. This intrinsic precision eliminates mechanical “dead zones” and ensures repeatable motion under bidirectional loads.
Total price 10,850.00 EG
Product Features
- Integrated 1:30 harmonic‑drive gearbox for near‑zero backlash (≤ 2 arc‑min).
- Rated current 1.4 A per phase for moderate power draw.
- High continuous output torque of 2.2 N·m.

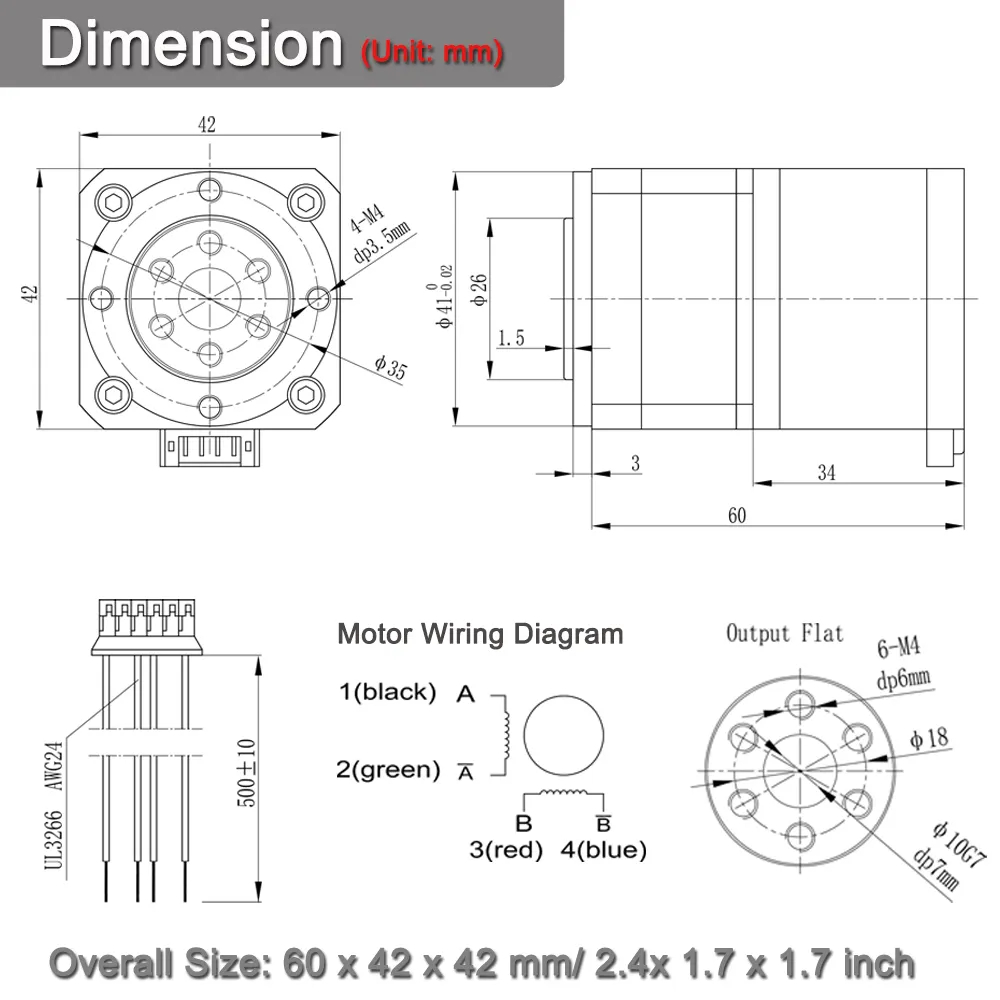

- Compact total length of 60 mm for space‑constrained designs.

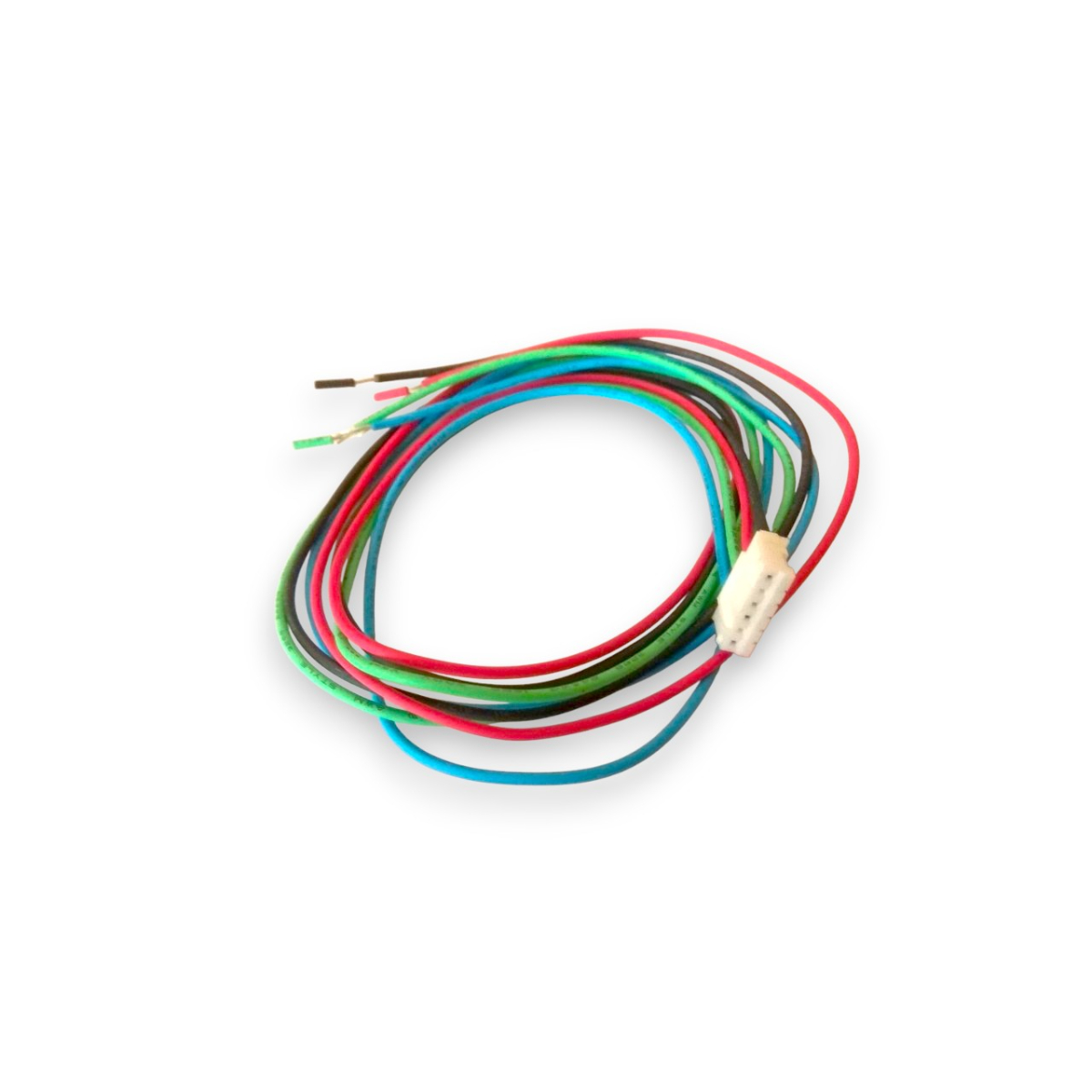

- Bipolar, two‑phase (4‑wire) winding compatible with standard stepper drivers.
- High torsional stiffness and positional accuracy.
- Insulation class B and robust mechanical construction for long service life.
Product Applications
- High‑precision robotic joints and gimbals.
- Compact rotary stages and CNC indexers.
- Optical/medical positioning systems.
- Automation requiring ultra-low backlash.
