NEMA 16 Stepper Motor 39BYGH40
Price 475.00 EG
In stock
About this item

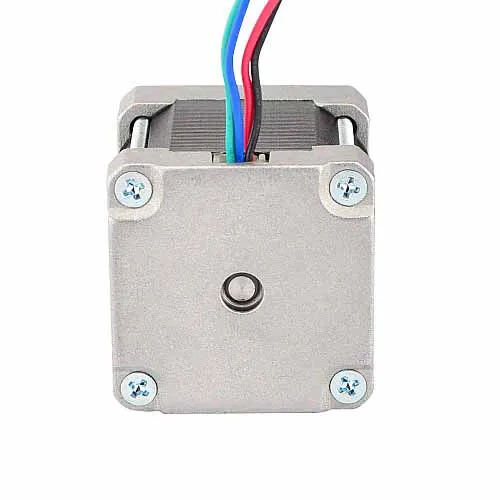

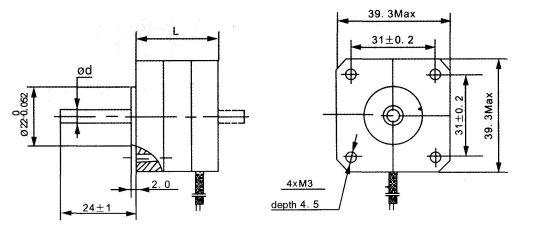

The 39BYGH40 is a two-phase hybrid stepper motor in the NEMA 16 frame (39 × 39 mm flange), featuring a compact 40 mm body and 1.8° (200 steps per revolution) resolution. It is available in bipolar configuration with rated current 0.3 A – 0.4 A per phase, phase resistance 30 Ω – 40 Ω, and holding torque between 0.11 Nm – 0.21 Nm. Phase inductance ranges from 20 mH – 45 mH, and rotor inertia spans 20 g·cm² – 32 g·cm², depending on the specific model. The motor uses a 5 mm round shaft, offers insulation resistance of ≥ 100 MΩ at 500 VDC, dielectric strength of 500 VAC for 1 min, temperature rise up to 80 °C, and supports ambient operation from –20 °C to +50 °C.
Total price 475.00 EG
Product Features
- 1.8° (200 steps/rev) step angle with ±5 % accuracy.
- Bipolar, 2‑phase wiring suitable for standard stepper drivers.
- Rated current 0.3 A – 0.4 A per phase.
- Phase resistance 30 Ω – 40 Ω.
- Holding torque 0.11 Nm – 0.21 Nm.
- Phase inductance 20 mH – 45 mH.
- Rotor inertia 20 g·cm² – 32 g·cm².
- 5 mm shaft for compact coupling.
- High insulation (>100 MΩ @ 500 VDC) and dielectric strength (500 VAC / 1 min).
- Capable of continuous operation with ≤ 80 °C rise; ambient range –20 °C to +50 °C.
Product Applications
- Small robotics and compact actuator systems.
- Precision positioning in measurement and control devices.
- Light-duty conveyor and pick‑and‑place mechanisms.
- Educational kits and automated instrument axes.
- Camera gimbals and imaging platforms.
