Nema 23 3-Phase Stepper Motor 60BYGH50
Price 1,175.00 EG
In stock
About this item

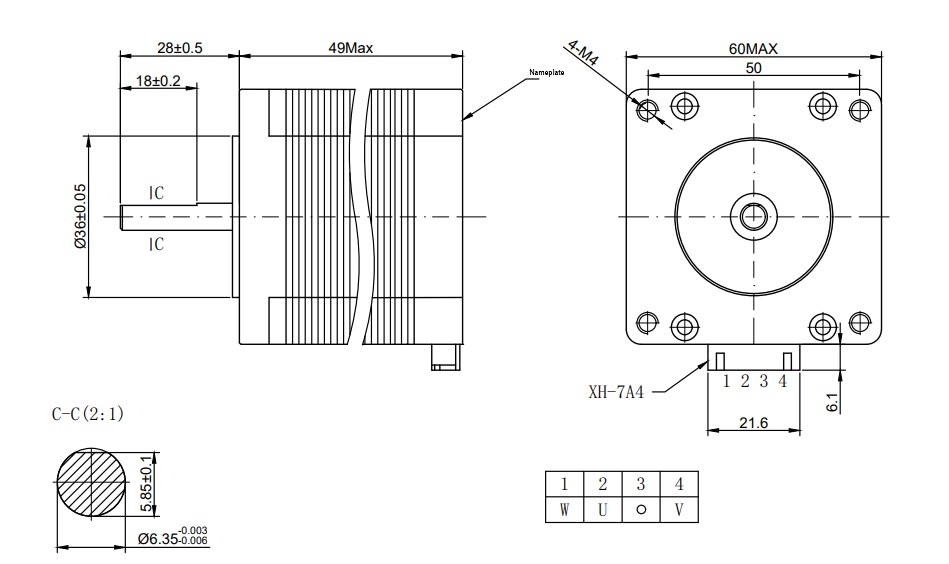

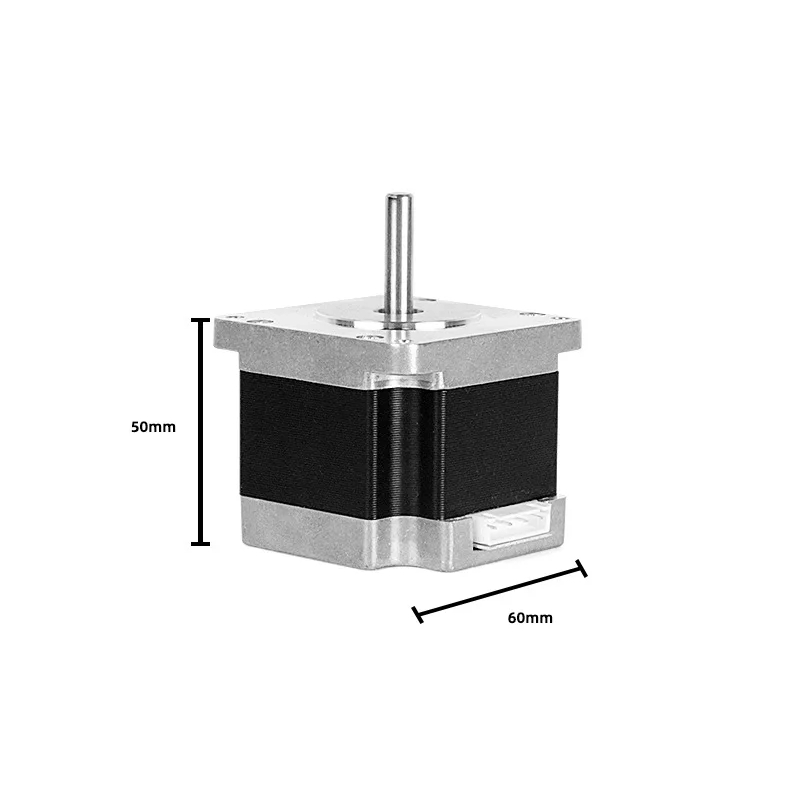

The Nema 23 Stepper Motor 60BYGH50 features a 50 mm stack and a 1.8° step angle, wired internally in a star (Y) configuration with three phase leads. Rated at 1.3 A per phase and 7.8 VDC, it delivers 0.65 Nm of holding torque while maintaining insulation ≥100 MΩ@500 VDC and dielectric strength of 500 VAC for 1 min. Its 6.35 mm D-shape shaft and robust thermal design (≤ 80 °C rise) ensure reliable performance in demanding motion-control applications.
Total price 1,175.00 EG
Product Features
- 1.8° step angle with ±5 % accuracy.
- Three-phase star (Y) winding with 3-wire cable.
- Rated current 1.3 A per phase.
- Holding torque 0.65 Nm.
- Phase resistance 6.0 Ω with ±10 % tolerance.
- Phase inductance 13.0 mH with ±20 % tolerance.
- Insulation ≥100 MΩ@500 VDC; dielectric 500 VAC for 1 min.
- Temperature rise under load ≤ 80 °C.
Product Applications
- CNC routers, mills, and engraving machines.
- 3D printers and additive-manufacturing systems.
- Robotic actuators and positioning stages.
- Automated inspection and pick-and-place equipment.
- Precision motion control in laboratory and medical devices.
