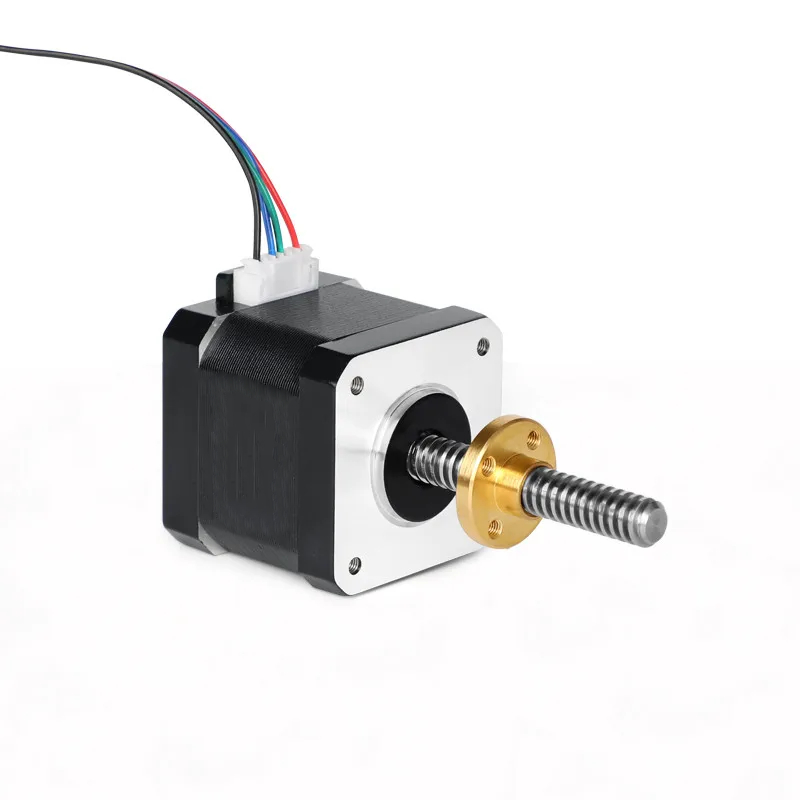

NEMA 17 Stepper Motor 42HS40 with 50mm M8 Lead Screw & Nut
Price 650.00 EG
In stock
About this item
The Stepper Motor NEMA 17 40 mm with Attached 50mm M8 Lead Screw & Nut combines a standard 42×42 mm flange, 1.8° step angle, and 40 mm body length motor with an integrated M8 lead screw and anti-backlash nut. This all-in-one actuator delivers smooth rotary-to-linear motion, simplifying assembly and ensuring repeatable positioning in tight spaces.
Total price 650.00 EG
Product Features
- 1.8° step angle with ±5 % accuracy.
- Bipolar, 2-phase (4-wire) configuration.
- Rated current 1.3 A – 1.7 A.
- Holding torque 0.41 Nm – 0.45 Nm.
- Integrated 8 mm lead screw with anti-backlash nut.
- Insulation resistance ≥100 MΩ@500 VDC.
- Ambient operating range –20 °C – +50 °C.
- Temperature rise under load ≤80 °C.
Product Applications
- Compact linear stages in 3D printers.
- Small-format CNC mills and routers.
- Laboratory syringe and dispensing pumps.
- Automated camera sliders.
- Medical device actuators.
