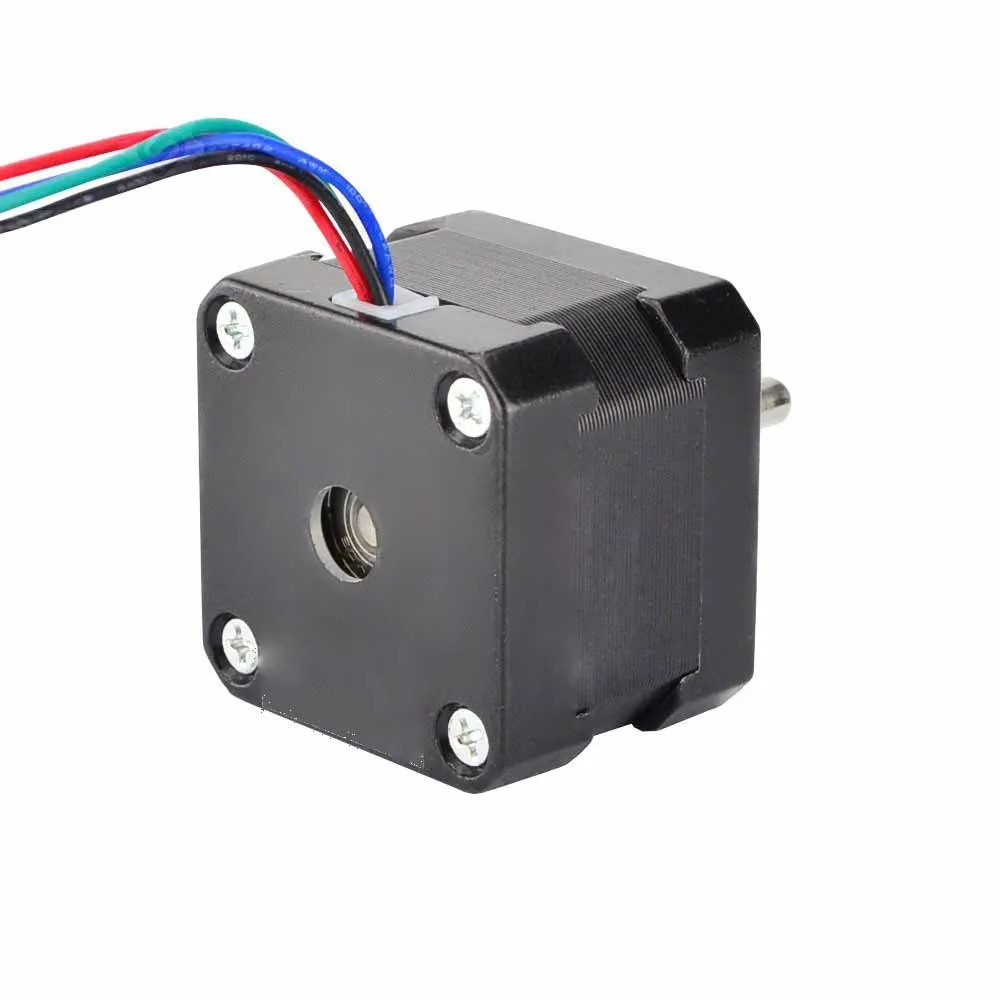

NEMA 17 Stepper Motor 17HS13-1334S
Price 425.00 EG
In stock
About this item
The NEMA 17 Stepper Motor 17HS13-1334S is a two-phase hybrid motor designed for precision motion control with a 1.8° step angle and 200 steps per revolution. Featuring a rated current of 1.3A per phase, 2Ω phase resistance, and a 32mm housing length, it provides a compact yet capable solution for demanding automation tasks.
Total price 425.00 EG
Product Features
- 1.8° step angle for precise control.
- Rated current: 1.3A per phase.
- Phase resistance: 2Ω.
- Compact 32 mm motor body.

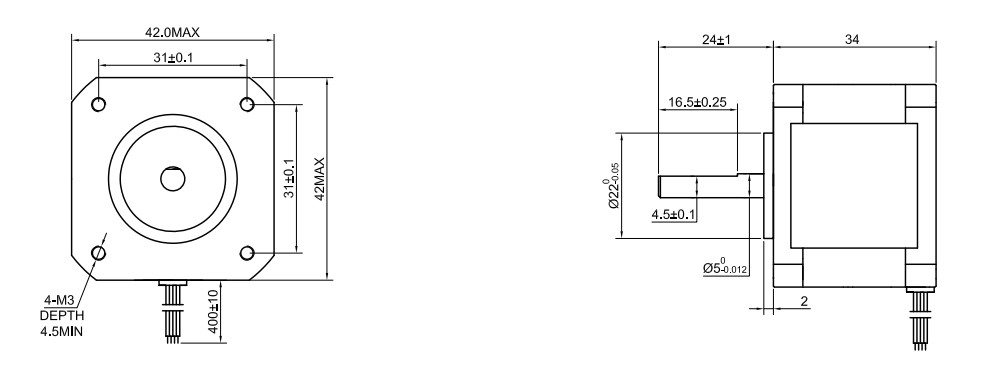

- NEMA 17 (42 × 42 mm) standard mounting flange.
- 4-lead bipolar configuration for driver compatibility.
- Compatible with A4988, DRV8825, and similar stepper drivers.
- Insulation class B for thermal protection.
Product Applications
- Compact desktop CNC and miniature milling axes.
- 3D printer extruders and dual-gear feeders.
- Small-scale robotics and actuator mechanisms.
- Optical positioning and precision instruments.
- Educational and hobbyist motion-control projects.
