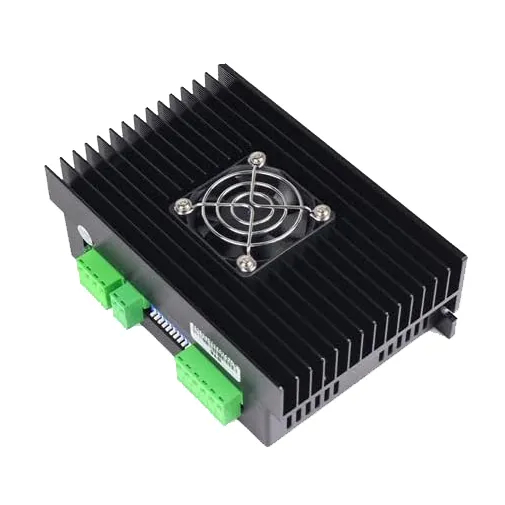

ST8 Digital Stepper Motor Driver 20-110VAC/20-160VDC 2.2-8.2A
Price 3,000.00 EG
In stock
About this item
The ST8 is a high‑performance drive utilizing DSP-based PI current control, designed for two-phase hybrid stepper motors. It accepts 20–110 VAC or 20–160 VDC, delivers 2.2–8.2 A peak output current, and supports step & direction or CW/CCW pulse signals, switch-selectable. With 16-position microstepping (up to 1/100 internal resolution), robust protections against over-voltage, over-current, phase faults, and built-in idle-current halving, the ST8 delivers smooth, low-noise, and low-heat operation across a wide speed range.
Total price 3,000.00 EG
Product Features
- Wide input voltage range: 20–160VDC or 20–110VAC.
- Peak output current up to 8.2A.

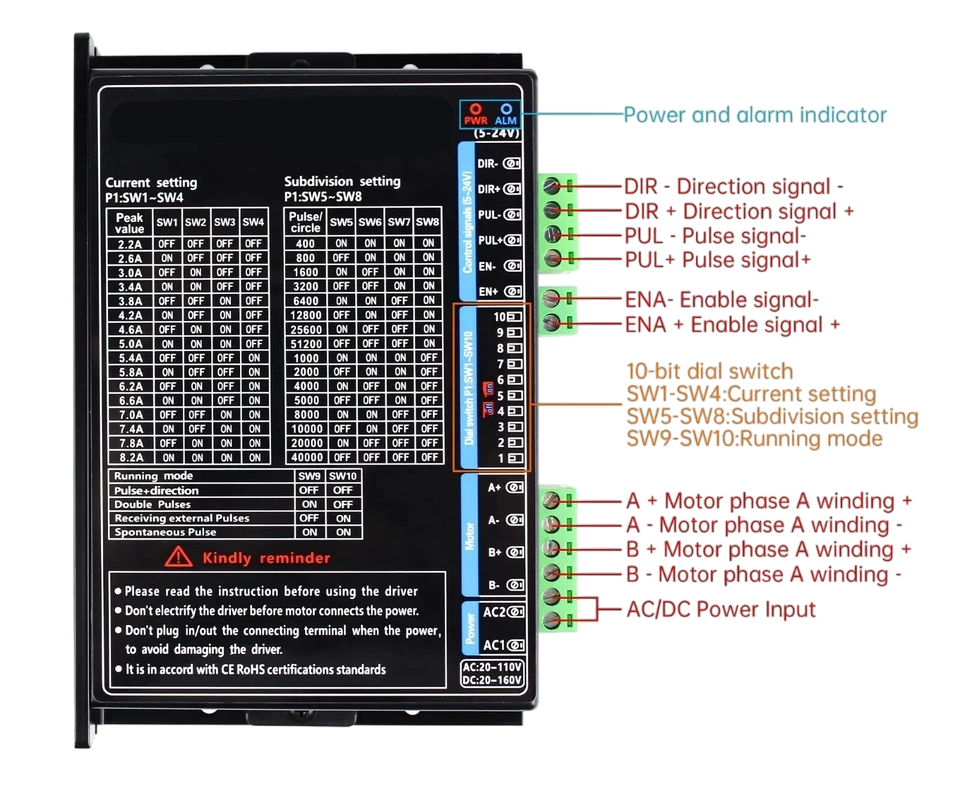

- Supports single-ended and differential pulse inputs.

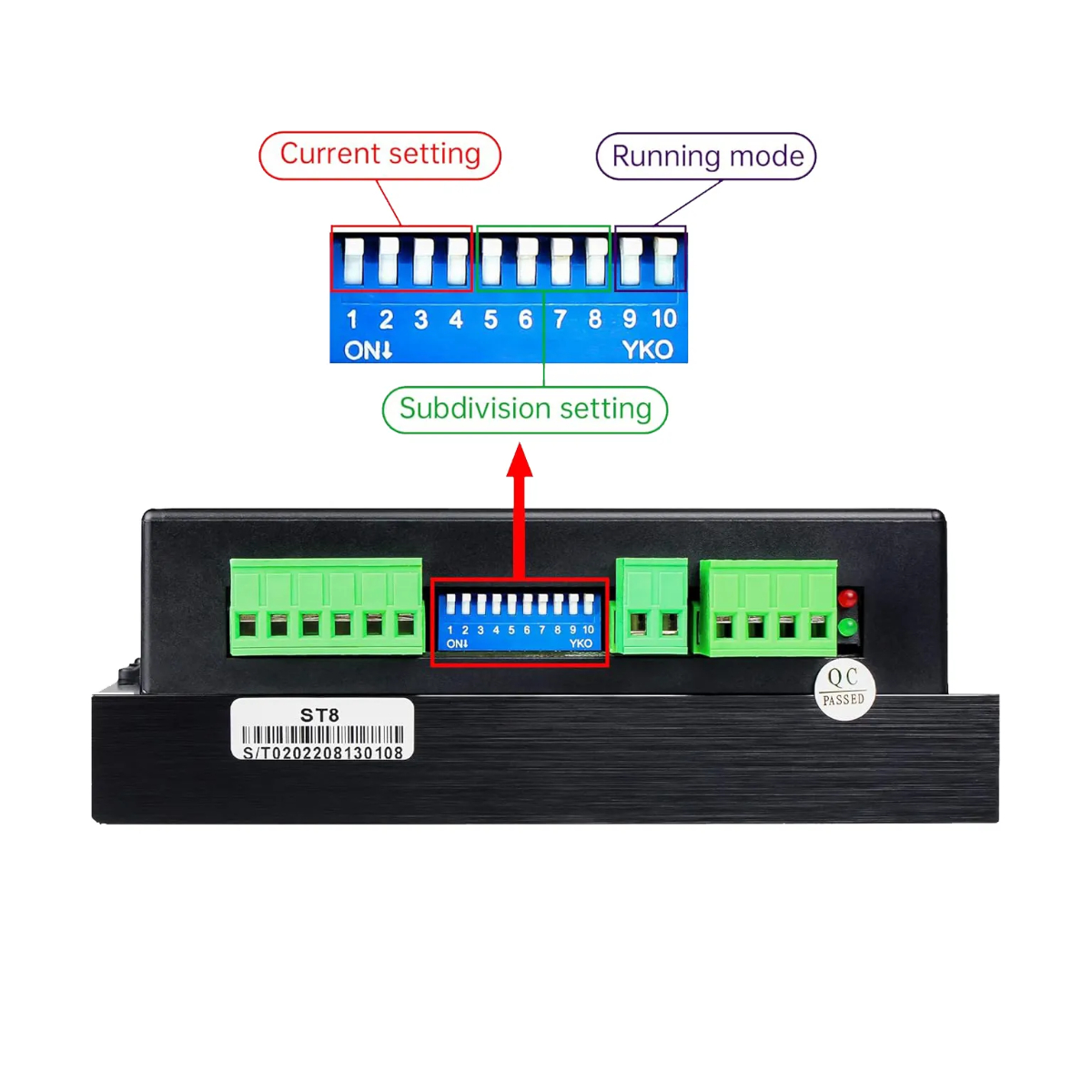

- Microstepping resolution up to 51,200 steps per revolution.
- PI control algorithm for smooth and quiet operation.
- Built-in protections: over-voltage, under-voltage, over-current, and overheating.
- Compatible with NEMA 34 stepper motors.
- Compact design for easy system integration.
Product Applications
- CNC milling machines.
- 3D printers.
- Robotics and automation systems.
- Laser engraving machines.
- Medical equipment.
- Textile machinery.
- Packaging machinery.
- Stage lighting systems.
