Nema 42 Stepper Motor 110BYGH115-6004
Price 8,100.00 EG
In stock
About this item
The NEMA 42 Stepper Motor 110BYGH115-6004 is a robust 2-phase hybrid stepper motor designed to deliver high torque and precise positioning in demanding applications. With a 1.8° step angle and a holding torque of 12N·m, it offers reliable performance for CNC, robotics, and industrial automation. The motor operates at a rated current of 6A per phase and features a 4-wire bipolar configuration for straightforward integration. Its 115mm body length and 19mm shaft (with keyway) make it suitable for installations requiring both power and compactness.
Total price 8,100.00 EG
Product Features
- 1.8° step angle for accurate positioning.
- Holding torque of 12N·m for heavy-duty loads.
- Rated current of 6A per phase for high power output.

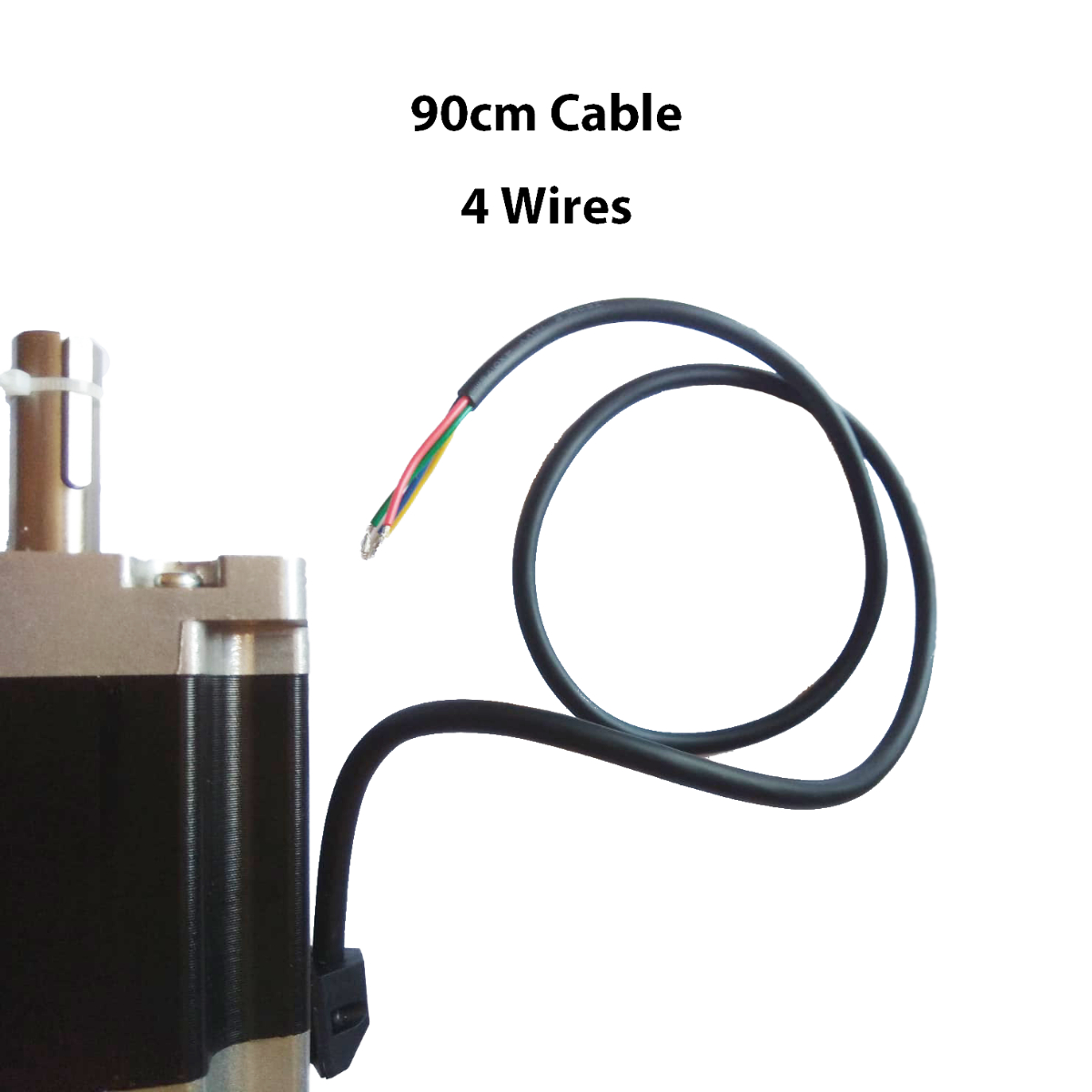

- 4-wire bipolar configuration for compatibility with standard drivers.

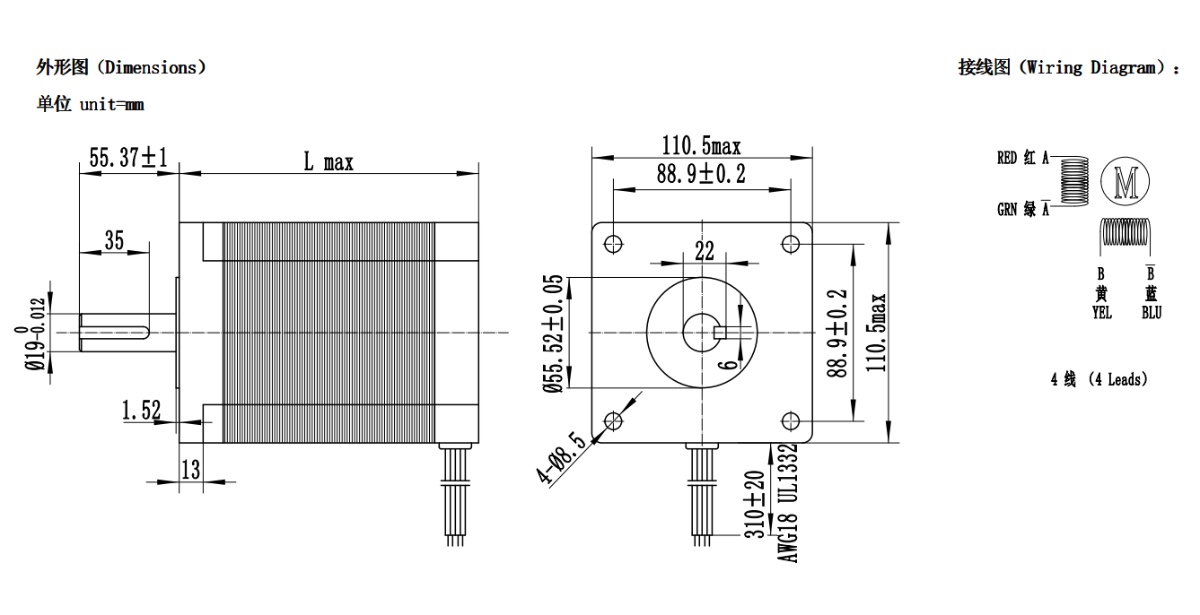

- 115mm motor length for versatile integration.
- 19mm shaft with keyway for secure coupling.
- Durable construction and low cogging for smooth motion.
Product Applications
- 3D printers.
- CNC milling machines.
- Robotics and automation systems.
- Laser engraving machines.
- Medical equipment.
- Textile machinery.
- Packaging machinery.
- Stage lighting systems.
