NEMA 34 Stepper Motor 86BYGH156
Price 3,900.00 EG
In stock
About this item
The DM860H is a robust DSP‑driven hybrid stepper driver optimized for two‑phase and four‑phase NEMA 23–34 motors. It accepts 18–80 VAC or 24–110 VDC, delivers 2.4–7.2 A peak output current via SW1–SW3, and offers 400–25,600 steps/rev microstepping via SW5–SW8. Key functions include auto‑tuning/self‑test, anti‑resonance smoothing to eliminate mid‑speed instability, soft‑start to prevent motor kick, and idle‑current reduction for lower heat.
Total price 3,900.00 EG
Product Features
- Standard 1.8° step angle for precise motion control.
- High holding between 8.1Nm–12.5Nm.
- Rated current per phase 6A.
- Phase resistance of 0.5Ω.
- Phase inductance between 5mH–9mH.
- Four-lead configuration for bipolar driving.

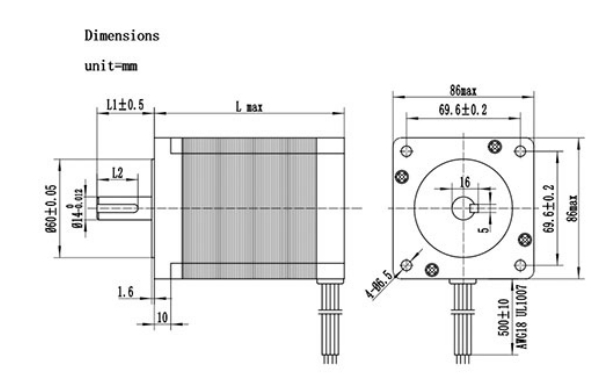

- Robust 156mm body length.
- Keyway shaft for secure coupling.
- Suitable for high-precision applications.
Product Applications
- CNC milling and routing machines.
- 3D printers requiring high torque.
- Robotics and automation arms.
- Industrial conveyor and pick-and-place systems.
- Packaging and textile machines.
