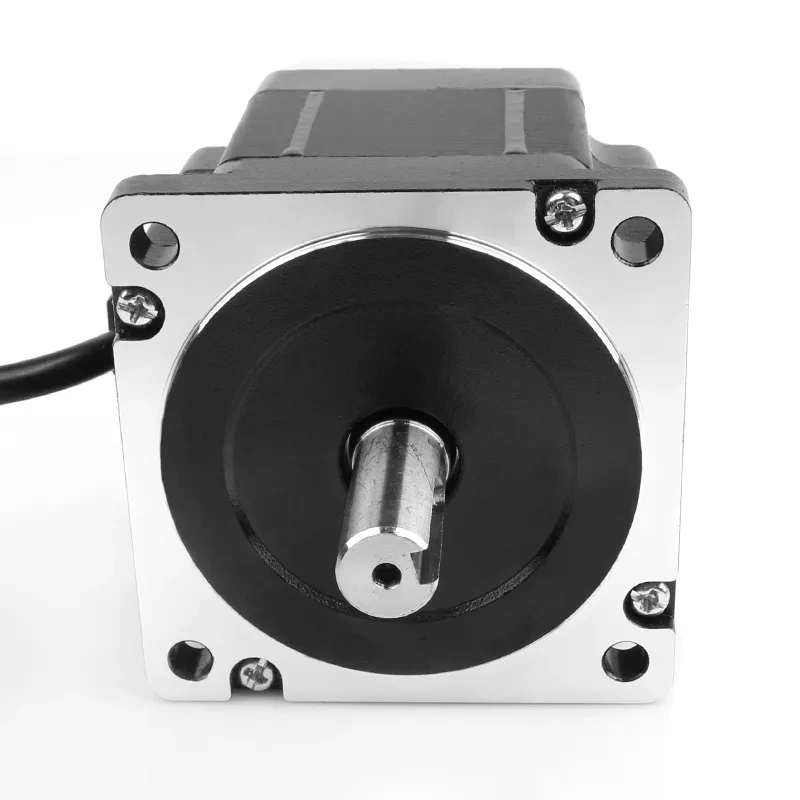

NEMA 34 Stepper Motor 86BYGH80
Price 2,450.00 EG
In stock
About this item

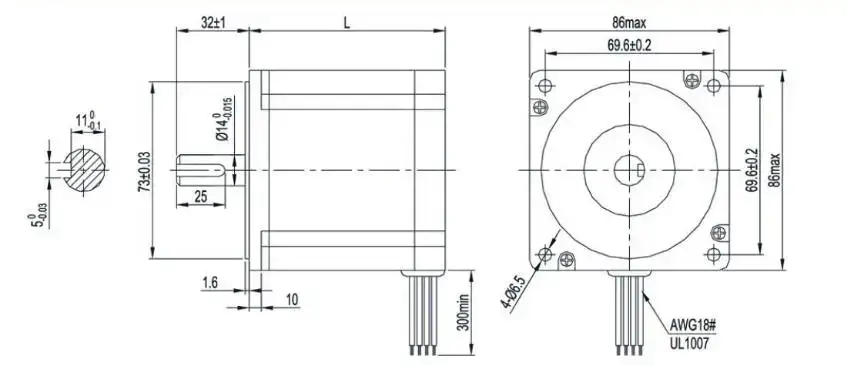

The 86BYGH80 is a two-phase bipolar hybrid motor with a 1.8° (200 steps per revolution) step angle and an 80 mm motor length. With a rated phase current of 4.5 A and phase resistance of approximately 0.5 Ω, it delivers strong torque for demanding applications. Standard 4‑lead bipolar wiring ensures compatibility with advanced microstepping drivers. The motor boasts insulation resistance of ≥ 100 MΩ at 500 VDC, dielectric strength of 500 VAC for 1 min, and is engineered for continuous use with a maximum temperature rise of 80 °C within an ambient range of –20 °C to +50 °C. A 14 mm shaft provides reliable mechanical coupling.
Total price 2,450.00 EG
Product Features
- Precise 1.8° (200 steps/rev) step angle (±5 %).
- Bipolar, two-phase 4‑lead configuration with microstepping ready.
- Rated current 4.5 A/phase, enabling a balance between torque and speed.
- Phase resistance around 0.5 Ω for efficient current control.
- High insulation integrity (≥100 MΩ at 500 VDC) and dielectric safety (500 VAC for 1 min).
- Designed for continuous operation with ≤80 °C temperature rise.
- Ambient temperature operating range from –20 °C to +50 °C.
Product Applications
- CNC milling and routing machines.
- 3D printers requiring high torque.
- Robotics and automation arms.
- Industrial conveyor and pick-and-place systems.
- Packaging and textile machines.
