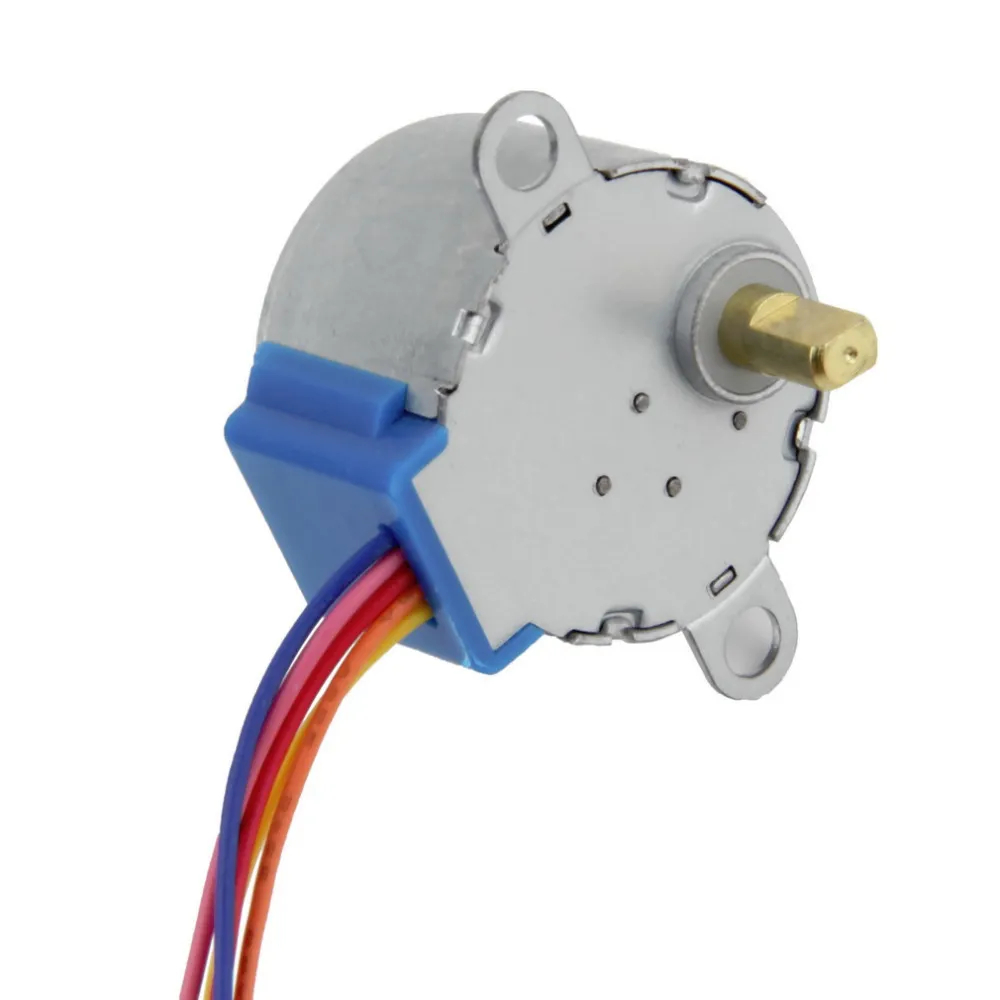

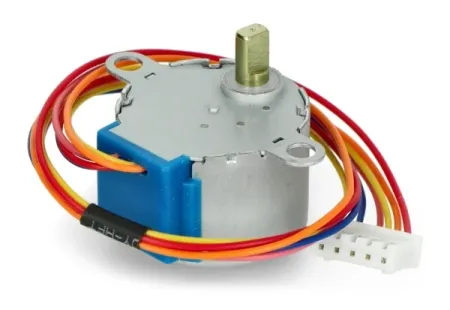

28BYJ-48 Stepper Motor 5VDC 0.1A 0.03Nm
Price 65.00 EG
In stock
About this item
Five-wire stepper motor. It has an integrated 64:1 gearbox. It is powered by 5 V and draws 100 mA per coil. The holding torque on the gearbox is 0.3 kg.cm (0.03 Nm). Product Description: Stepper motor with gear 28BYJ-48 5 V / 0.1 A / 0.03 Nm Five-wire stepper motor .It has an integrated 64:1 gearbox. It is powered by 5 V and draws 100 mA per coil. The holding torque after the gearbox is0.3 kg.cm (0.03 Nm).There is a 5 mm diameter shaft on the output.
Total price 65.00 EG
Product Features
- Rated voltage: 5 V
- Current draw per coil: 100 mA
- The gearing: 64:1
- Coil resistance: 50 Ω
- Gear output holding torque: 0.3 kg.cm (0.03 Nm).
- Leads: five wires
- Shaft diameter: 5 mm with cut-outs
- Weight: 35 g
- Distance between mounting holes: 35 mm
- Dimensions: ϕ28 x 19 mm (without shaft)
Product Applications
- Printers
- CNC equipment
- 3D printers
- Lasers
- Manipulators
