Micro Miniature Stepper Motor 8mm 2-Phase 4-Wire With Copper Gear For Camera Lenses
Price 25.00 EG
In stock
About this item

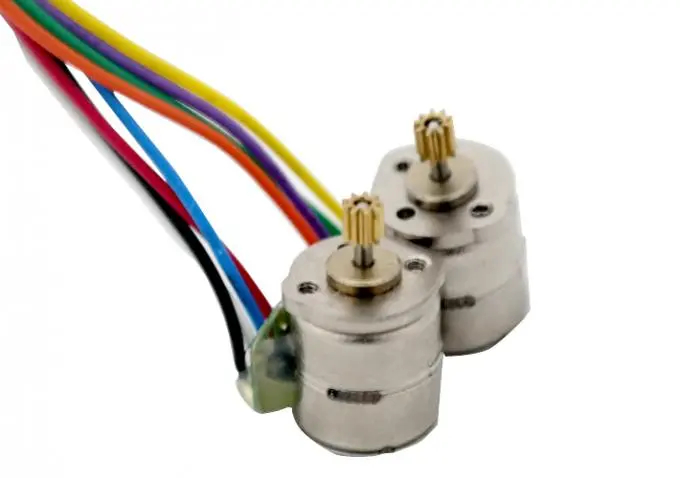

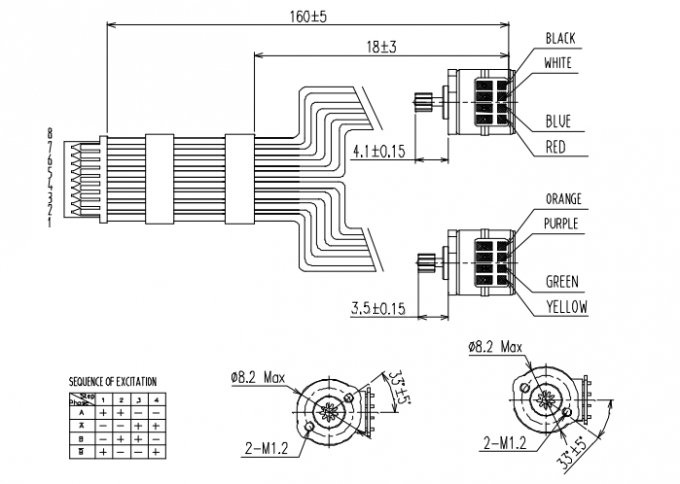

Micro stepper motor .It is 2 Phase 4 Wire minitarute stepper tiny motor, please check its dimension clearly, make sure if you can handle it.Use for Focusing camera normally, it is a precise parts. Rated Voltage : DC3.3V; Dia:8mm, Height: 9.2mm(not including the bearing sleeve) A set of two motor with wire , 2pcs motor incomon wire, if you do not like them together,you can cut the wire. The motor has a basic step angle of 18 degrees and the motor runs 20 steps per week. Because of its small size, high precision, and easy control, this miniature stepper motor is widely used in cameras, optical instruments, lenses, flashlights, precision medical equipment, automatic door locks and other fields.
Total price 25.00 EG
Product Features
- Rated Voltage 3.3V
- No. Of phase 2 Phases
- Step Angle 18 degree
- Excitation Method 2 Phase Excitation
- Drive Mode Bipolar Drive
- Pull-In Torque 5 gf.cm Min,No Load
- Pull-Out Torque – gf.cm Min
- Max. Response Frequency More Than 800 pps,No Load
- Max. Starting Frequency More Than 1000 pps,No Load
- Operating Temperature Range -10~+50 ℃
- Noise 50 dB Ref.
- Weight 6g(Ref.)
Product Applications
- Intelligent Security Products
- Camera Lenses
- Door Locks
- Wearable device
