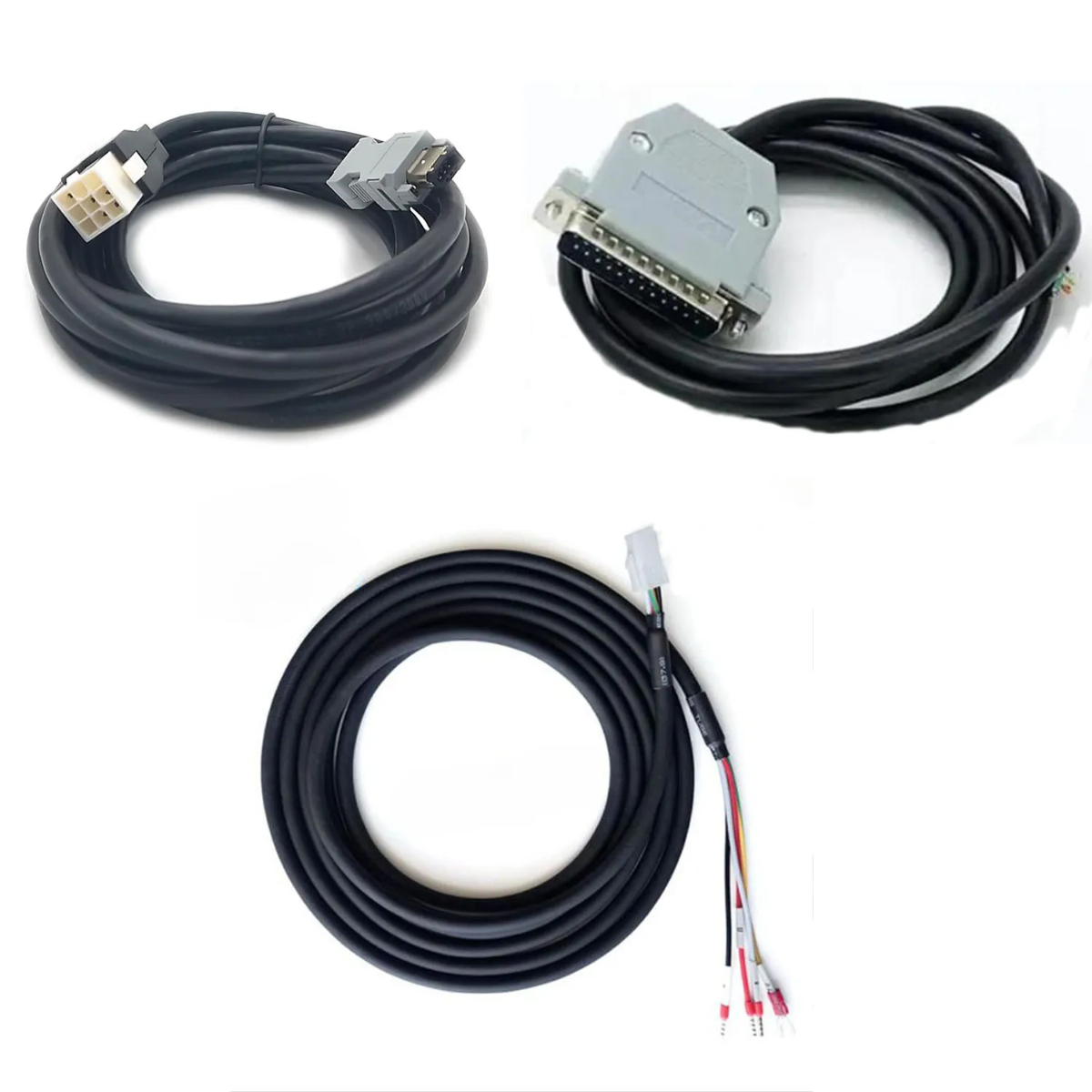

AC Servo Motor 80ST-CJ102430L5A-B 750W 2.4NM 220V with AC Servo Motor Driver Kit
Price 9,000.00 EG
In stock
About this item
The 80ST-CJ102430L5A-B is an 80mm flange AC servo motor rated at 0.75 kW (750 W) continuous power and 2.4 N·m rated torque. Its nameplate confirms a 220 VAC supply, a continuous current of 3.3 A, and a base speed of 3000 RPM (4-pole, 50/60Hz) under full load. This motor variant (A-B suffix) features an integrated 17-bit single-turn absolute encoder for high-resolution feedback, enabling precise position and speed control. The housing is IP65 rated (dust-tight and resistant to water jets), making it suitable for harsh industrial environments. A 24 V DC electromagnetic brake is built in (denoted by “B”), which can hold the load when power is off. The motor is constructed with high-grade permanent magnets and optimized magnetic design for low cogging, low acoustic noise, and excellent low-speed stability, as typical of modern synchronous AC servo motors.
Total price 9,000.00 EG
Product Features
- High Torque & Power 0.75 kW continuous power with 2.4 N·m rated torque (750W, 3.3A) at 3000 RPM.
- Robust Construction IP65-rated housing (dustproof/waterproof); compact 80 mm flange; insulation class F for durability
- Comprehensive Protection Over-voltage, under-voltage, over-current, over-speed, encoder error, and load monitoring functions built into the driver.
- Communication Interface RS-485 port (Modbus RTU) on driver enables digital communication/networking.
- Easy Configuration 5-digit LED display and panel buttons on driver for parameter tuning (gear ratio, gain, PID, etc.)
Product Applications
- CNC machine tools (mills, routers, lathes) requiring precise motion control.
- Industrial robots and automation systems (articulated arms, pick-and-place) using servo feedback.
- Packaging, printing, textile, and assembly machinery.
- Conveyor and indexing tables, printing presses, and winding machines.
