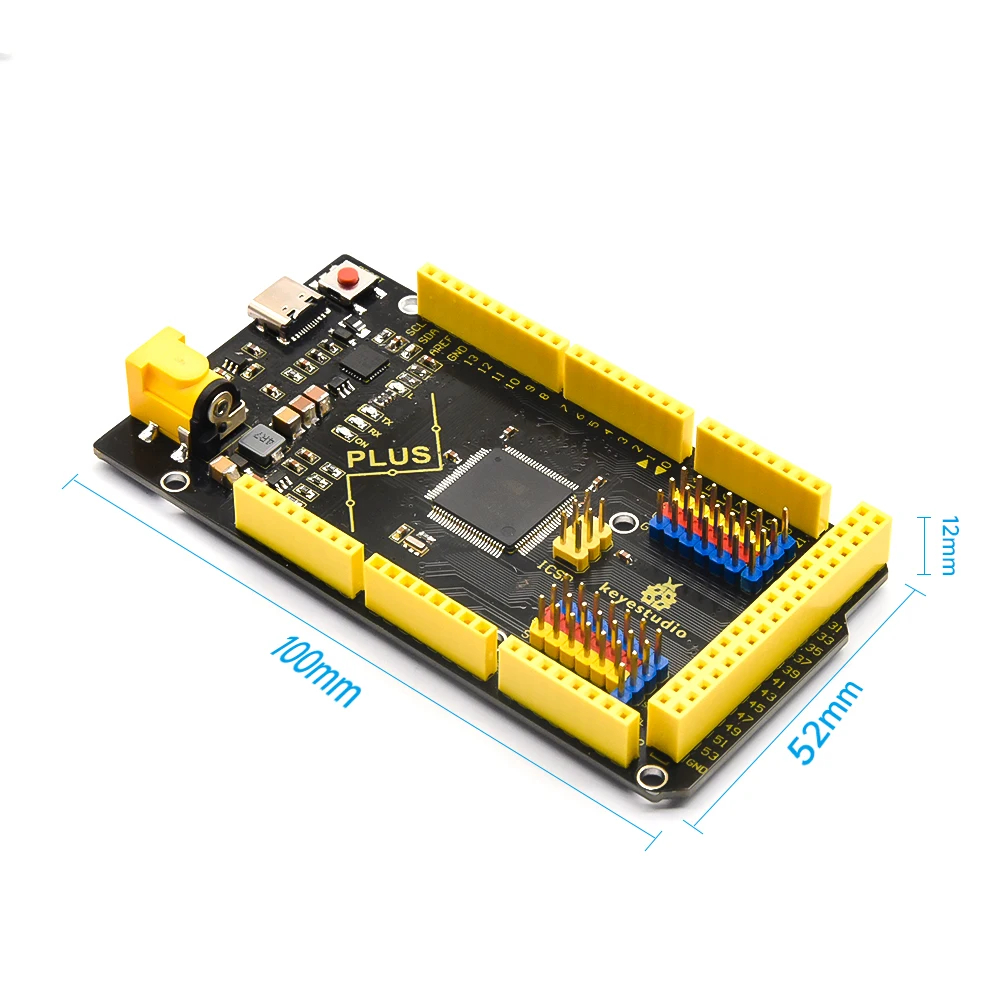

KS0499 KEYESTUDIO Mega Plus Development Board For Arduino MEGA 2560 REV3 with Type-C USB Connector
Price 2,200.00 EG
In stock
About this item

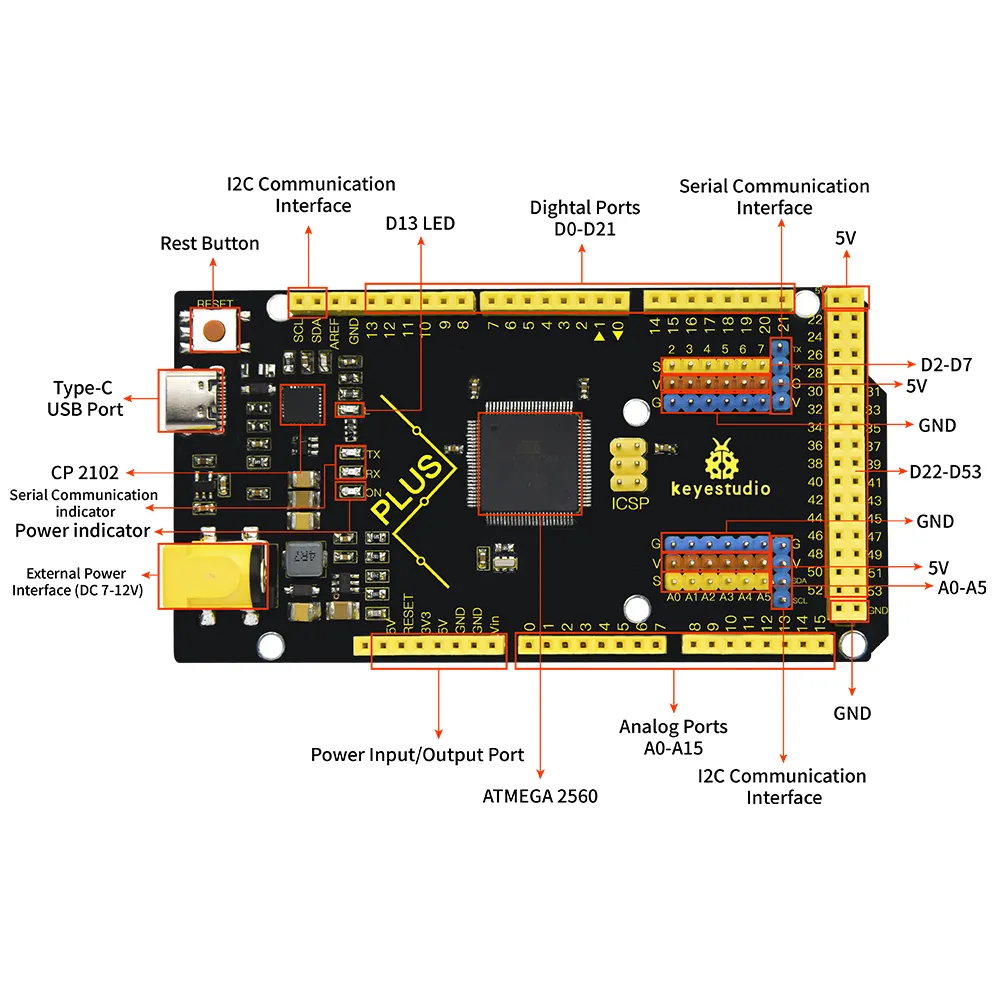

Compatible with ARDUINO MEGA 2560 REV3. USB to TTL chip adopts more economic and stable CP2012. consists of 54-channel digital input and output ports, of which 15 pins are served as PWM output, 16 analog inputs, 4 serial communication ports, one 16MHz crystal oscillator, 1 USB port, 1 power socket, 1 ICSP interface and 1 reset button.
Total price 2,200.00 EG
Product Features
- Microcontroller: ATMEGA2560-16AU
- USB to TTL chip：CP2102
- Operating Voltage: 5V
- Input Voltage (recommended):DC 7-12V
- Digital I/O Pins: 54 (D0-D53)
- PWM Digital I/O Pins：15(D2-D13 D44-D46)
- Analog Input Pins: 16(A0-A15)
- DC Current per I/O Pin: 20 mA
- DC Current for 3.3V Pin: 50 mA
- Flash Memory: 256 KB of which 8 KB used by bootloader
- SRAM: 8 KB
- EEPROM: 4 KB
- Clock Speed: 16 MHz
- LED_BUILTIN:D13
