UT5583

Price Updated soon

In stock

About this item

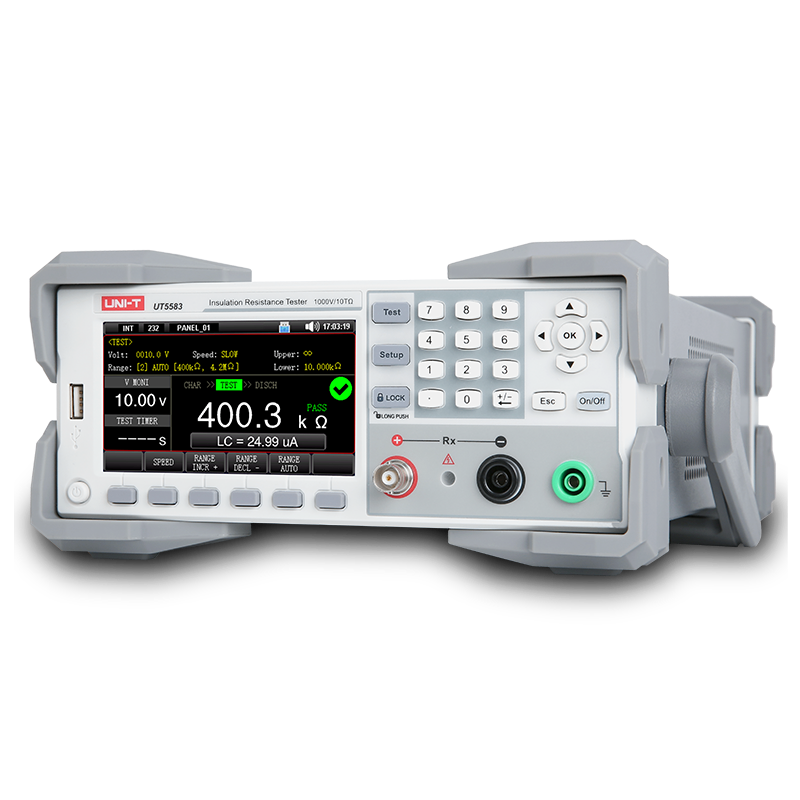

UT5583 Insulation Resistance Tester is a miniature desktop instrument with high performance and real-time detection. The instrument adopts a 4.3-inch true-color LCD display, a full digital keyboard, and a real-time operating system to make the display clearer and the operation more convenient. It can be used to measure the insulation resistance and leakage current of various electronic components, equipment, dielectric materials and wires and cables.

Product Features

  • Automatic sorting
  • Double test and double display
  • Open circuit calibration
  • Contact check

Specifications

TypeValue
TEST ITEMSIR, Leakage current
R RANGE10kΩ~10TΩ
MEASUREMENT SPEED33rdgs/s
VOLTAGE1V~1000V (DC)
R ACCURACY1%
DISPLAY4.3'' TFT LCD
