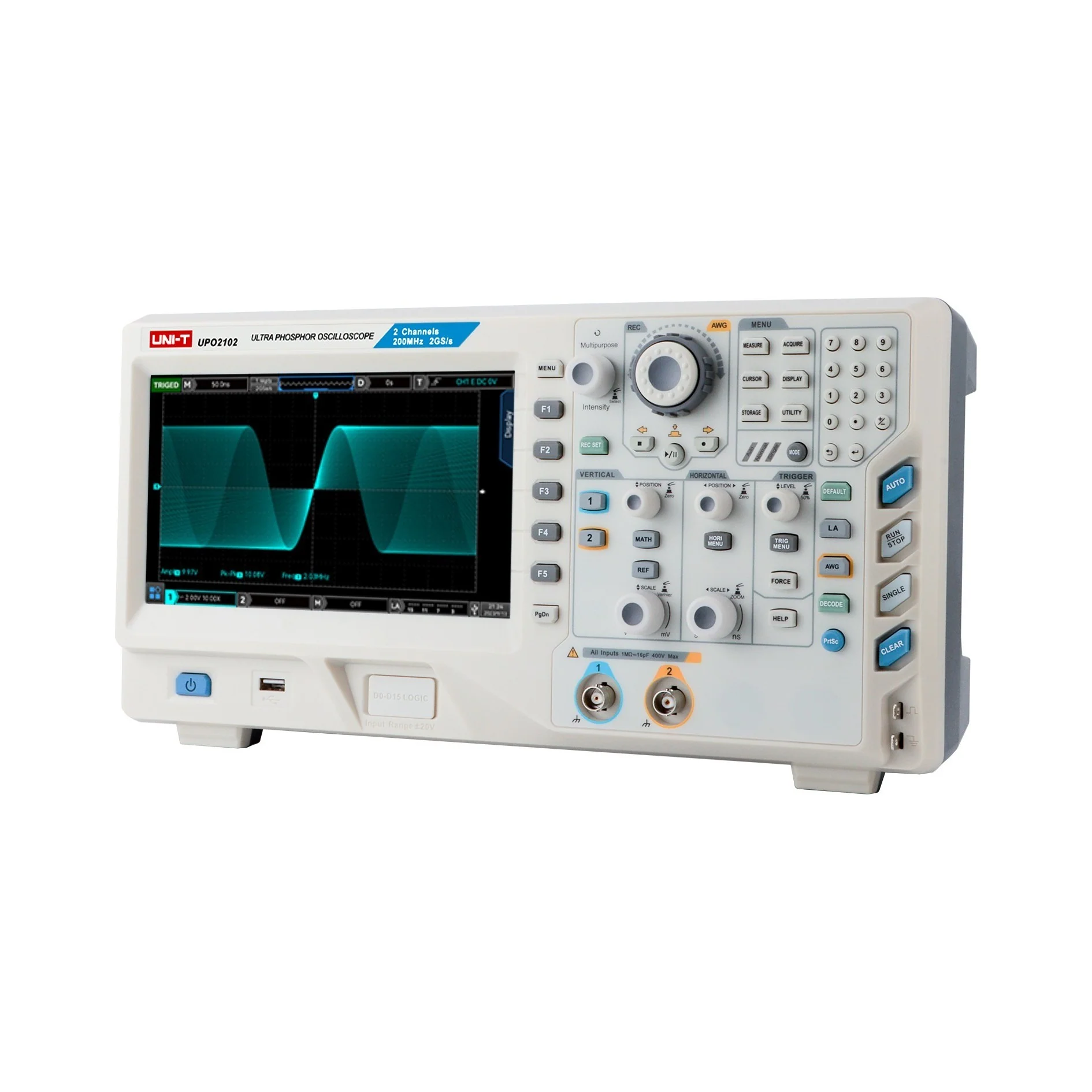

UPO2102 100MHz 2Ch Mixed Signal Oscilloscope (w/o Logic Pod)
Price Updated soon
In stock
About this item
The UNI-T UPO2102 is a high-performance digital oscilloscope designed for precise measurement and analysis in electronics testing. Featuring two analog channels with a 100MHz bandwidth and a real-time sampling rate of 2GSa/s, it offers a memory depth of 56Mpts per channel and a waveform capture rate of up to 1,000,000 waveforms per second in Fast Acquire mode. Its 8-inch capacitive touchscreen display supports intuitive gesture-based operations, enhancing user efficiency. With the optional UT-M15 logic probe, the UPO2102 can function as a mixed-signal oscilloscope (MSO), enabling simultaneous analysis of analog and digital signals. This versatility makes it ideal for applications in embedded systems, automotive electronics, and educational settings.
Product Features
- 100MHz bandwidth with 2 analog channels.
- Real-time sampling rate of 2GSa/s.
- Memory depth of 56Mpts per channel.
- Waveform capture rate up to 1,000,000 wfms/s.
- 8-inch TFT LCD capacitive touchscreen with 800×480 resolution.
- Comprehensive trigger functions: Edge, Pulse, Video, Slope, Runt, Over Amplitude.
- Pulse, Delay, Timeout, Duration, Setup/Hold, Nth Edge, Pattern, Area Trigger.
- Automatic measurement of 36 waveform parameters.
- Optional mixed-signal capability with UT-M15 logic prob.e

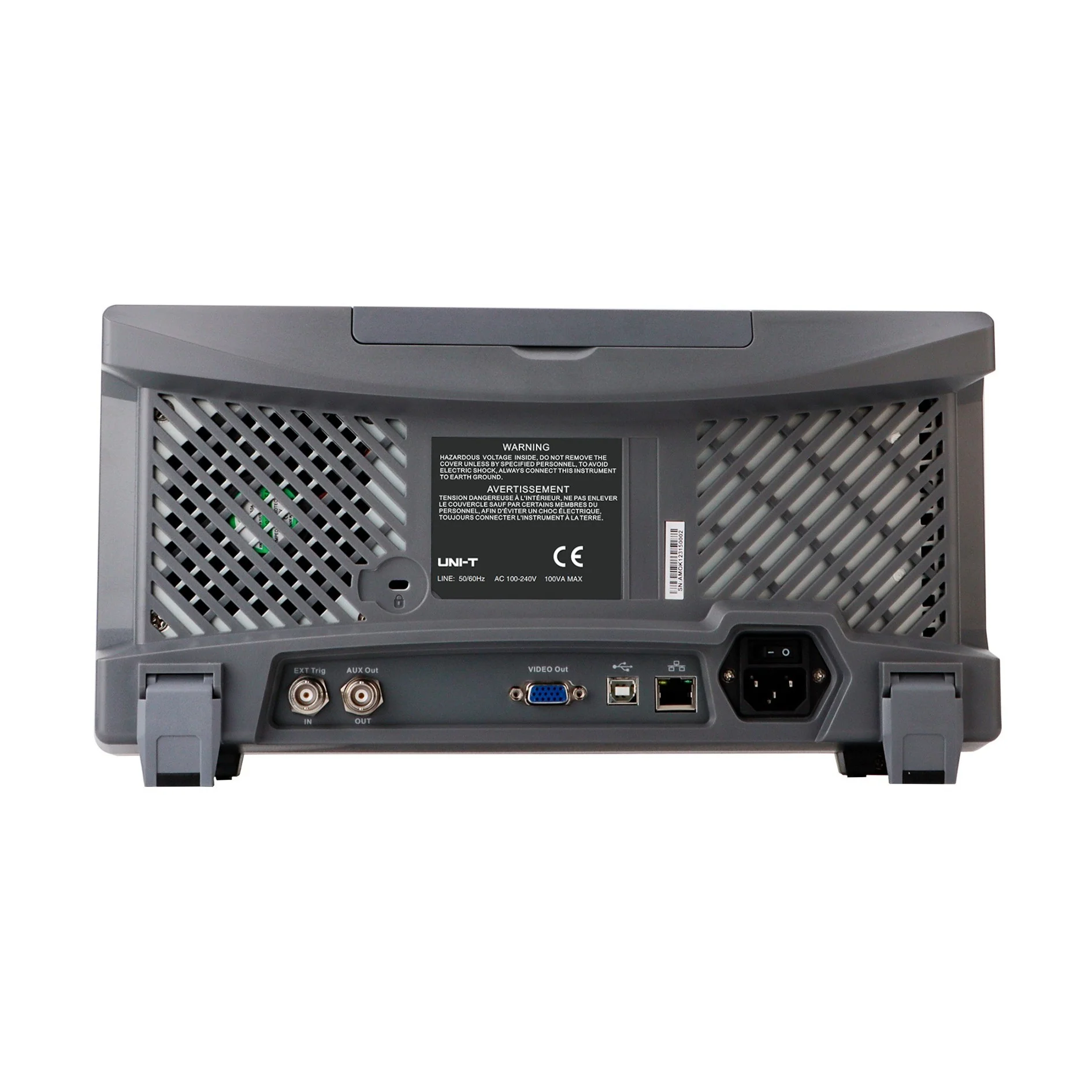

- Interfaces: USB Host, USB Device, LAN, EXT Trig, AUX Out (Trig Out, Pass/Fail),
- VGA.
Product Applications
- Debugging embedded systems with analog and digital signals.
- Analyzing power electronics, including waveforms and transients.
- Diagnosing automotive control systems.
- Educational laboratories and research projects.
- Monitoring and troubleshooting industrial automation systems.
