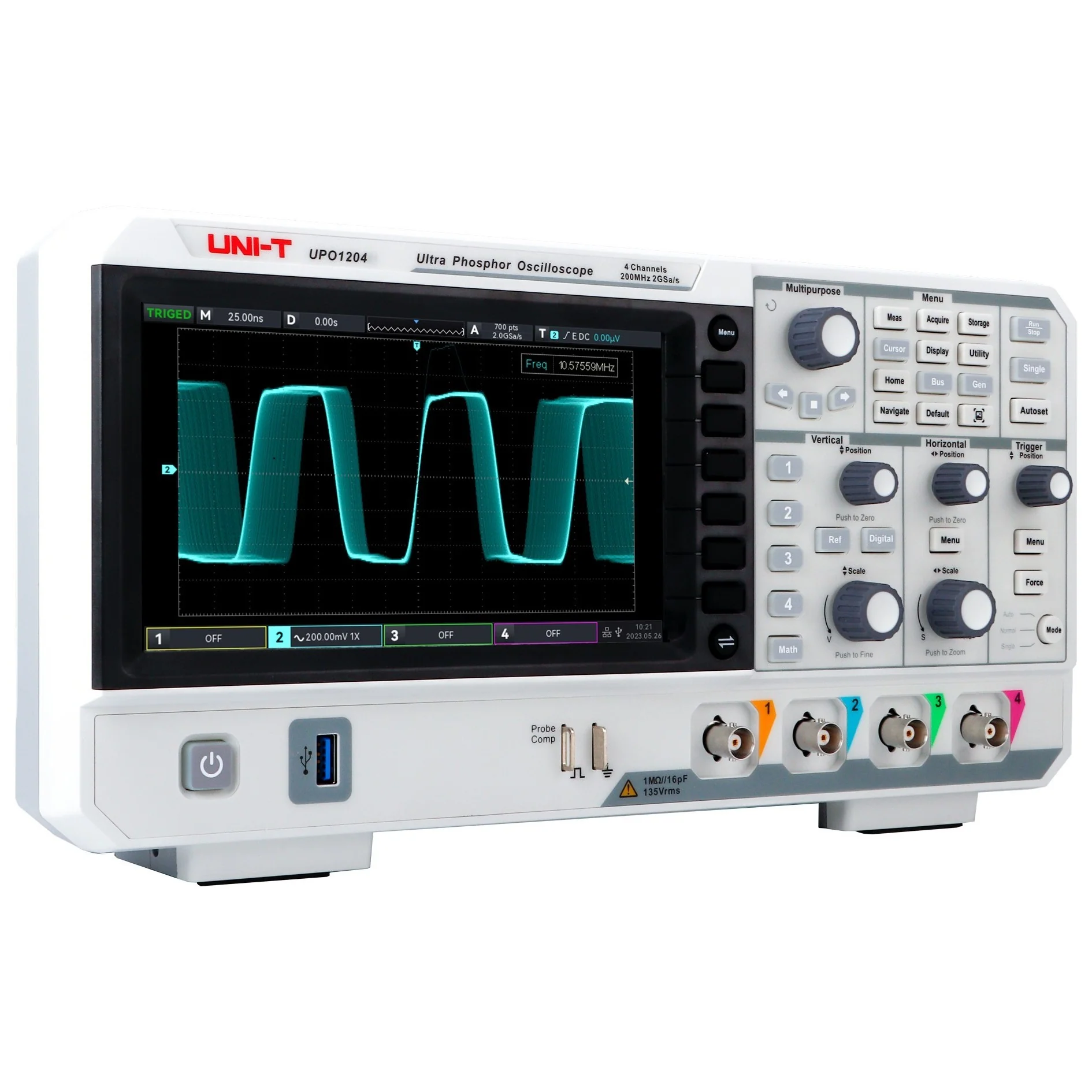

UPO1204 200MHz 4Ch Digital Storage Oscilloscope
Price Updated soon
In stock
About this item

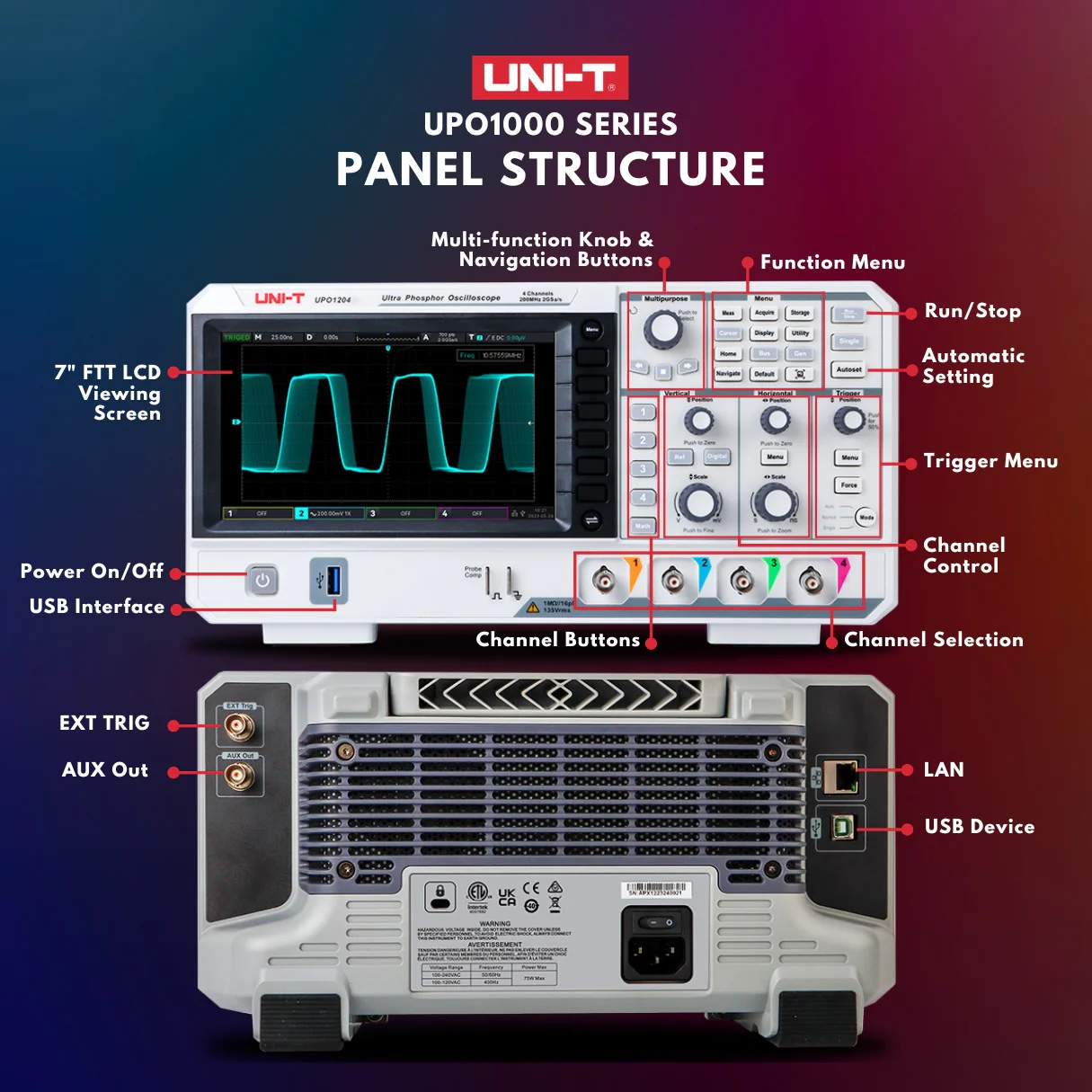

The UNI-T UPO1204 is a 4-channel digital phosphor oscilloscope designed for both bench and field use, combining a compact form factor with advanced deep-memory, real-time recording, and playback capabilities. It features UNI-T’s proprietary Ultra Phosphor 2.0 display, rendering up to 256-level grayscale to emphasize subtle waveform details over extended observation periods. With a 200 MHz analog bandwidth and real-time sampling up to 2 GSa/s, the UPO1204 captures fast transient events with fidelity, while its 56 Mpts maximum memory depth supports long acquisitions without compromising resolution. Hardware-based waveform recording can store up to 120,000 frames in real time, and a fast-acquire mode achieves up to 500,000 wfms/s to catch infrequent anomalies. The instrument’s intuitive user interface, featuring a 7-inch WVGA (800 × 480) TFT LCD, multipurpose knobs, and dedicated trigger controls, simplifies navigation through measurement menus. A built-in digital voltmeter (DVM) module provides asynchronous AC/DC TRMS readings, and a 7-digit frequency counter enables precise frequency analysis. Protocol triggers and full-memory RS232, I²C, and SPI decoding streamline debugging of embedded systems. Internet connectivity via LAN and a Web server allow remote control and waveform sharing. Together, these capabilities make the UPO1204 a versatile tool for electronics design, diagnostics, and education.
Product Features
- 4 analog input channels with a 200 MHz bandwidth (others: 100 MHz, 50 MHz).
- Real-time sampling up to 2 GSa/s (single channel), 1 GSa/s (dual), 500 MSa/s (four).
- 56 Mpts maximum memory depth.
- Waveform capture rate up to 500,000 wfms/s (Fast Acquire).
- Hardware real-time waveform recording and playback (up to 120,000 frames).
- 256-level grayscale “Ultra Phosphor” display for enhanced visibility of intermittent events.
- 36 automatic waveform parameters (voltage, time, and derived measurements).
- 7-digit hardware frequency counter.
- Built-in DVM with AC/DC TRMS measurement.
- Math functions: A ± B, A × B, A ÷ B, FFT (1 Mpt), digital filters, logical and advanced operations.
- Multiple trigger types: edge, pulse width, video, slope, runt, over-amplitude, delay, timeout, duration, setup/hold, Nth edge, code pattern.
- Serial-bus triggering and full-memory RS232, I²C, SPI decoding.
- Web-based remote control via built-in HTTP server.
- 7 in., 800 × 480 WVGA TFT LCD with vector/point display modes.

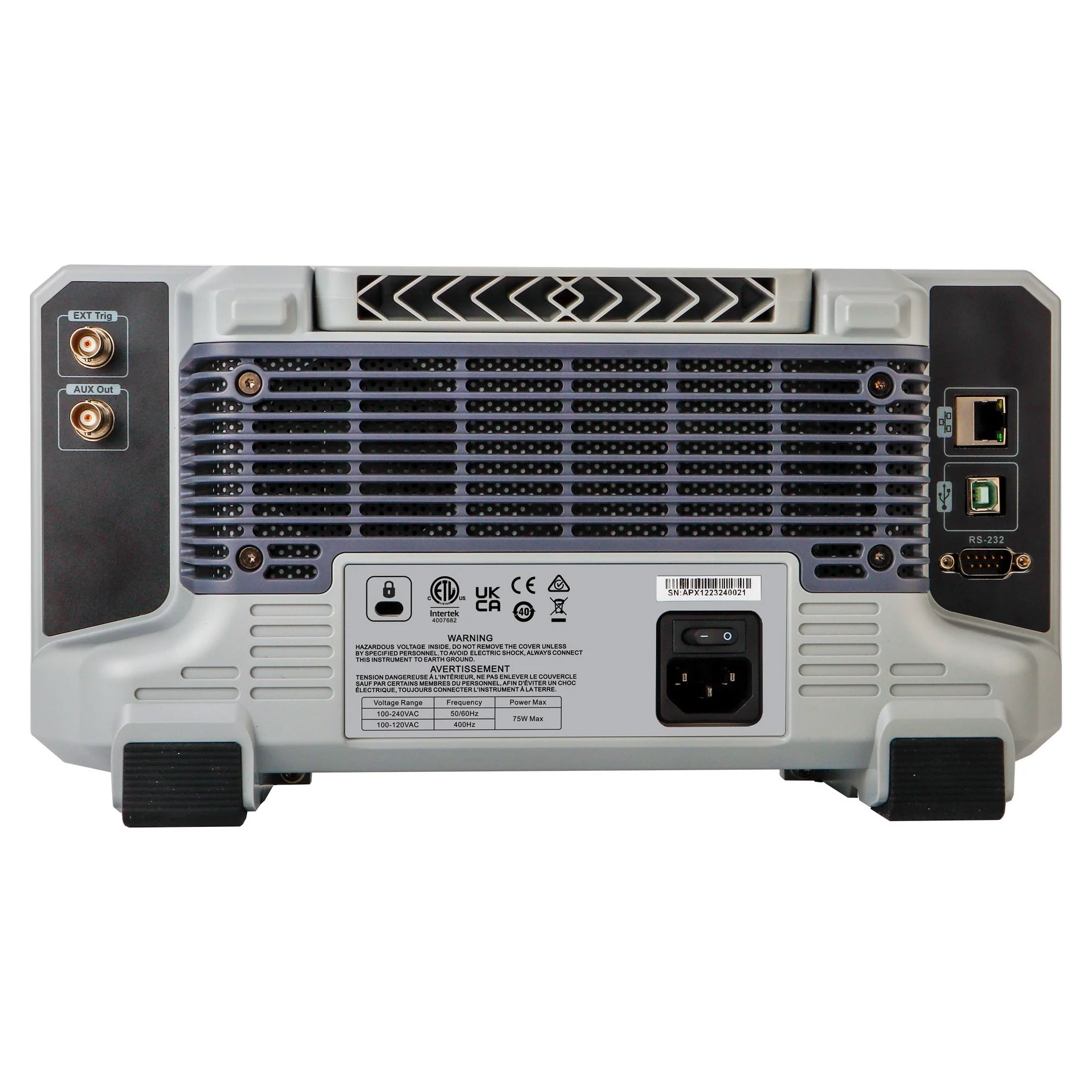

- USB Host/Device, LAN, EXT Trig, AUX Out interfaces.
Product Applications
- Communication.
- Semiconductor.
- Computer.
- IC Design.
- Instrumentation.
- Industrial Electronics.
- Consumer Electronics.
- Automotive Electronics.
- Field Maintenance.
- R&D/Education.
