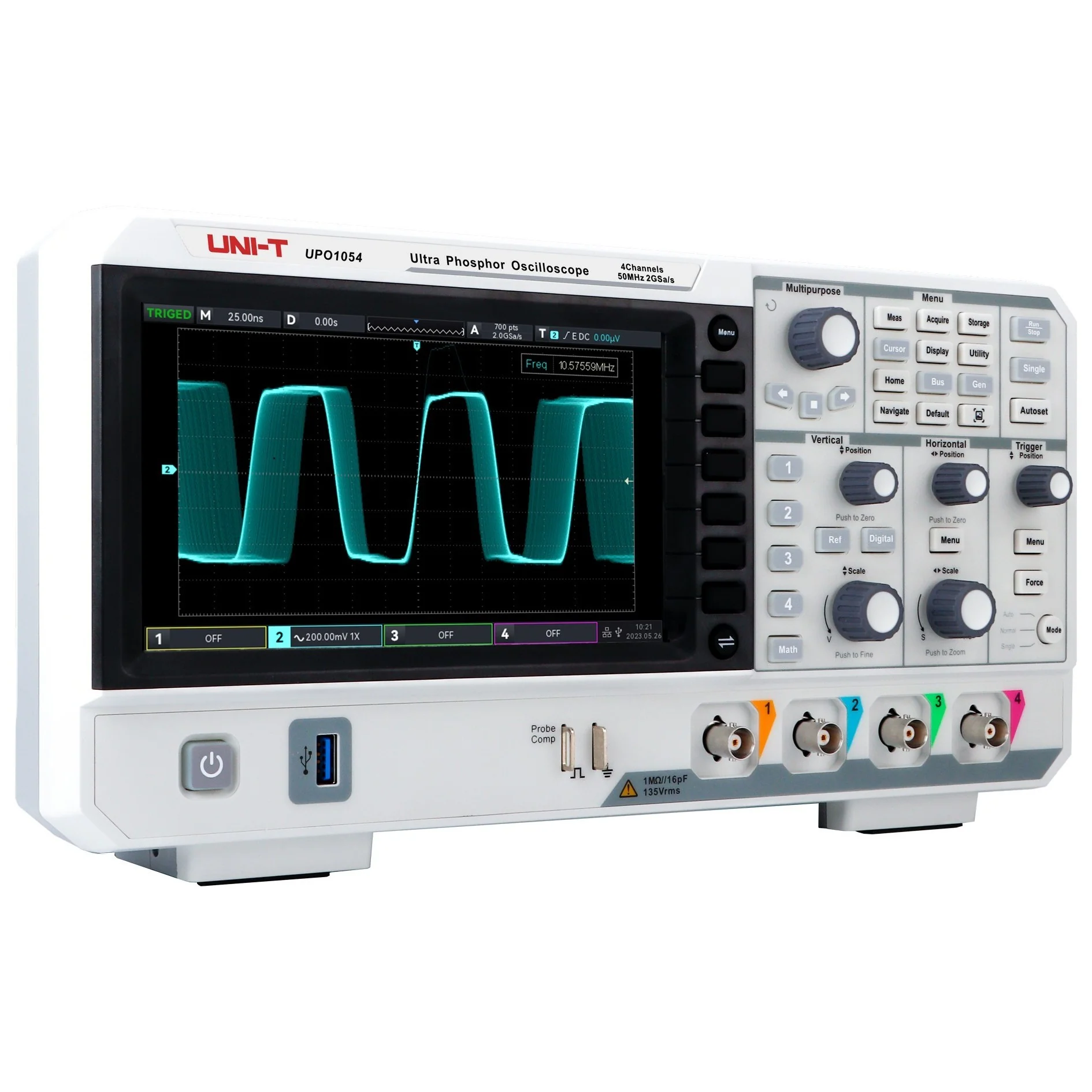

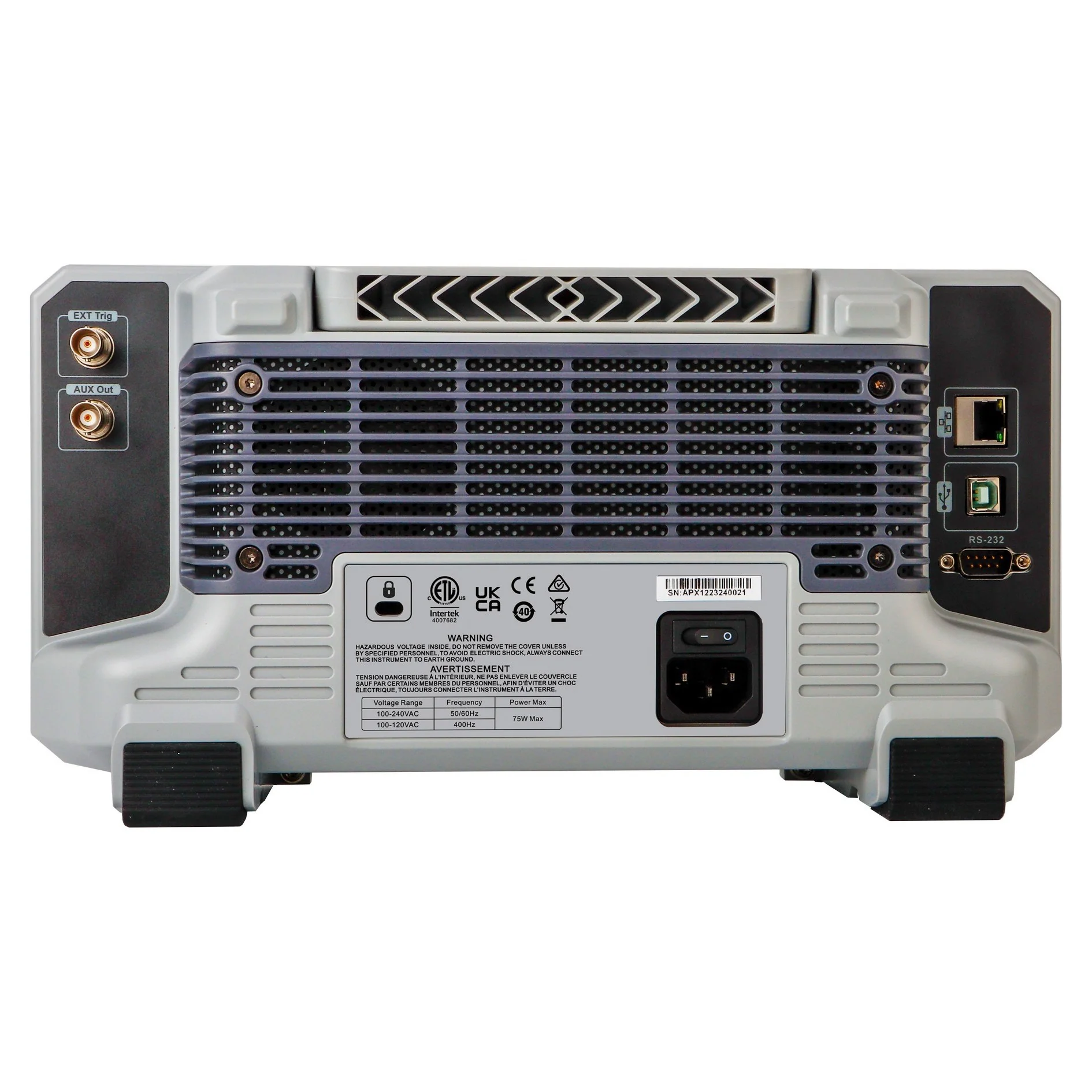

UPO1054 50MHz 4Ch Digital Storage Oscilloscope
Price Updated soon
In stock
About this item
The UNI-T UPO1054 is a 4-channel, 50 MHz digital phosphor oscilloscope engineered for versatile bench and field applications. Employing UNI-T’s Ultra Phosphor 2.0 technology, it delivers a 256-level grayscale display that accentuates fleeting waveform details, facilitating accurate observation of transient events. With a real-time sampling rate up to 2 GSa/s and a maximum memory depth of 56 Mpts, the UPO1054 captures high-resolution signals over extended time spans. In Fast Acquire mode, it achieves up to 500,000 wfms/s, ensuring even rare anomalies are caught. Its hardware-based recording can store up to 120,000 consecutive waveform frames for later playback and analysis. An intuitive 7-inch WVGA (800 × 480) TFT LCD provides clear visualization, while dedicated knobs and softkeys streamline navigation through menus. The built-in DVM module offers precise AC/DC TRMS voltage measurements, and a 7-digit frequency counter supports exact frequency analysis. Comprehensive trigger options including edge, pulse width, video, slope, and serial-bus triggers with RS232, I²C, and SPI decoding simplify embedded-system debugging. Remote access is enabled via an integrated LAN port and web server, allowing users to control the oscilloscope and share waveforms over a network. These features make the UPO1054 a powerful tool for electronics design, diagnostics, and education.

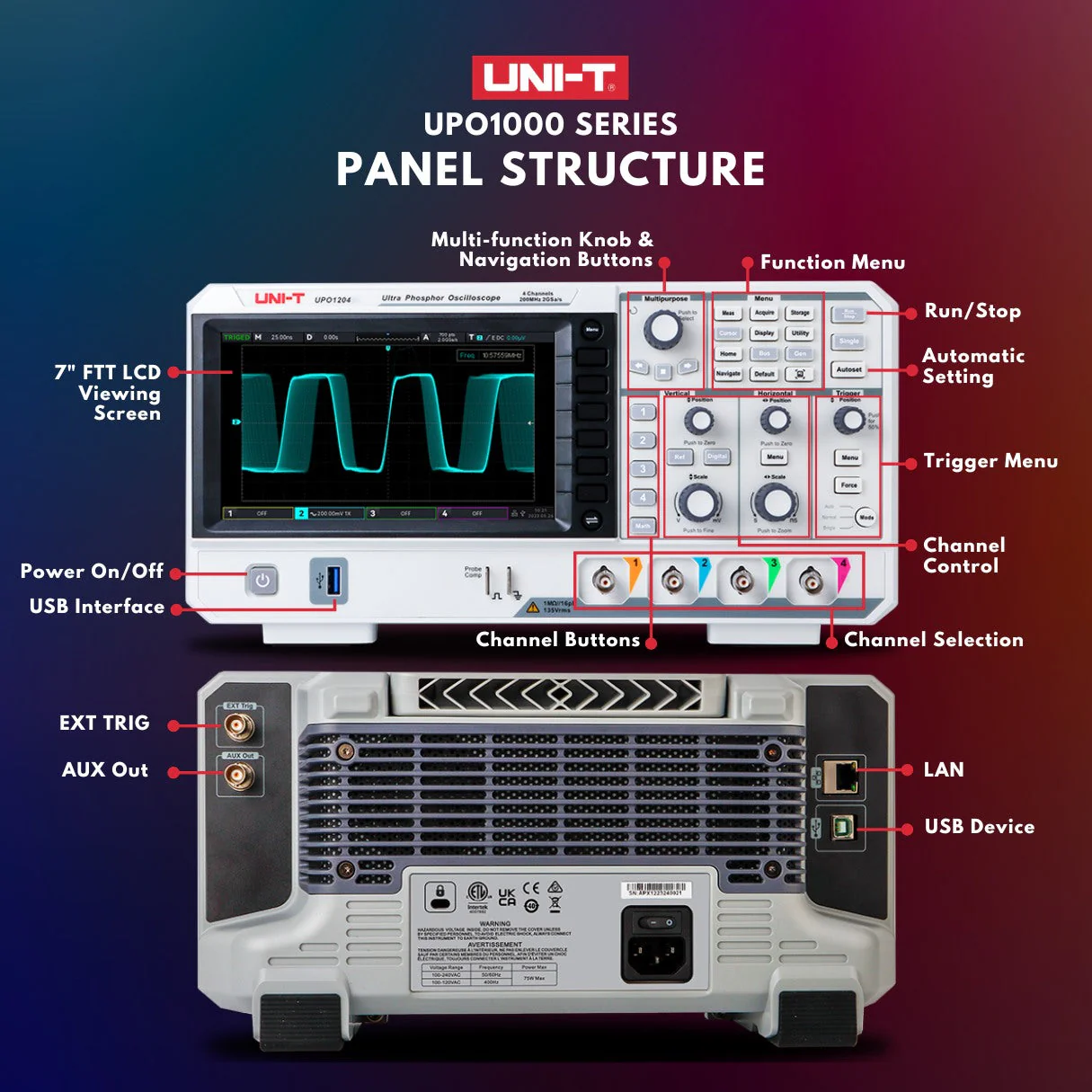

Product Features
- 4 analog input channels with 50 MHz bandwidth.
- Real‐time sampling up to 2 GSa/s (single), 1 GSa/s (dual), 500 MSa/s (four).
- Maximum memory depth of 56 Mpts.
- Waveform capture rate up to 500,000 wfms/s (Fast Acquire).
- Hardware real-time recording and playback up to 120,000 frames.
- Ultra Phosphor 2.0 display with 256-level grayscale.
- Automatic measurement of 36 waveform parameters.
- 7-digit hardware frequency counter.
- Built-in DVM with AC/DC TRMS measurements.
- Math functions: A ± B, A × B, A ÷ B, FFT (1 Mpt), digital filters, logical and advanced operations.
- Multiple trigger types: edge, pulse width, video, slope, runt, over-amplitude, delay, timeout, duration, setup/hold, Nth edge, code pattern.
- Serial-bus triggering and full-memory RS232, I²C, SPI decoding.
- Web-based remote control via built-in HTTP server.
Product Applications
- Communication.
- Semiconductor.
- Computer.
- IC Design.
- Instrumentation.
- Industrial Electronics.
- Consumer Electronics.
- Automotive Electronics.
- Field Maintenance.
- R&D/Education.
