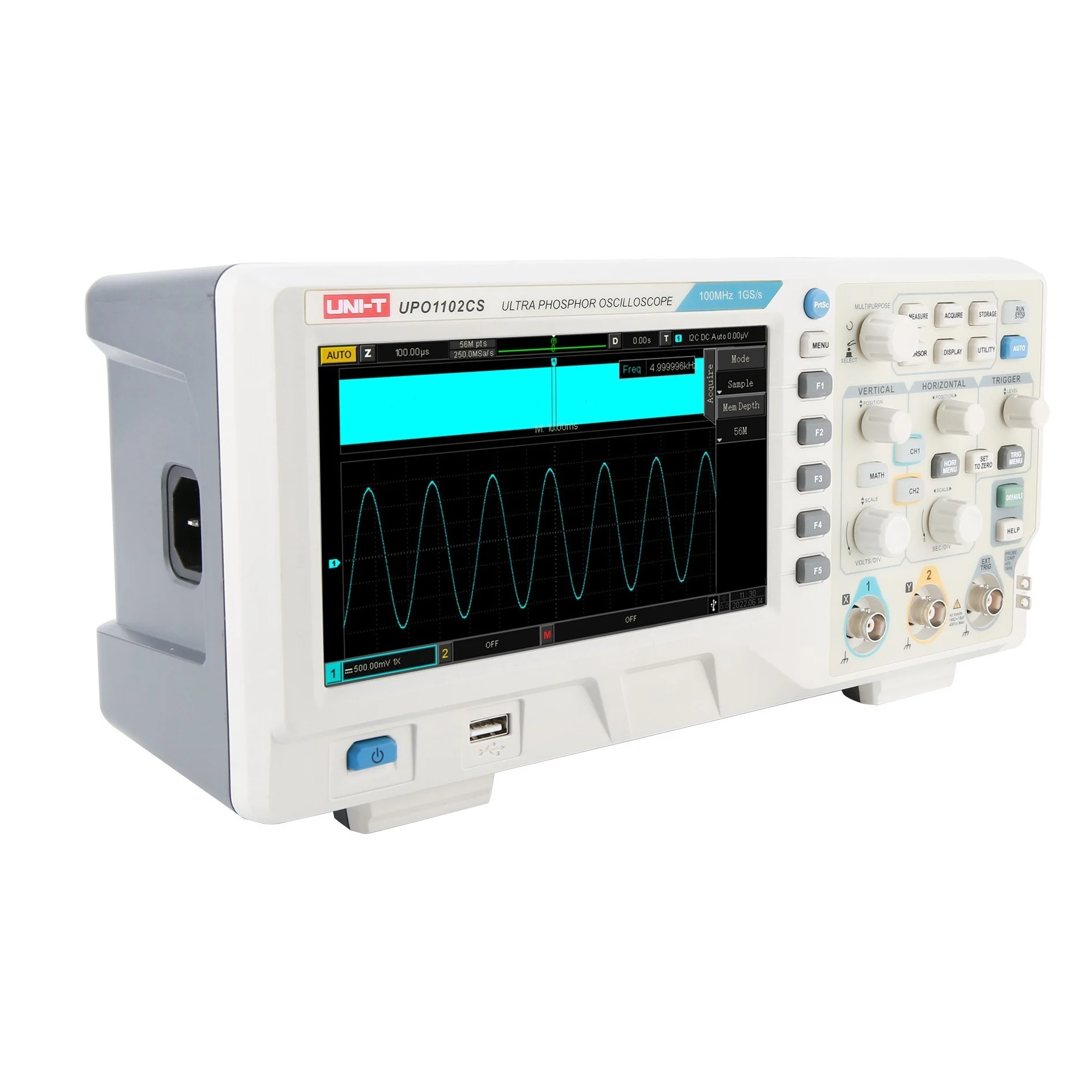

UPO1102CS 100MHz 2Ch Digital Storage Oscilloscope
Price Updated soon
In stock
About this item
The UNI‐T UPO1102CS is a 2‐channel, 100 MHz digital phosphor oscilloscope engineered for cost‐effective yet high‐performance waveform capture. Utilizing UNI-T’s Ultra Phosphor technology, it displays up to 256 levels of grayscale, revealing subtle transient details over extended observation periods. Each channel samples independently at 1 GSa/s (non‐interleaved) into a deep 56 Mpts record, enabling high‐resolution acquisitions over long time bases. In Fast Acquire mode, the UPO1102CS captures up to 500 k wfms/s, ensuring rare anomalies are reliably recorded. Hardware‐based real‐time waveform recording can store up to 100,000 consecutive frames for later playback and analysis. Its 7-inch, 800 × 480-pixel TFT LCD affords clear, intuitive visualization, and front‐panel knobs plus softkeys streamline navigation. Triggering includes edge, pulse width, video, slope, runt, over‐amplitude, delay, timeout, duration, setup/hold, Nth-edge, and pattern, while on-board hardware decoding supports RS232, I²C, SPI, CAN, and LIN buses. A dual-channel DVM provides AC/DC TRMS measurements, and a 7-digit hardware frequency counter facilitates precise frequency analysis. An enhanced 1 M-point FFT with markers enables comprehensive frequency‐domain inspection. Connectivity via USB Host/Device, LAN, EXT Trig, and AUX Out (Trig Out/Pass/Fail) plus an integrated web server enables remote control and waveform sharing. Its blend of performance, deep memory, and versatile triggering makes the UPO1102CS ideal for electronics development, debugging, field maintenance, and education.
Product Features
- 2 analog input channels with 100 MHz bandwidth.
- Independent real-time sampling at 1 GSa/s per channel.
- 56 Mpts memory depth per channel.
- Fast Acquire capture rate up to 500,000 wfms/s.
- Hardware real-time waveform recording up to 100,000 frames.
- Ultra Phosphor display with 256-level grayscale.
- 7-digit hardware frequency counter.
- Dual-channel DVM with AC/DC TRMS measurement.
- Enhanced 1 M-point FFT with markers and multiple detection modes.
- Rich trigger suite: edge, pulse width, video, slope, runt, over-amp, delay, timeout, duration, setup/hold, Nth edge, pattern.
- Serial-bus triggering and hardware decoding: RS232, I²C, SPI, CAN, LIN.
- Multi-Scopes mode for independent dual-channel trigger display.

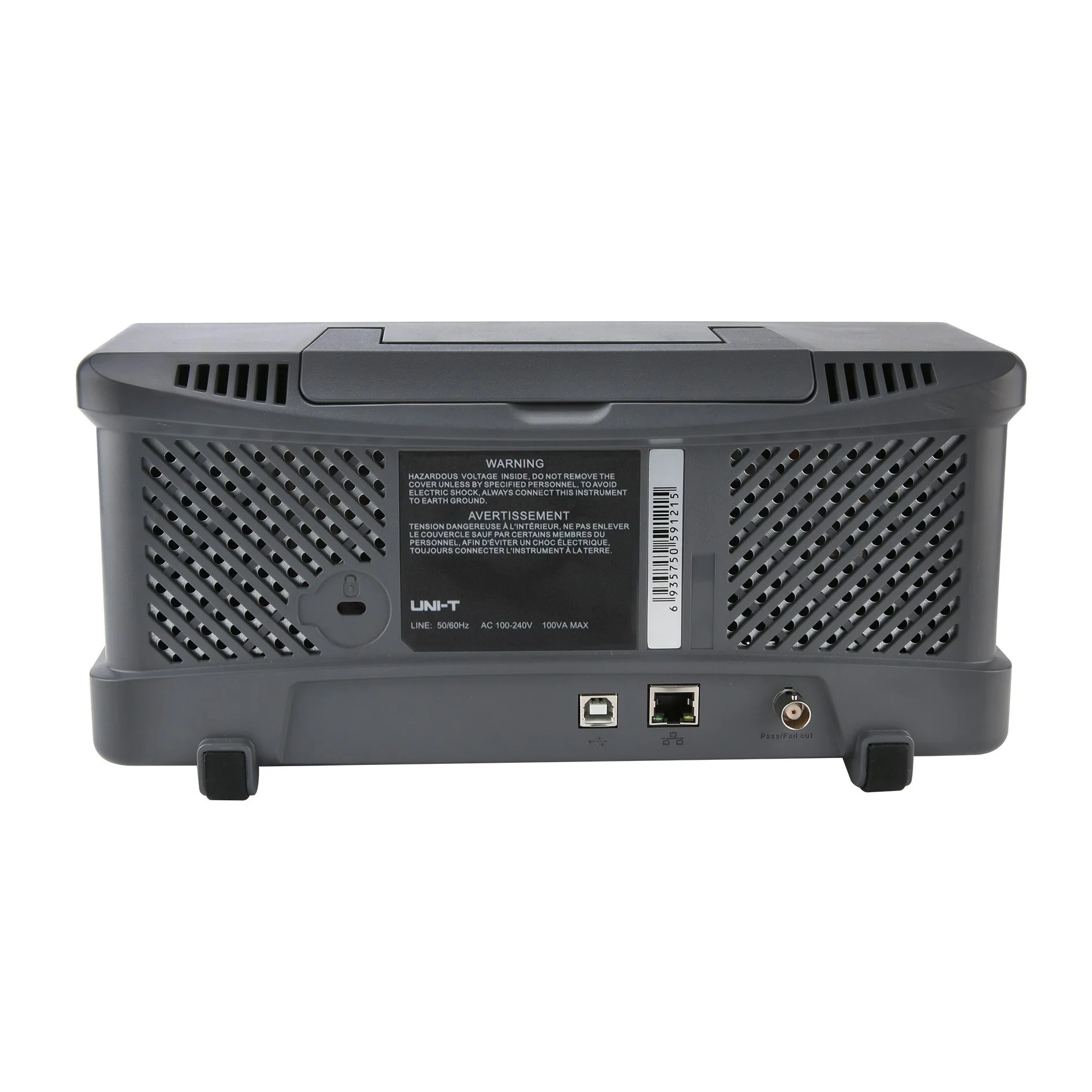

- Multiple interfaces: USB Host, USB Device, LAN, EXT Trig, AUX Out (Trig Out/Pass/Fail).
- Web-based remote control via built-in HTTP server.
Product Applications
- Communications.
- Semiconductors.
- Computers.
- Meter & Instruments.
- Aerospace & Defense.
- Instrumentation.
- Industrial Electronics.
- Consumer Electronics.
- Automotive Electronics.
- Field Maintenance.
- R&D & Education.
