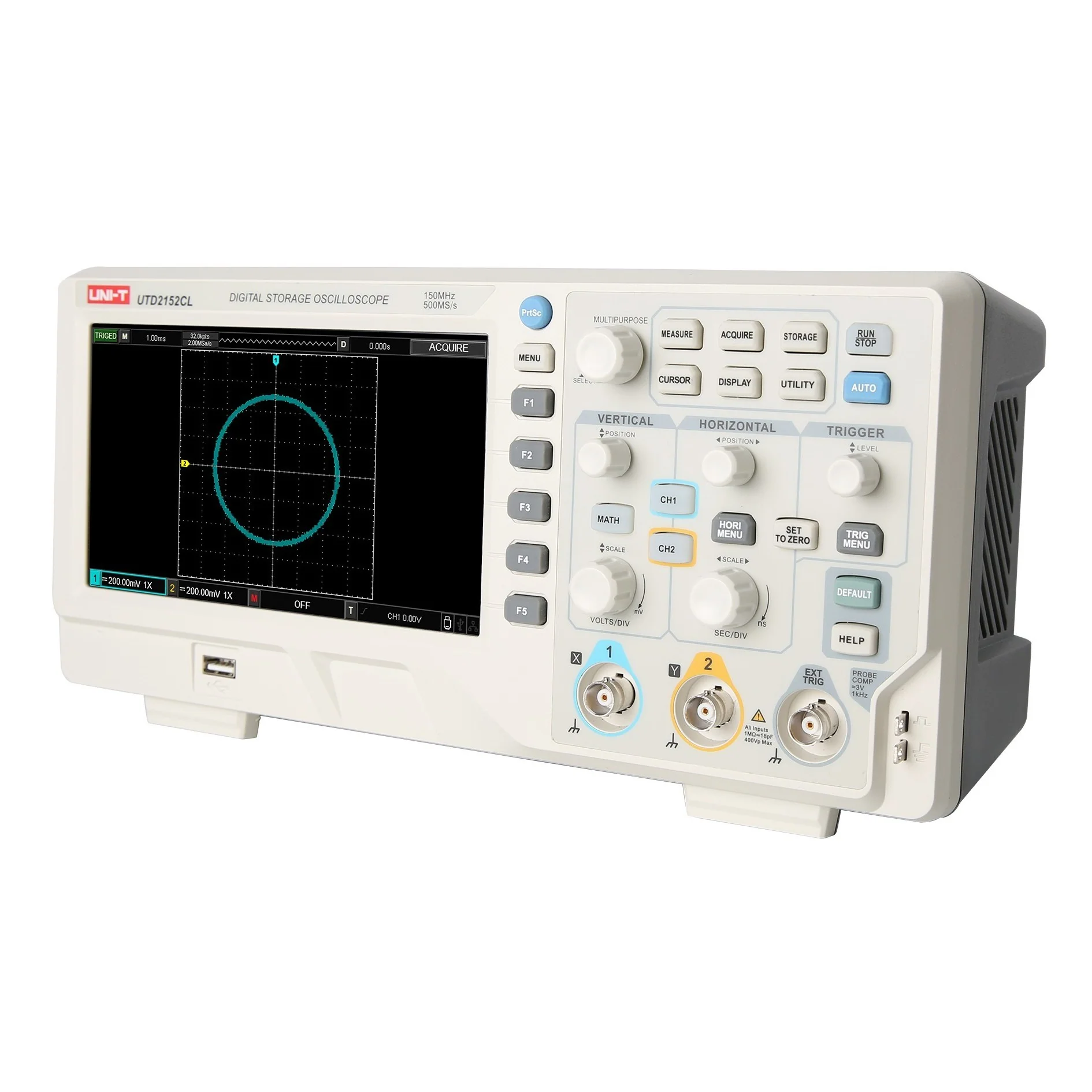

UTD2152CL 150MHz 2Ch Digital Storage Oscilloscope

Price 12,096.00 EG

About this item

150 MHz analog bandwidth and two analog channel inputs
Maximum real-time sample rate of 500 MSa/s
Maximum memory depth of 64k points
Maximum waveform capture rate of 5000 wfms/s
Vertical scale: 1 mV/div to 20 V/div
Equipped with a variety of trigger options like Edge, Pulse Width, Video, Slope, and Alternating Trigger, the Uni-T UTD2152CL Digital Storage Oscilloscope ensures precise signal capturing tailored to your specific needs
The Zoom function on its expansive 7-inch screen offers dual display capabilities, providing a comprehensive view of both the overall and specific sections of waveforms, crucial for intricate signal analysis

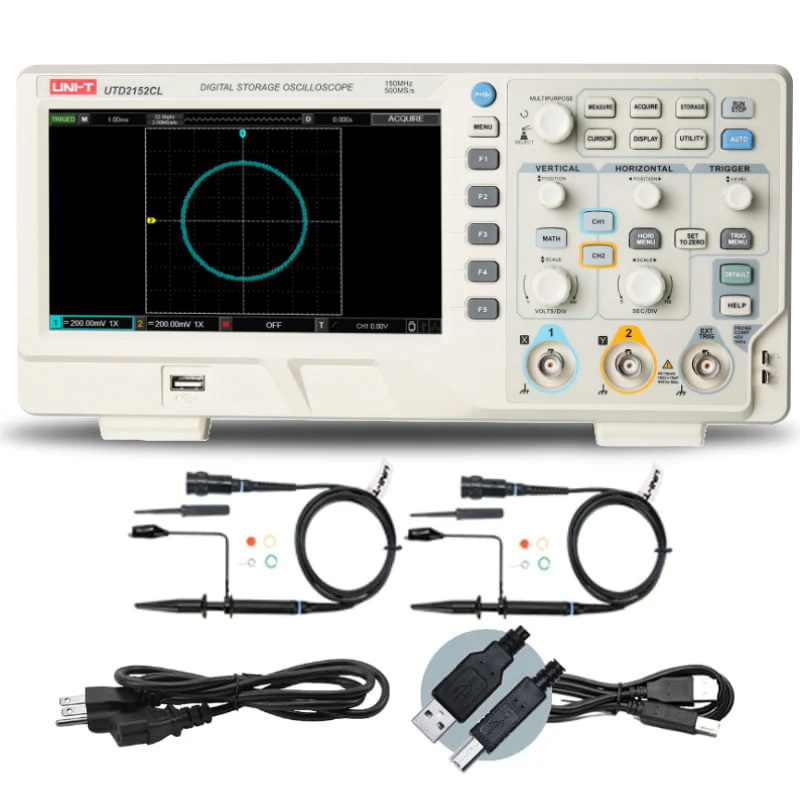

The XY mode (Lissajous graphics mode) is a highlight, offering quick and accurate measurement of phase differences between signals
With the simple press of the AUTO button, the Uni-T UTD2152CL Digital Storage Oscilloscope automatically adjusts the vertical scale, horizontal time base, and trigger mode based on input signals.
The Math function in the Uni-T UTD2152CL Digital Storage Oscilloscope (DSO) goes beyond basic operations, allowing for intricate waveform analysis crucial for high-level electrical engineering work and academic research
Automatic measurement of 34 waveform parameters

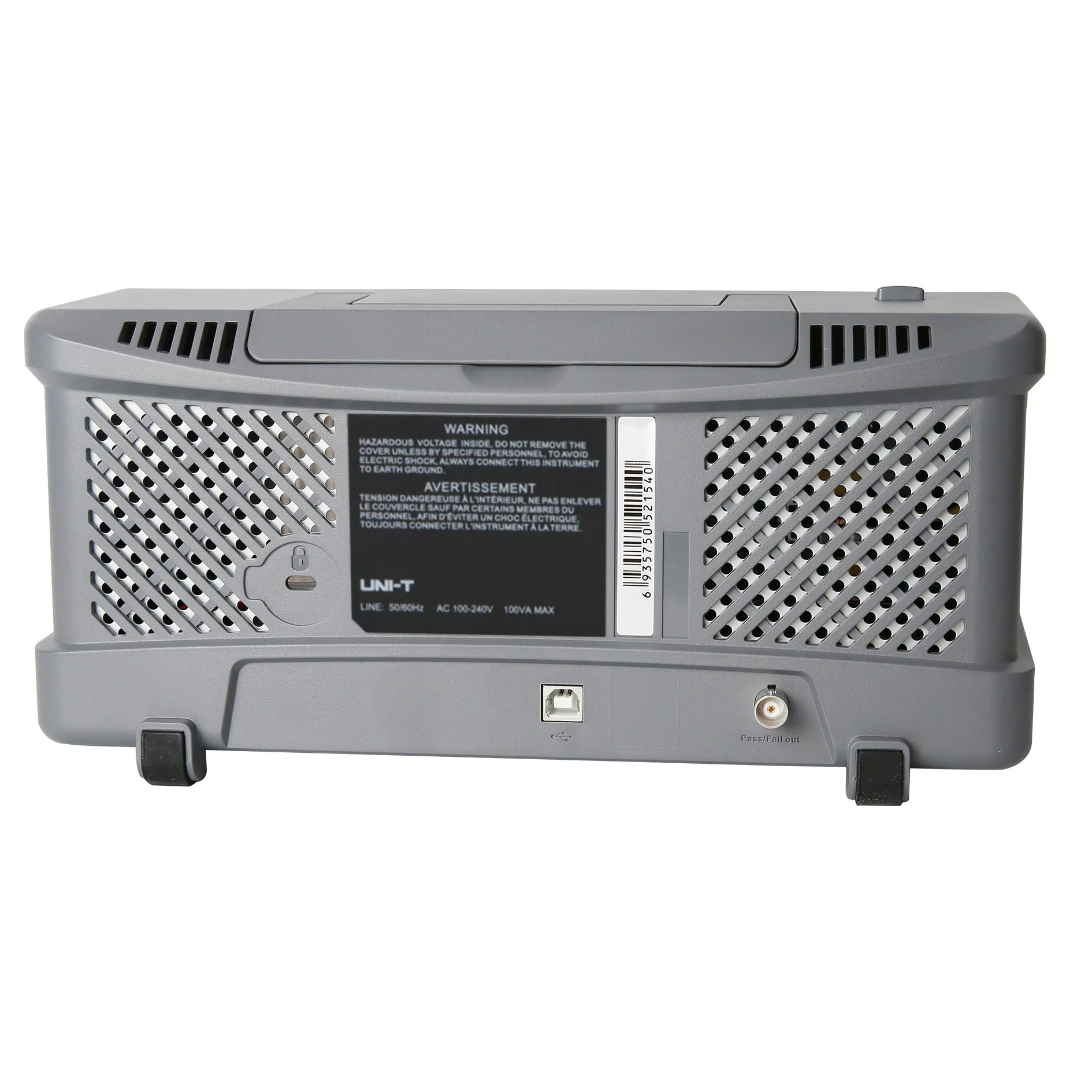

Interface: USB Host/Device, Pass Test Output (BNC)
7″ (17.8 cm) screen, 800×480
Certifications: cETLus, CE, RoHS, UKCA
